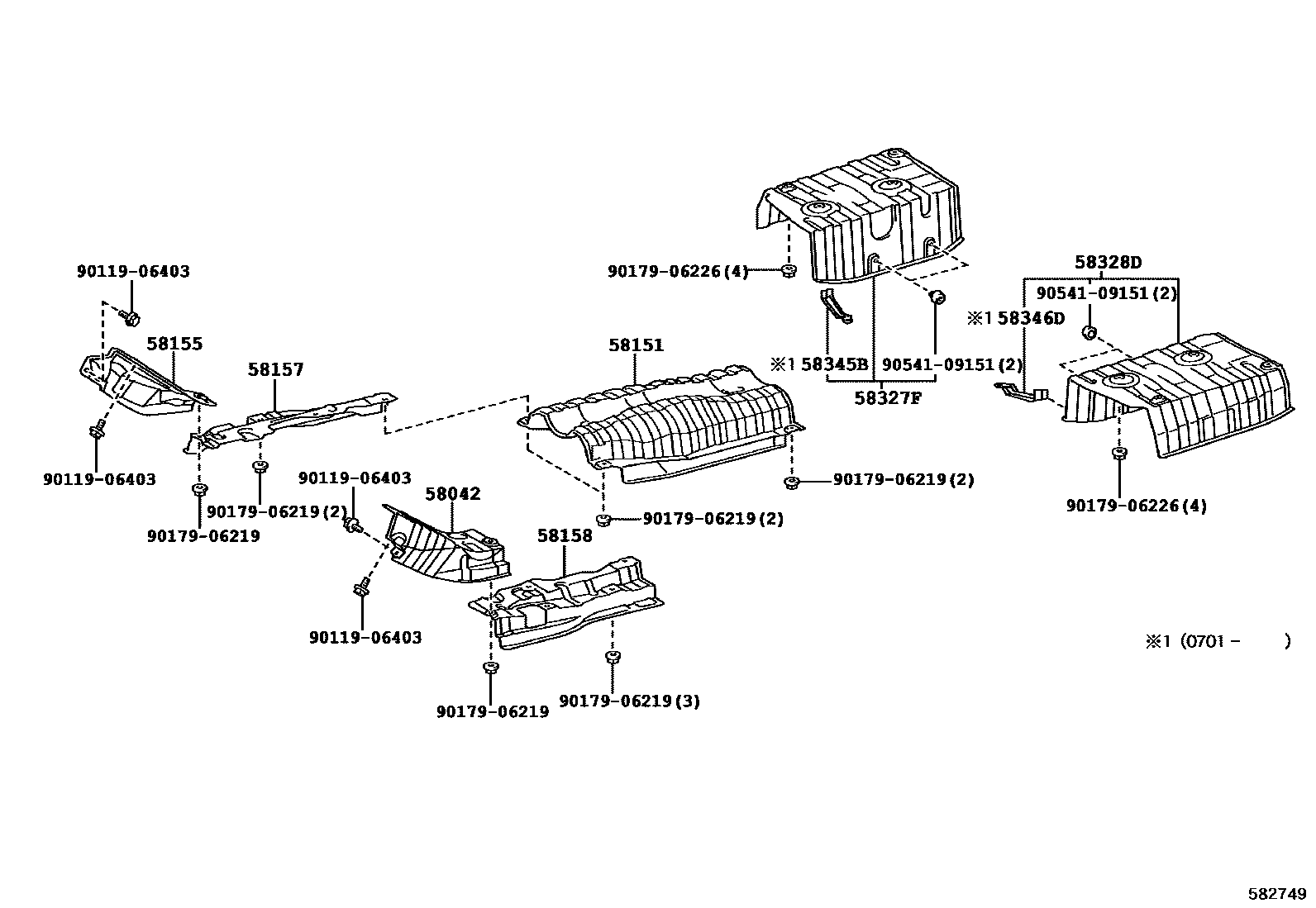

FLOOR INSULATOR

0001 1 0002 1

58042INSULATOR SUB-ASSY, FRONT FLOOR HEAT, NO.2

main58042-50020iUSF4#200608-200909

sub58042-50021

main58042-50030iUSF45,46200809-200909

sub58042-50031

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-50030iUSF4#200608-200708

sub58151-50031

main58151-50031iUSF40,41200708-200909

main58151-50040iUSF45,46200809-200909

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-50040iUSF40,41200608-200909

main58155-50050iUSF45,46200809-200909

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-50040iUSF4#200608-200909

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-50040iUSF40,41200608-201201

sub58158-50041

main58158-50041iUSF40,41201202

main58158-50050iUSF45,46200809-200909

58327FINSULATOR, MAIN MUFFLER HEAT, RH

main58327-50040iUSF4#..GCC200608-200701

sub58327-50041

main58327-50041iUSF4#200701-200909

58328DINSULATOR, MAIN MUFFLER HEAT, LH

main58328-50030iUSF4#..GCC200608-200701

sub58328-50031

main58328-50031iUSF4#200701-200909

58345BBRACKET, REAR FLOOR HEAT INSULATOR, NO.1

main58345-50020iUSF4#200701-200909

58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2

main58346-50010iUSF4#200701-200909

9011906403

main90119-06403

9017906219

main90179-06219

9017906226

main90179-06226

9054109151

main90541-09151

13 parts on this diagram · 2 diagrams in section
