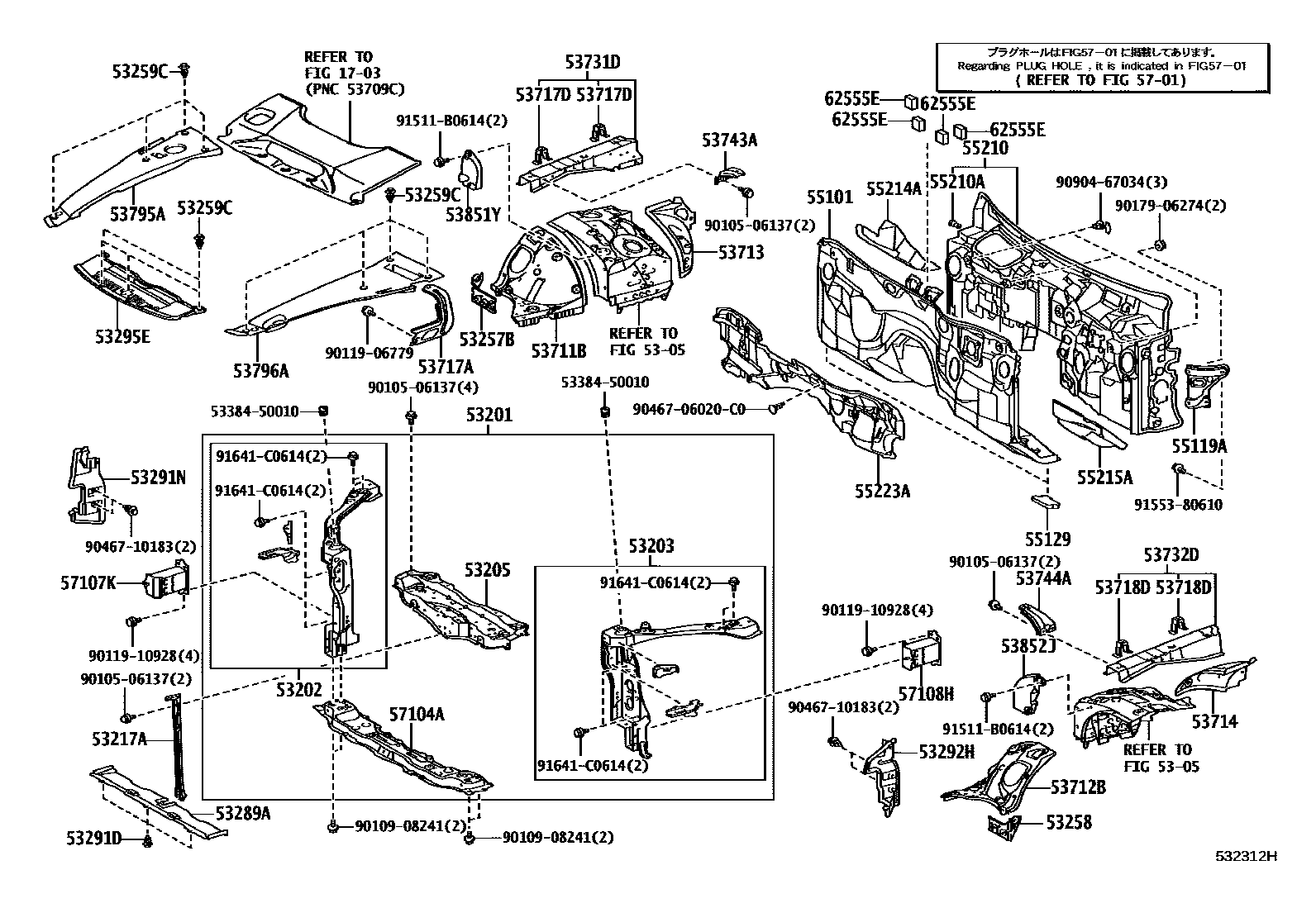

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1

5305

53201SUPPORT SUB-ASSY, RADIATOR

main53201-50080iUSF4#¥59,200200608-200909

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-50901iUSF4#¥17,600200608-200909

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-50901iUSF4#¥17,600200608-200909

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53216-50060iUSF4#¥8,300200608-200909

53217ABRACE, HOOD LOCK SUPPORT

main53205-50060iUSF4#¥2,510200608-200909

53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER

main53257-50030iUSF4#¥1,360200608-200909

53258BRACKET, FRONT END PANEL MOUNTING, LH

main53258-50030iUSF4#¥1,360200608-200909

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211iUSF4#¥90200608-200909

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-50060iUSF4#¥4,630200608-201111

sub53289-50061¥4,630

main53289-50061iUSF4#¥4,630201112

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07201iUSF4#¥100200608-200909

53291NSEAL, RADIATOR SUPPORT TO FRAME, RH

main53291-50050iUSF4#¥2,910200608-200909

main53291-50060iUSF4#¥2,100200909

53292HSEAL, RADIATOR SUPPORT TO FRAME, LH

main53292-50050iUSF4#¥2,910200608-200909

main53292-50060iUSF4#¥2,100200909

53295ESEAL, COOL AIR INTAKE DUCT

main53295-50030iUSF4#¥6,000200608-200909

53711BAPRON, FRONT FENDER, FRONT RH

main53707-50010iUSF4#¥5,000200608-200909

53712BAPRON, FRONT FENDER, FRONT LH

main53708-50010iUSF4#¥5,000200608-200909

53713APRON, FENDER SIDE, RH

main53713-50040iUSF4#¥5,000200608-200909

53714APRON, FENDER SIDE, LH

main53714-50040iUSF4#¥5,000200608-200909

53717APLATE, FENDER APRON

main53717-50030iUSF4#..LHD¥800200608-200909

main53717-50040iUSF40,41,45..RHD¥620200608-200909

53717DGUSSET, FENDER APRON, RH

main53718-50020iUSF4#¥370200608-200909

53718DGUSSET, FENDER APRON, LH

main53718-50020iUSF4#¥370200608-200909

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53705-50010iUSF4#¥5,500200608-200909

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53706-50010iUSF4#¥5,500200608-200909

53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH

main53743-50040iUSF4#¥1,160200608-200909

53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH

main53744-50040iUSF4#¥1,160200608-200909

53795ACOVER, ENGINE ROOM, SIDE

main53795-50050iUSF4#..LHD200608-200908

sub53795-50051¥10,800

main53795-50051iUSF4#..LHD¥10,800200909-201112

sub53795-50052¥10,800

main53795-50052iUSF4#..LHD¥10,800201201

main53795-50060iUSF40,41,45..RHD¥10,800200608-200908

sub53795-50061¥10,800

main53795-50061iUSF40,41,45..RHD¥10,800200909-201106

sub53795-50062¥10,800

main53795-50062iUSF40,41,45..RHD¥10,800201107

53796ACOVER, ENGINE ROOM SIDE, LH

main53796-50020iUSF4#..LHD200608-200908

sub53796-50021

main53796-50021iUSF4#..LHD200909-201112

sub53796-50022¥10,400

main53796-50022iUSF4#..LHD¥10,400201201

main53796-50030iUSF40,41,45..RHD¥10,800200608-200908

sub53796-50031¥10,800

main53796-50031iUSF40,41,45..RHD¥10,800200909-201112

sub53796-50032¥10,800

main53796-50032iUSF40,41,45..RHD¥10,800201201

53851YPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53853-50010iUSF4#¥5,800200608-200908

sub53853-50011¥3,600

main53853-50011iUSF4#¥3,600200909

53852JPAD, FRONT WHEEL OPENING EXTENSION, LH

main53855-50010iUSF4#¥5,800200608-200908

sub53855-50011¥3,600

main53855-50011iUSF4#¥3,600200909

55101PANEL SUB-ASSY, DASH

main55101-50100iUSF4#..LHD¥34,100200608-200909

main55101-50110iUSF40,41..RHD¥34,100200608-200909

main55101-50120iUSF45,46..LHD200809-200909

main55101-50130iUSF45..RHD¥34,100200809-200909

55119AEXTENSION, DASH PANEL, LH

main55119-50010iUSF4#¥1,000200608-200909

55129COVER, DASH PANEL HOLE

main55129-50010iUSF4#¥270200608-200909

RH

main55139-50020iUSF4#¥270200608-200909

LH

55210INSULATOR ASSY, DASH PANEL

main55210-50110iUSF4#..LHD200608-200907

sub55210-50111

main55210-50111iUSF4#..LHD200908-200909

main55210-50120iUSF4#..RHD¥25,700200608-200907

sub55210-50121¥25,700

main55210-50121iUSF40,41,45..RHD¥25,700200908-200909

55210ACLIP

main90467-13079iUSF4#¥120200608-200909

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-50060iUSF4#..LHD200608-200612

sub55214-50061¥5,300

sub88539-50101

main55214-50061iUSF4#..LHD¥5,300200612-200909

main55214-50070iUSF40,41,45..RHD¥4,170200608-200909

55215APAD, DASH PANEL INSULATOR, NO.3

main55215-50020iUSF4#..LHD200608-200909

main55215-50030iUSF4#..RHD¥5,300200608-200612

sub55215-50031¥5,300

sub88539-50121

main55215-50031iUSF40,41,45..RHD¥5,300200612-200909

55223AINSULATOR, DASH PANEL, OUTER

main55223-50090iUSF4#..LHD200608-201008

sub55223-50091

main55223-50091iUSF4#..LHD201009

sub55223-50092

main55223-50100iUSF40,41,45..RHD¥6,200200608-201008

main55223-50101iUSF40,41,45..RHD¥8,200201009

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-50090iUSF4#¥8,200200608-200909

57107KREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH

main57107-50030iUSF4#¥13,600200608-200905

sub57107-50031¥8,600

main57107-50031iUSF4#¥8,600200906-200909

57108HREINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH

main57107-50030iUSF4#¥13,600200608-200905

sub57107-50031¥8,600

main57107-50031iUSF4#¥8,600200906-200909

62555EPAD, PILLAR, NO.5

main62555-89101iUSF4#¥130200608-200909

5338450010BAR, HOOD SILENCER SUPPORT

main53384-50010¥340

9010506137

main90105-06137¥70

9010908241

main90109-08241¥90

9011906779

main90119-06779¥60

9011910928

main90119-10928¥120

9017906274

main90179-06274¥70

9046706020C0

main90467-06020C0

9046710183

main90467-10183¥110

9090467034

main90904-67034¥200

91511B0614

main91511-B0614¥90

9155380610

main91553-80610¥60

91641C0614

main91641-C0614¥70

54 parts on this diagram · 2 diagrams in section
