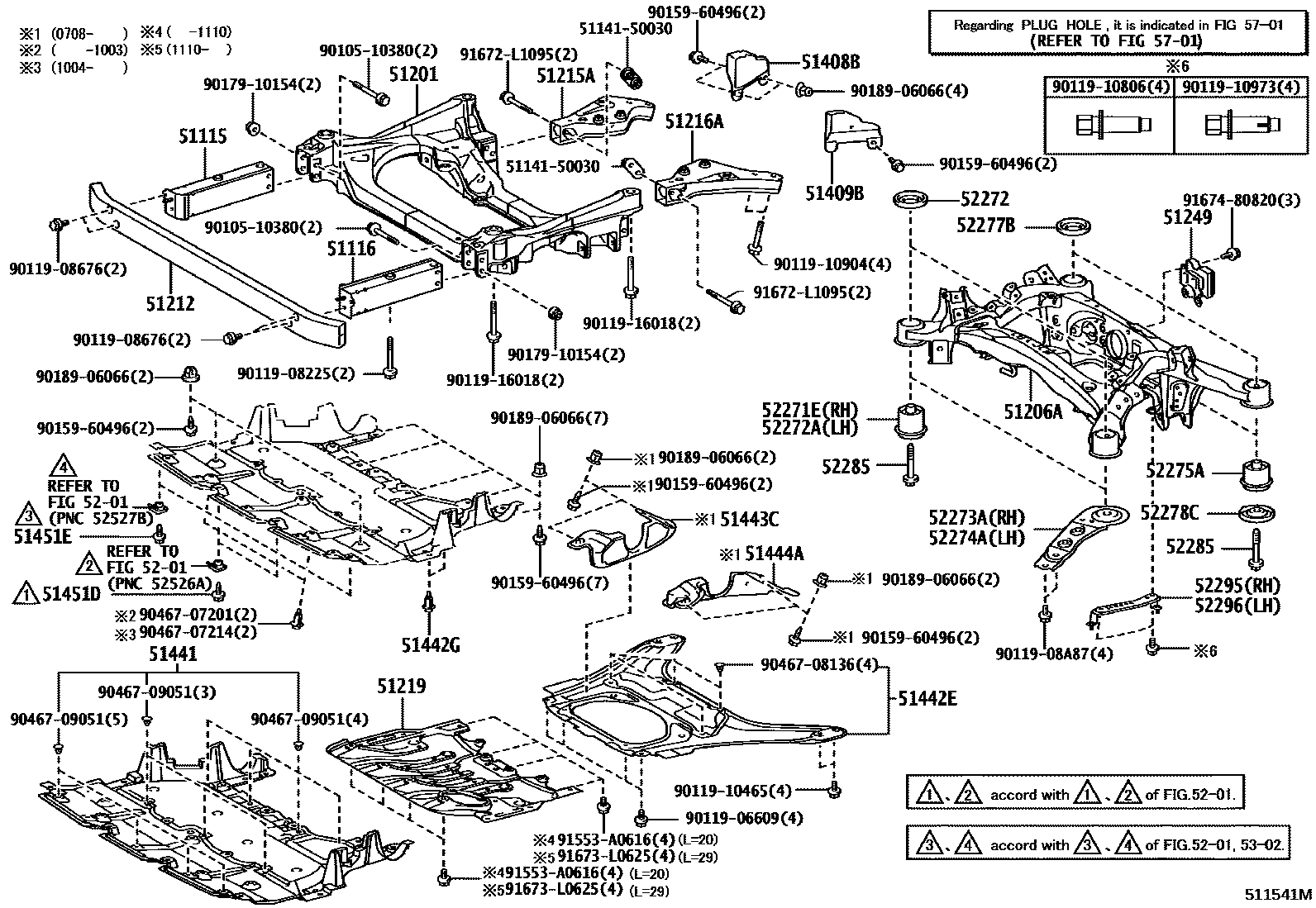

SUSPENSION CROSSMEMBER & UNDER COVER
51115RAIL, FRAME SIDE, REAR RH
51116RAIL, FRAME SIDE, REAR LH
51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51206AMEMBER SUB-ASSY, REAR SUSPENSION
sub51206-50051
51215AREINFORCEMENT, FRONT SUSPENSION MEMBER, RH
51216AREINFORCEMENT, FRONT SUSPENSION MEMBER, LH
51219PROTECTOR, FRONT SUSPENSION MEMBER, LWR
51249DAMPER, REAR SUSPENSION MEMBER
51408BCOVER SUB-ASSY, ENGINE UNDER, RH
51409BCOVER SUB-ASSY, ENGINE UNDER, LH
51441COVER, ENGINE UNDER, NO.1
51442ECOVER, ENGINE UNDER, NO.2
51442GCLIP, ENGINE UNDER COVER, NO.1
51443CCOVER, ENGINE UNDER, REAR RH
51444ACOVER, ENGINE UNDER, REAR LH
51451DSCREW, NO.1
51451ESCREW, NO.2
5201
52271ECUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
sub52271-50061
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52272ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
sub52272-50011
52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH
52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
sub52275-50072
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
5701
5114150030REINFORCEMENT, SIDE RAIL, RH
main51141-50030
9010510380
main90105-10380
9011906609
main90119-06609
9011908225
main90119-08225
9011908676
main90119-08676
9011908A87
main90119-08A87
9011910465
main90119-10465
9011910806
main90119-10806
9011910904
main90119-10904
9011910973
main90119-10973
9011916018
main90119-16018
9015960496
main90159-60496
9017910154
main90179-10154
9018906066
main90189-06066
9046707201
main90467-07201
9046707214
main90467-07214
9046708136
main90467-08136
9046709051
main90467-09051
91553A0616
main91553-A0616
91672L1095
main91672-L1095
91673L0625
main91673-L0625
9167480820
main91674-80820
53 parts on this diagram · 2 diagrams in section
