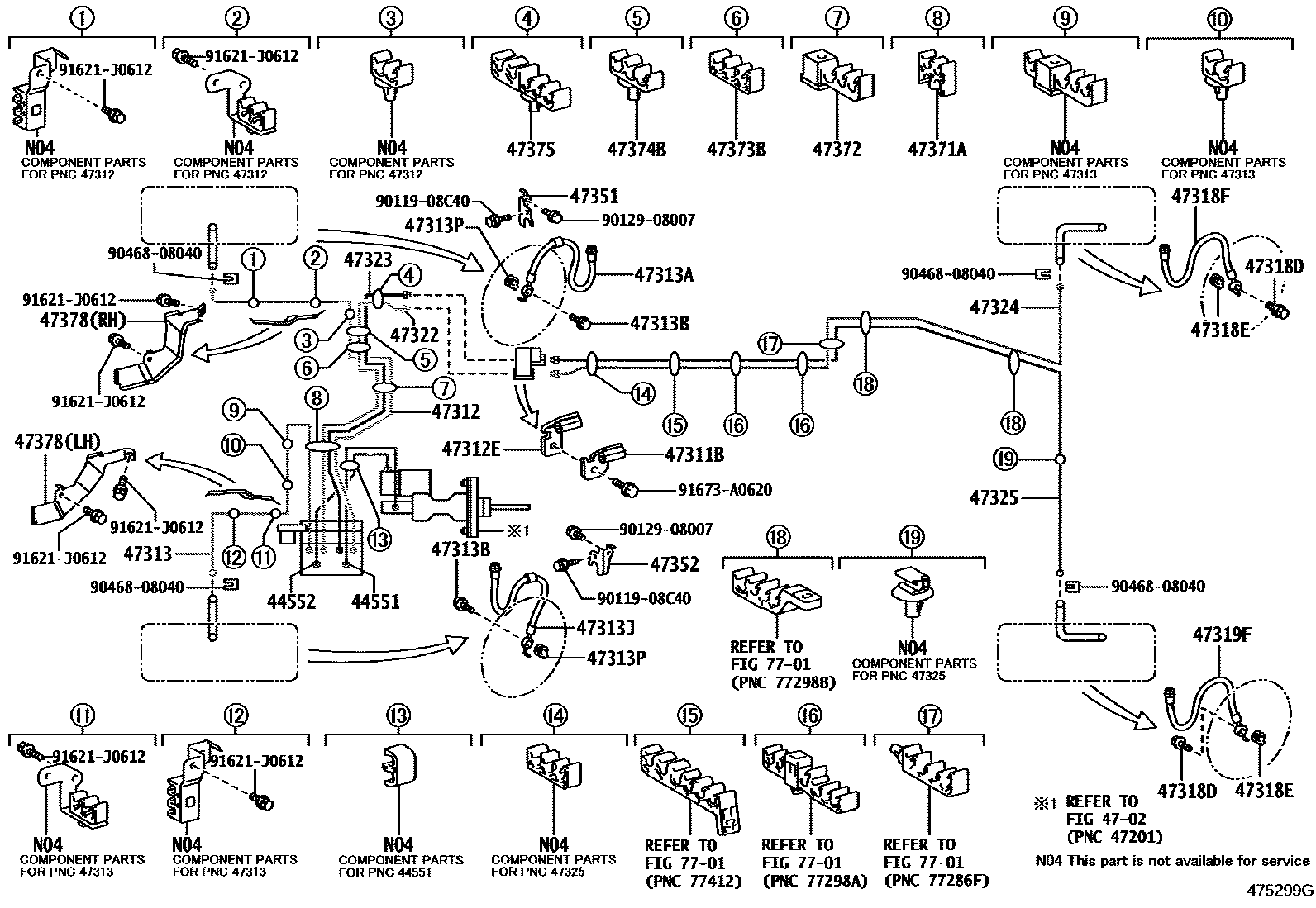

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1

44551TUBE, BRAKE ACTUATOR, NO.1

main44551-50110iUSF4#..LHD200608-200909

sub44551-50111

main44551-50120iUSF40,41,45..RHD200608-200909

sub44551-50121

44552TUBE, BRAKE ACTUATOR, NO.2

main44552-50060iUSF4#..LHD200608-200610

sub44552-50061

main44552-50061iUSF4#..LHD200611-200909

sub44552-50062

main44552-50070iUSF40,41,45..RHD200608-200909

sub44552-50071

4702

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10274iUSF4#200608-200909

47312TUBE, FRONT BRAKE, NO.2

main47312-50240iUSF4#..LHD200608-200705

main47312-50241iUSF4#..LHD200705-200909

sub47312-50242

main47312-50250iUSF4#..RHD200608-200705

main47312-50251iUSF40,41..RHD200705-200909

sub47312-50252

main47312-50270iUSF45..RHD200809-200909

sub47312-50271

main47312-50280iUSF45,46..LHD200809-200909

sub47312-50281

47312EWAY, NO.2(FOR FRONT BRAKE TUBE)

main90412-10275iUSF4#200608-200909

47313TUBE, FRONT BRAKE, NO.3

main47313-50200iUSF4#..LHD200608-200705

main47313-50202iUSF4#..LHD200705-200909

sub47313-50203

main47313-50210iUSF4#..RHD200608-200705

main47313-50211iUSF4#..RHD200705-200712

sub47313-50212

main47313-50212iUSF40,41..RHD200801-200909

sub47313-50213

main47313-50221iUSF45..LHD200909

VERSION U OR U I PACKAGE OR KOREA SPEC

sub47313-50222

main47313-50221iUSF45,46..LHD200809-200909

VERSION U OR VERSION U I PACKAGE

sub47313-50222

main47313-50240iUSF45..RHD200909

VERSION U OR U I PACKAGE OR KOREA SPEC

sub47313-50241

main47313-50240iUSF45..RHD200809-200909

VERSION U OR VERSION U I PACKAGE

sub47313-50241

main47313-50250iUSF45,46..LHD200809-200909

sub47313-50251

main47313-50260iUSF45..RHD200809-200909

sub47313-50261

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02E67iUSF4#200608-200703

sub90947-02F75

main90947-02F75iUSF4#200703-200909

main90947-02F88iUSF45,46200809-200909

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iUSF4#200608-200909

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02E68iUSF4#200608-200703

sub90947-02F76

main90947-02F76iUSF4#200703-200909

main90947-02F89iUSF45,46200809-200909

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iUSF4#200608-200909

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iUSF4#200608-200909

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iUSF4#200608-200909

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02E69iUSF4#200608-200703

sub90947-02F77

main90947-02F77iUSF4#200703-200909

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02E69iUSF4#200608-200703

sub90947-02F77

main90947-02F77iUSF4#200703-200909

47322TUBE, REAR BRAKE, NO.2

main47322-50220iUSF40,41..HTWC200608-200909

main47322-50230iUSF4#..RHD200608-200909

main47322-50240iUSF45,46..LHD200809-200909

main47322-50250iUSF45..RHD200809-200909

main47322-50260iUSF4#..LHD..D4200608-200909

sub47322-50220

47323TUBE, REAR BRAKE, NO.3

main47323-50080iUSF40,41..HTWC200608-200909

main47323-50090iUSF40,41..RHD200608-200909

main47323-50100iUSF45,46..LHD200809-200909

main47323-50110iUSF45..RHD200809-200909

main47323-50120iUSF40,41..LHD..D4200608-200909

sub47323-50080

47324TUBE, REAR BRAKE, NO.4

main47324-50140iUSF40200608-201209

main47324-50150iUSF41200608-201209

47325TUBE, REAR BRAKE, NO.5

main47325-50080iUSF40200608-200712

sub47325-50100

main47325-50090iUSF41200608-200712

sub47325-50110

main47325-50100iUSF40200801-201209

main47325-50110iUSF41,46200801-201209

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-50010iUSF40,41200608-201209

main47351-50020iUSF45,46200809-201209

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-50010iUSF40,41200608-201209

main47352-50020iUSF45,46200809-201209

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00876iUSF4#..RHD200608-200909

47372CLAMP, BRAKE TUBE, NO.2

main90949-01886iUSF4#..RHD200608-200702

sub90949-01D08

main90949-01D08iUSF4#..LHD200608-200909

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00857iUSF4#..LHD200608-200909

main90949-01D47iUSF40,41,45..RHD200608-200909

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D41iUSF4#..LHD200608-200909

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D47iUSF4#..LHD200608-200909

47378PROTECTOR, BRAKE TUBE

main47378-50040iUSF4#200608-200909

RH

main47388-50030iUSF4#200608-200909

LH

7701

9011908C40

main90119-08C40

9012908007

main90129-08007

9046808040

main90468-08040

91621J0612

main91621-J0612

91673A0620

main91673-A0620

33 parts on this diagram · 4 diagrams in section
