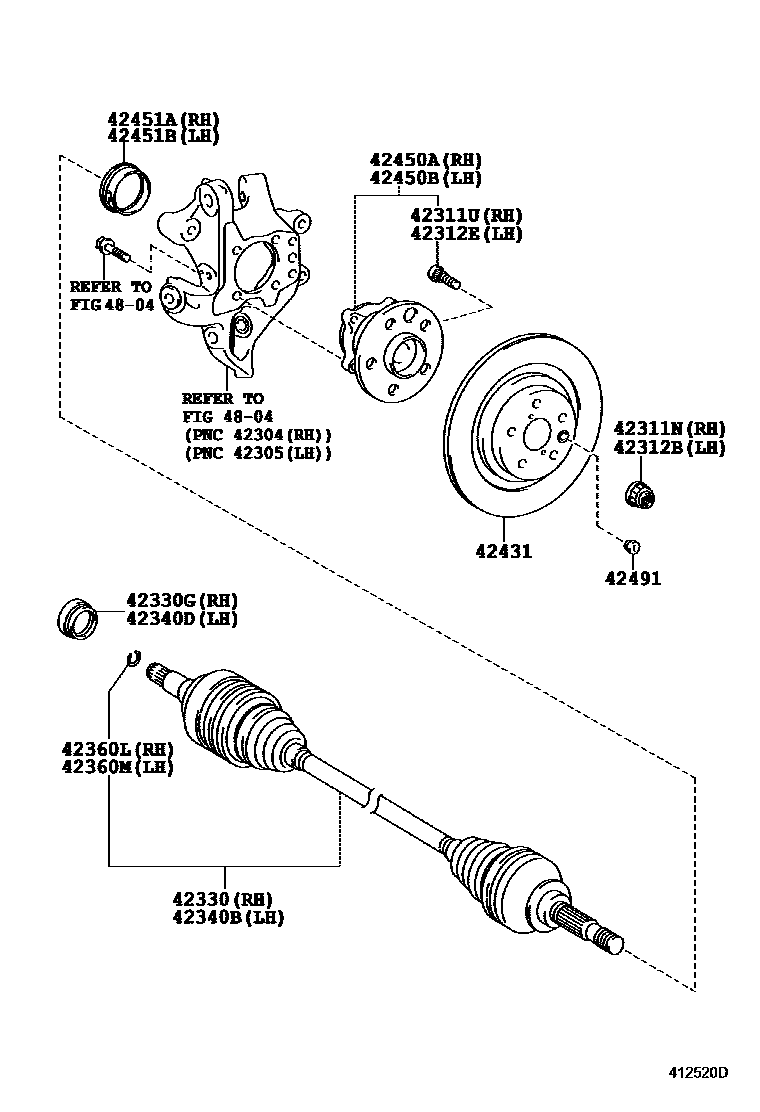

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iUSF4#200608-200909

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02077iUSF4#200608-200712

sub90942-02083

main90942-02083iUSF4#200712-200909

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iUSF4#200608-200909

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02077iUSF4#200608-200712

sub90942-02083

main90942-02083iUSF4#200712-200909

42330SHAFT ASSY, REAR DRIVE, RH

main42330-50070iUSF4#200608-200909

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47015iUSF4#200608-200707

main90311-47018iUSF4#200707-201209

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-50070iUSF4#200608-200909

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47015iUSF4#200608-200707

main90311-47019iUSF4#200707-201209

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iUSF4#200608-200909

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iUSF4#200608-200909

42431DISC, REAR

main42431-50100iUSF4#200608-201209

RH

main42432-50010iUSF4#200608-201209

LH

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-50040iUSF4#200608-200711

sub42410-50041

main42410-50041iUSF4#200712-200902

sub42410-50042

main42410-50042iUSF4#200903-200909

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-50040iUSF4#200608-200711

sub42410-50041

main42410-50041iUSF4#200712-200902

sub42410-50042

main42410-50042iUSF4#200903-200909

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-50030iUSF4#200608-200909

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-50030iUSF4#200608-200909

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iUSF4#200608-201209

4804

17 parts on this diagram · 1 diagram in section
