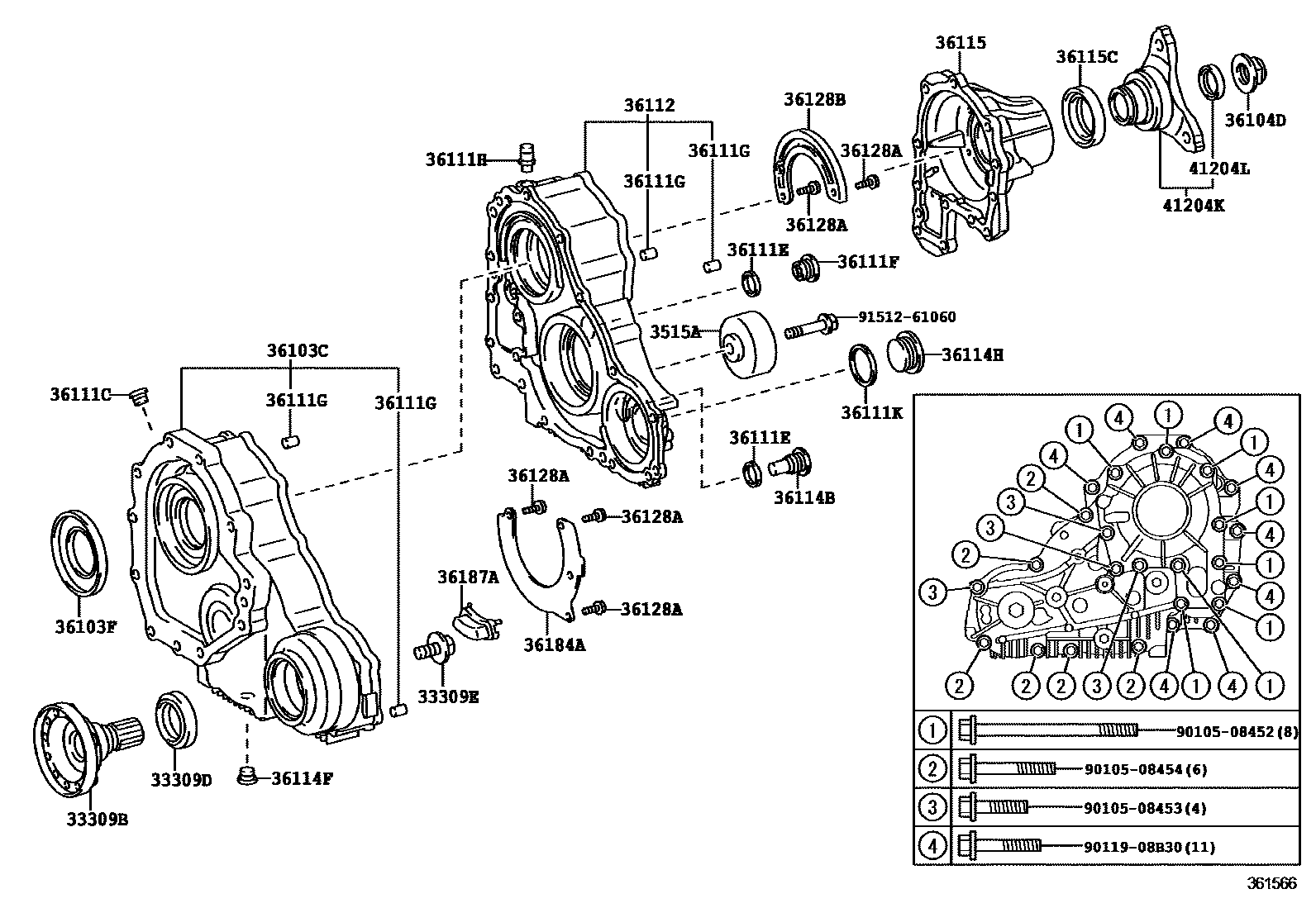

TRANSFER CASE & EXTENSION HOUSING
33309BFLANGE SUB-ASSY, OUTPUT SHAFT COMPANION
33309DSEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
33309EBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
3515ADAMPER, TRANSMISSION MASS
36103CCASE, TRANSFER, FRONT
36103FSEAL, TYPE T OIL (FOR TRANSFER FRONT CASE)
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36111CPLUG (FOR TRANSFER CASE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36111KGASKET (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
sub36104-50011
36114BPLUG, NO.1 (FOR TRANSFER CASE)
36114FPLUG (FOR TRANSFER DRAIN)
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36115HOUSING, TRANSFER EXTENSION
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36128ABOLT (FOR BREATHER OIL DEFLECTOR)
36128BDEFLECTOR, BREATHER OIL
36184ASEPARATOR, TRANSFER OIL
36187ASTRAINR, TRANSFER OIL, NO.1
41204KFLANGE SUB-ASSY, DRIVE PINION COMPANION
41204LSEAL, TYPE V OIL (FOR DRIVE PINION COMPANION FLANGE)
9010508452
main90105-08452
9010508453
main90105-08453
9010508454
main90105-08454
9011908B30
main90119-08B30
9151261060
main91512-61060
30 parts on this diagram · 1 diagram in section
