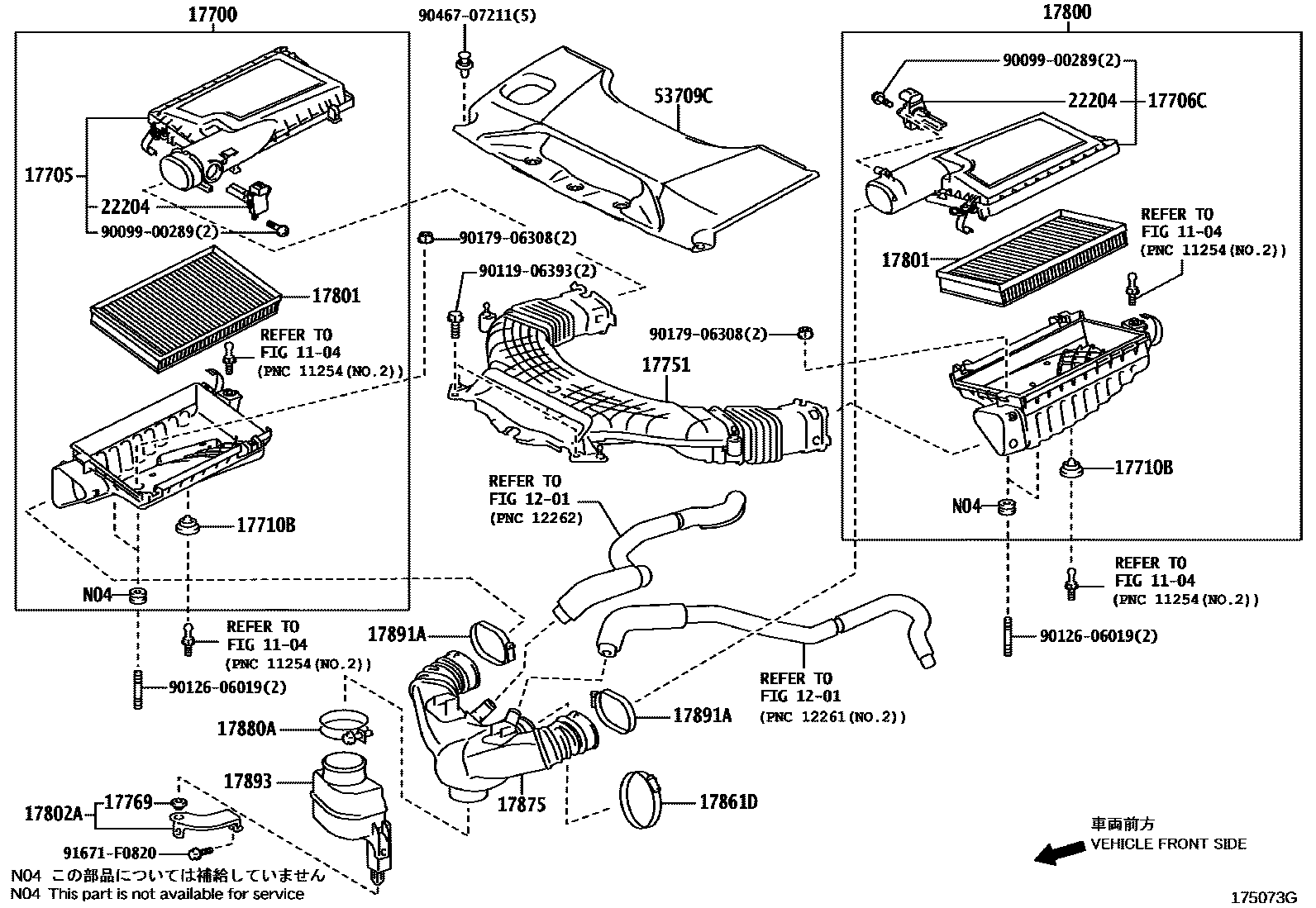

AIR CLEANER

0001 1 0002 1

1104

1201

17700CLEANER ASSY, AIR

main17700-38130i1UR#..USF4#200608-200611

sub17700-38131

main17700-38131i1UR#..USF4#200612-201204

sub17700-38132

main17700-38132i1UR#..USF4#201205

17705CAP SUB-ASSY, AIR CLEANER

main17705-38070i1UR#..USF4#200608-200611

sub17705-38071

main17705-38071i1UR#..USF4#200612-200909

17706CCAP SUB-ASSY, AIR CLEANER, LH

main17706-38010i1UR#..USF4#200608-200611

sub17706-38011

main17706-38011i1UR#..USF4#200612-200909

17710BGROMMET

main90480-22024i1UR#..USF4#200608-200909

17751INLET, AIR CLEANER, NO.1

main17751-38011i1UR#..USF40,41200608-200909

main17751-38020i1URFSE..USF45,46200809-200909

17769SUPPORT, AIR CLEANER

main17769-38010i1UR#..USF4#200608-200909

17800CLEANER ASSY, AIR W/ELEMENT, LH

main17800-38010i1UR#..USF4#200608-200611

sub17800-38011

main17800-38011i1UR#..USF4#200612-201204

sub17800-38012

main17800-38012i1UR#..USF4#201205

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38010i1UR#..USF4#200608-201204

sub17801-38011

main17801-38011i1UR#..USF4#201205-201209

17802ABRACKET SUB-ASSY, RESONATOR

main17802-38010i1UR#..USF4#200608-200909

17861DCLAMP(FOR INTAKE AIR CONNECTOR)

main90460-99005i1UR#..USF4#200608-200909

17875PIPE, INTAKE AIR CONNECTOR

main17875-38011i1UR#..USF4#200608-200909

17880ACLAMP, HOSE

main96111-10750i1UR#..USF4#200608-200909

17891ACLAMP, AIR CLEANER HOSE

main17891-38010i1UR#..USF4#200608-200909

17893RESONATOR, INTAKE AIR

main17893-38011i1UR#..USF40,41200608-200909

main17893-38020i1URFSE..USF45,46200809-200909

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-38010i1UR#..USF4#200608-200611

sub22204-38020

main22204-38020i1UR#..USF4#200612-200909

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53767-50011iUSF4#200608-200909

main53767-50020iUSF45,46200809-200909

9009900289

main90099-00289

9011906393

main90119-06393

9012606019

main90126-06019

9017906308

main90179-06308

9046707211

main90467-07211

91671F0820

main91671-F0820

24 parts on this diagram · 2 diagrams in section
