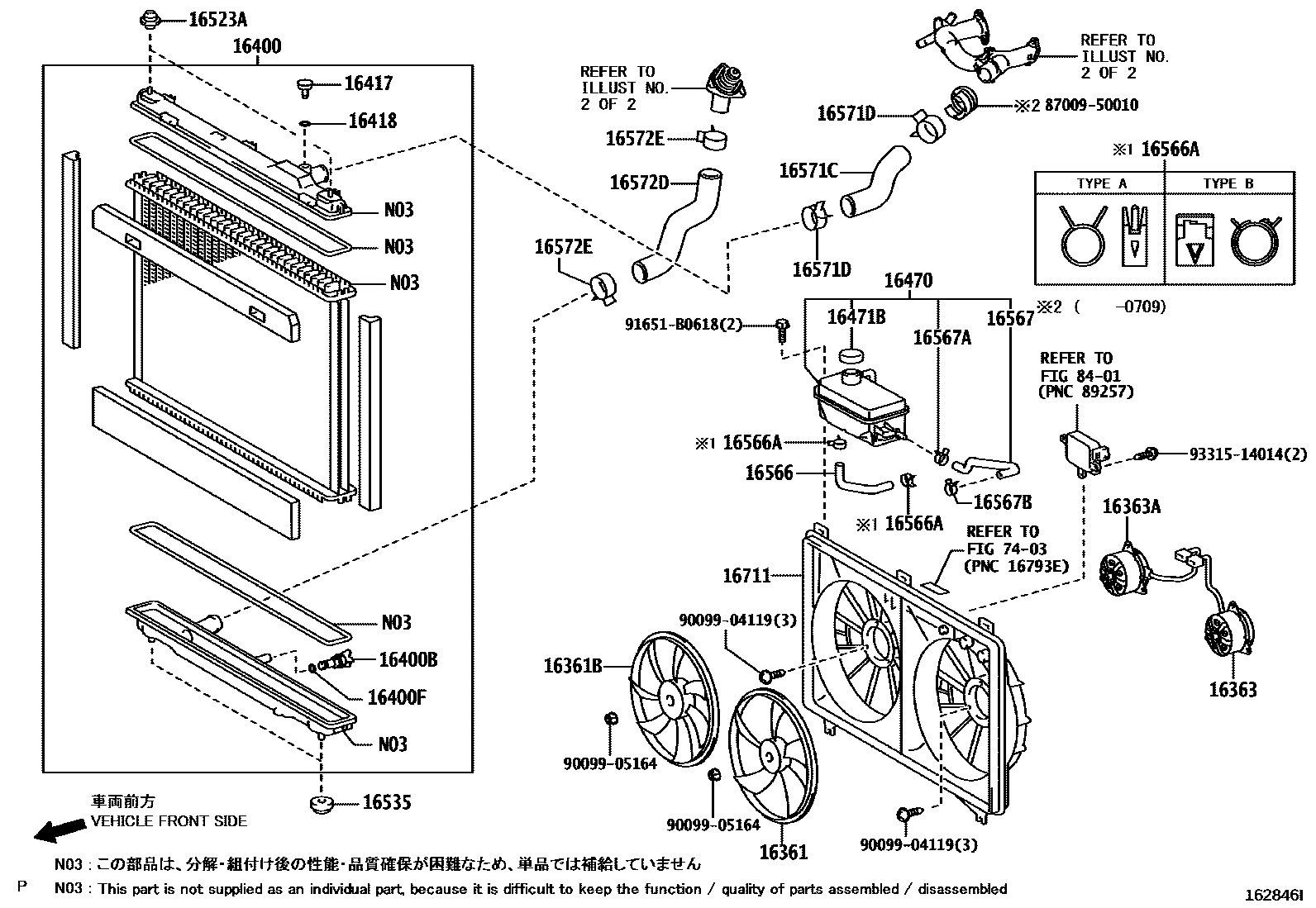

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1

16361FAN

main16361-38070i1UR#..USF4#¥5,300200608-200909

16361BFAN, NO.2

main16361-38080i1UR#..USF4#¥7,400200608-200909

16363MOTOR, COOLING FAN

main16363-38070i1UR#..USF4#¥23,400200608-200909

16363AMOTOR, COOLING FAN, NO.2

main16363-38080i1UR#..USF4#¥23,400200608-200909

16400RADIATOR ASSY

main16400-38190i1UR#..USF40,41¥55,100200608-201006

sub16400-38191¥47,900

sub16567-38011¥540

sub96136-42101¥240

main16400-38191i1UR#..USF40,41¥47,900201006-201209

sub16400-38192¥43,500

main16400-38200i1URFSE..USF45,46¥46,200200809-200909

sub16400-38201¥40,100

sub16567-38011¥540

sub96136-42101¥240

main16400-38200i1URFSE..USF45,46¥46,200200909-201010

PNC 16567=TYPE A

sub16400-38201¥40,100

sub16567-38011¥540

sub96136-42101¥240

main16400-38201i1URFSE..USF45,46¥40,100201112-201209

sub16400-38202¥36,400

main16400-38201i1URFSE..USF45,46¥40,100201010-201112

PNC 16567=TYPE B

sub16400-38202¥36,400

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280i1UR#..USF4#¥360200608-200909

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050i1UR#..USF4#¥210200608-200909

16417COCK

main16417-28530i1UR#..USF4#¥500200608-200909

16418PACKING

main16418-20290i1UR#..USF4#¥350200608-200909

16470TANK ASSY, RADIATOR RESERVE

main16470-38020i1UR#..USF4#¥10,200200608-201006

main16470-38020i1URFSE..USF45,46¥10,200200909-201010

PNC 16567=TYPE A

main16470-38021i1URFSE..USF45,46¥10,200201010-201112

PNC 16567=TYPE B

main16470-38021i1UR#..USF40,41¥10,200201006-201209

16471BCAP, RESERVE TANK

main16475-28120i1UR#..USF4#¥1,400200608-200803

sub16475-51010¥1,100

main16475-51010i1UR#..USF4#¥1,100200804-200909

sub16475-28140¥1,200

16523ACUSHION, RADIATOR SUPPORT

main16523-38010i1UR#..USF4#¥590200608-200909

16535SUPPORT, RADIATOR, LOWER

main90480-40021i1UR#..USF4#¥220200608-200909

16566HOSE, RESERVE TANK OUTLET

main16566-38010i1UR#..USF4#¥580200608-200909

main16566-38020i1URFSE..USF45,46¥580200809-200909

16566ACLIP(FOR RESERVE TANK OUTLET)

main90467-13054i1UR#..USF4#¥110200809-201112

TYPE A:REFER ILLUST.

main96135-51300i1UR#..USF4#¥120200608-200809

TYPE A:REFER ILLUST.

main96137-41501i1UR#..USF4#¥120200608-201112

TYPE B:REFER ILLUST.

main96137-41501i1UR#..USF4#¥120201112

16567HOSE(FOR RADIATOR RESERVE TANK)

main16567-38010i1UR#..USF4#¥580200608-201006

main16567-38010i1URFSE..USF45,46¥580200909-201010

TYPE A:REFER ILLUST.

main16567-38011i1URFSE..USF45,46¥540201010-201112

TYPE B:REFER ILLUST.

main16567-38011i1UR#..USF40,41¥540201006-201209

16567ACLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-16037i1UR#..USF4#¥180200608-200909

16567BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE NO.2)

main90467-16037i1UR#..USF4#¥180200608-201006

main90467-16037i1URFSE..USF45,46¥180200909-201010

PNC 16567=TYPE A

main96136-42101i1UR#..USF40,41¥240201006-201209

main96136-42101i1URFSE..USF45,46¥240201010-201112

PNC 16567=TYPE B

16571CHOSE, RADIATOR, NO.1

main16571-38050i1UR#..USF4#¥1,900200608-201111

main16571-38051i1UR#..USF40,41¥1,340201111

main16571-38060i1URFSE..USF45,46¥1,900200809-201111

main16571-38061i1URFSE..USF45,46¥1,010201111

16571DCLIP, RADIATOR HOSE, NO.1

main90466-39002i1UR#..USF4#¥300201111

main96136-44801i1UR#..USF4#¥330200908-201111

main96136-54801i1UR#..USF4#¥300200608-200907

16572DHOSE, RADIATOR, NO.2

main16572-38100i1UR#..USF4#¥2,380200608-201111

main16572-38101i1UR#..USF40,41¥1,530201111

main16572-38110i1URFSE..USF45,46¥2,380200809-201111

main16572-38111i1URFSE..USF45,46¥1,150201111

16572ECLIP, RADIATOR HOSE, NO.2

main90466-39002i1UR#..USF4#¥300201111

main96136-44801i1UR#..USF4#¥330200908-201111

main96136-54801i1UR#..USF4#¥300200608-200907

16711SHROUD, FAN

main16711-38070i1UR#..USF40,41¥8,700200608-200909

main16711-38100i1URFSE..USF45,46200809-200909

7403

8401

8700950010HOSE SET, WATER, NO.1

main87009-50010¥980

9009904119

main90099-04119

9009905164

main90099-05164¥0

91651B0618

main91651-B0618¥100

9331514014

main93315-14014¥70
