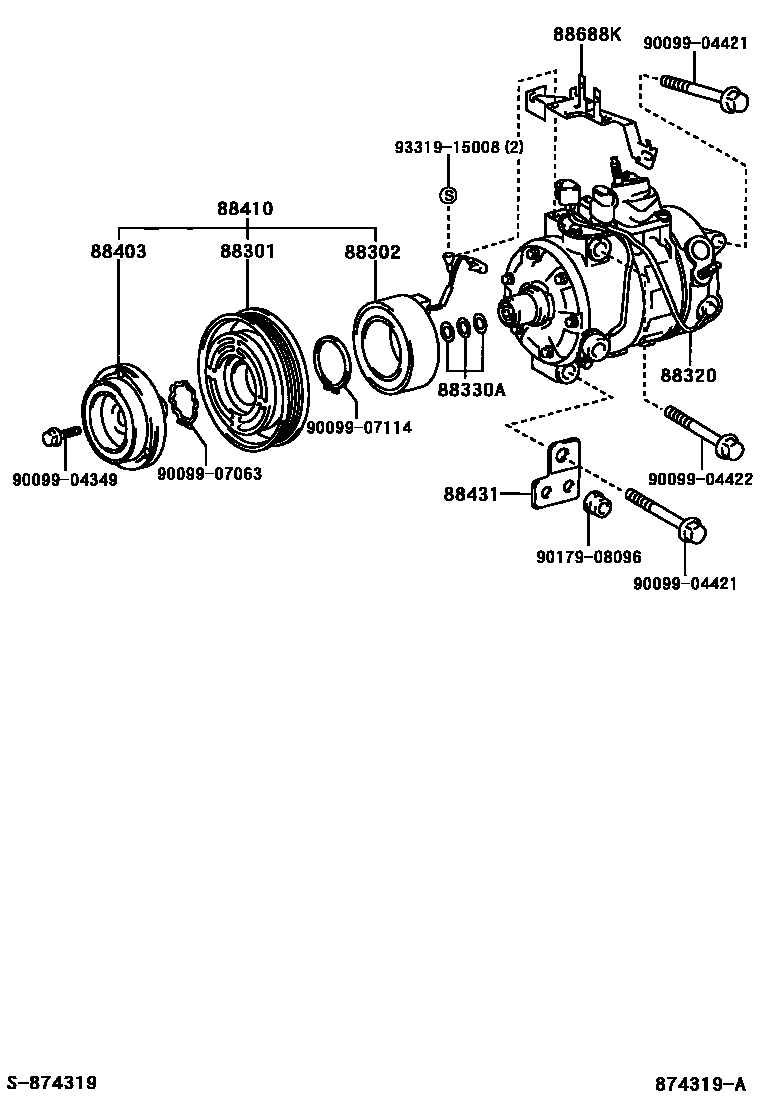

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1 0004 1 0005 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-3A050iUCF30..ARL,EUR200008-200307

main88412-60070iUCF30..GCC200008-200307

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-26060iUCF30..ARL,EUR200008-200307

main88411-3A030iUCF30..GCC200008-200307

88320COMPRESSOR ASSY, COOLER

main88320-50091iUCF30..GCC200008-200412

sub88320-50092

main88320-50092iUCF30..GCC200412

main88320-50100iUCF30..ARL,EUR200008-200109

main88320-50101iUCF30..ARL,EUR200109-200307

sub88320-50102

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCF30..GCC200008-200307

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-3A100iUCF30..ARL,EUR200008-200307

main88403-50020iUCF30..GCC200008-200307

88410CLUTCH ASSY, MAGNET

main88410-3A260iUCF30..ARL,EUR¥43,500200008-200307

main88410-50100iUCF30..GCC¥43,500200008-200307

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88433-50010iUCF30¥490200008-200307

88688KBRACKET, COOLER COMPRESSOR

main88688-3A610iUCF30..ARL,EUR200008-200307

main88688-50210iUCF30..GCC200008-200307

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907063

main90099-07063

9009907114

main90099-07114

9017908096

main90179-08096¥110

9331915008

main93319-15008¥170

15 parts on this diagram · 5 diagrams in section
