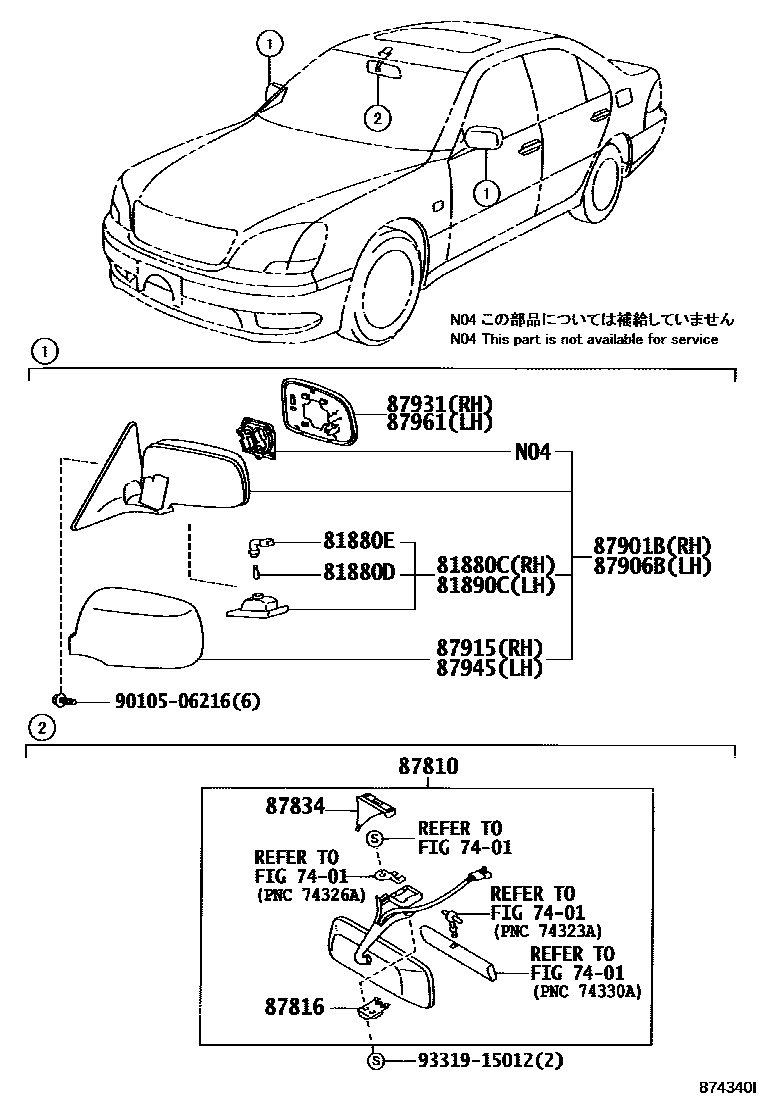

MIRROR
7401
81880CLAMP ASSY, OUTER MIRROR, RH
81880DBULB, OUTER MIRROR LAMP ASSY
81880EPULG, OUTER MIRROR LAMP SOCKET
81890CLAMP ASSY, OUTER MIRROR, LH
87810MIRROR ASSY, INNER REAR VIEW
HONG KONG SPEC,IVORY,TRIM04
HONG KONG SPEC,ECRU,TRIM03
TAIWAN SPEC,NEW IVORY,TRIM07
TAIWAN SPEC,MEDIUM CHARCOAL,TRIM1#,2#
TAIWAN SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
ECRU,TRIM03
MEDIUM CHARCOAL,TRIM1#,2#
ECRU,TRIM00
NEW IVORY,TRIM07
THAILAND SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
ECRU,TRIM03
SINGAPOLE SPEC & W(SMART KEY SYSTEM),NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM1#,2#
SINGAPOLE SPEC & W(SMART KEY SYSTEM),NEW GRAY,TRIM1#,21,24
SINGAPORE SPEC,IVORY,TRIM04
SINGAPORE SPEC,ECRU,TRIM00
SINGAPOLE SPEC,NEW IVORY,TRIM01,07
SINGAPORE SPEC,MEDIUM CHARCOAL,TRIM1#,2#
SINGAPOLE SPEC,NEW GRAY,TRIM1#,20,21,24
KOREA SPEC,IVORY,TRIM04
KOREA SPEC,ECRU,TRIM03
KOREA SPEC,MEDIUM CHARCOAL,TRIM1#,2#
HONG KONG SPEC,NEW IVORY,TRIM01,07
HONG KONG SPEC,ECRU,TRIM00
HONG KONG SPEC,NEW GRAY,TRIM1#,20,21,24
NEW IVORY,TRIM07
ECRU,TRIM00
NEW GRAY,TRIM1#,21,24
W(SMART KEY SYSTEM),NEW GRAY,TRIM2#
87816SPRING, INNER REAR VIEW MIRROR
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
IVORY,TRIM04
ECRU,TRIM03
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS.,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
87915COVER, OUTER MIRROR, RH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN MC.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
87931OUTER MIRROR, RH
WIDE VIEW MIRROR
87945COVER, OUTER MIRROR, LH
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILKY WHITE PEARL CS,072
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN MC.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
87961MIRROR OUTER, LH
WIDE VIEW MIRROR
9010506216
main90105-06216
9331915012
main93319-15012
16 parts on this diagram · 1 diagram in section
