TELEPHONE & MAYDAY

8601

86250DMICROPHONE ASSY, AMPLIFIER

main86250-50030iUCF30..LHD..EUR200105-200107

sub86250-50050

main86250-50050iUCF30..LHD..EUR200107-200307

main86250-50060iUCF30..RHD200307-200608

main86250-50070iUCF30..LHD200307-200608

86282BBRACKET, MICROPHONE

main86282-50040iUCF30200307-200608

86290CAMPLIFIER ASSY, MICROPHONE

main86290-50020iUCF30200307-200608

86729BRACKET, MOBILEPHONE

main86729-50260iUCF30..ARL,EUR200307

86761ROD, TELEPHONE ANTENNA

main86761-50050iUCF30200008-200211

sub86761-50051

main86761-50051iUCF30200211-200307

86762BASE, TELEPHONE ANTENNA

main86762-50050iUCF30200008-200211

sub86762-50051

main86762-50051iUCF30200211-200307

87268EPROTECTOR, TELEPHONE ANTENNA

main87268-50010iUCF30200008-200211

sub87268-50011

main87268-50011iUCF30200211-200307

9018206003

main90182-06003

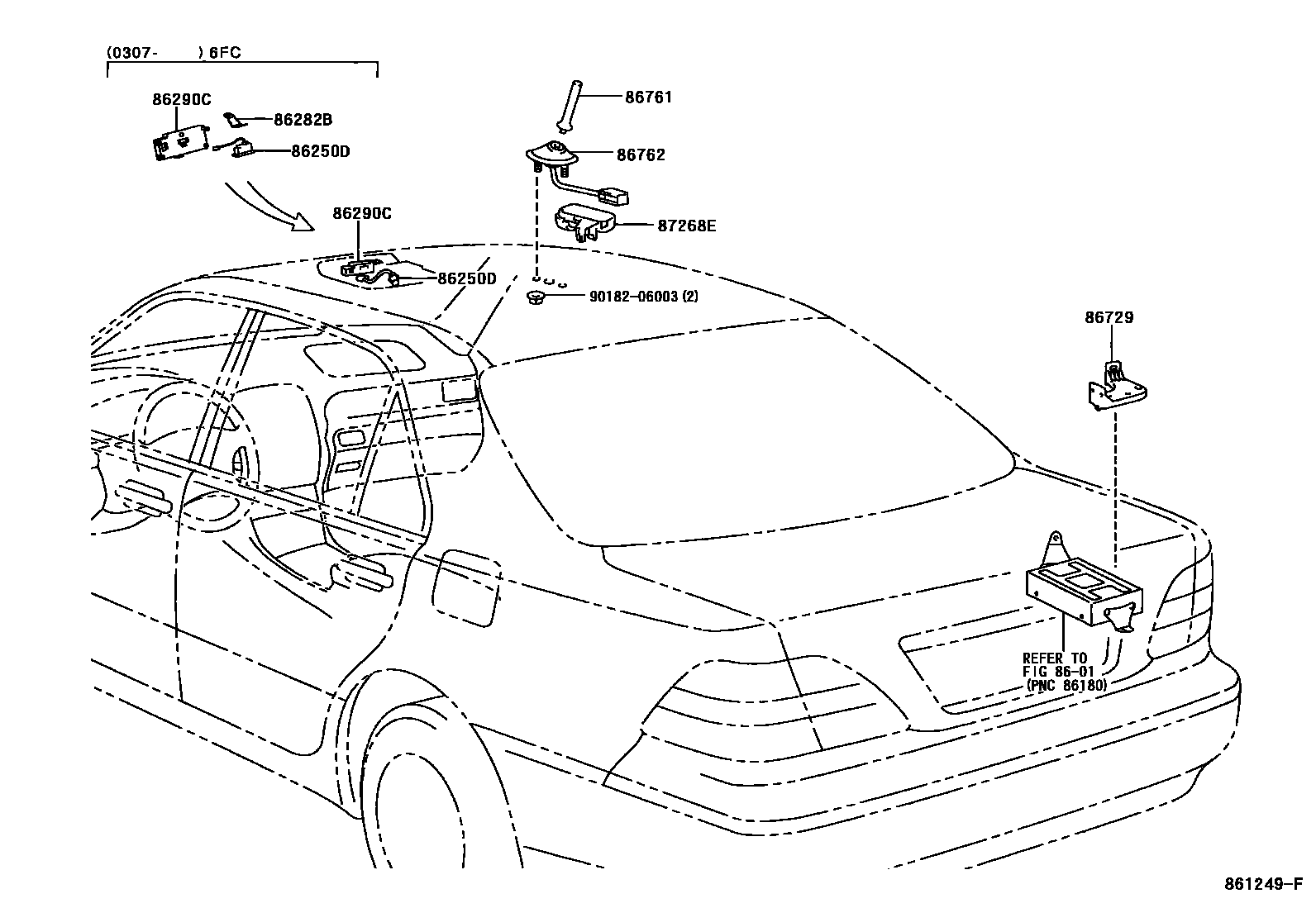

9 parts on this diagram · 1 diagram in section
