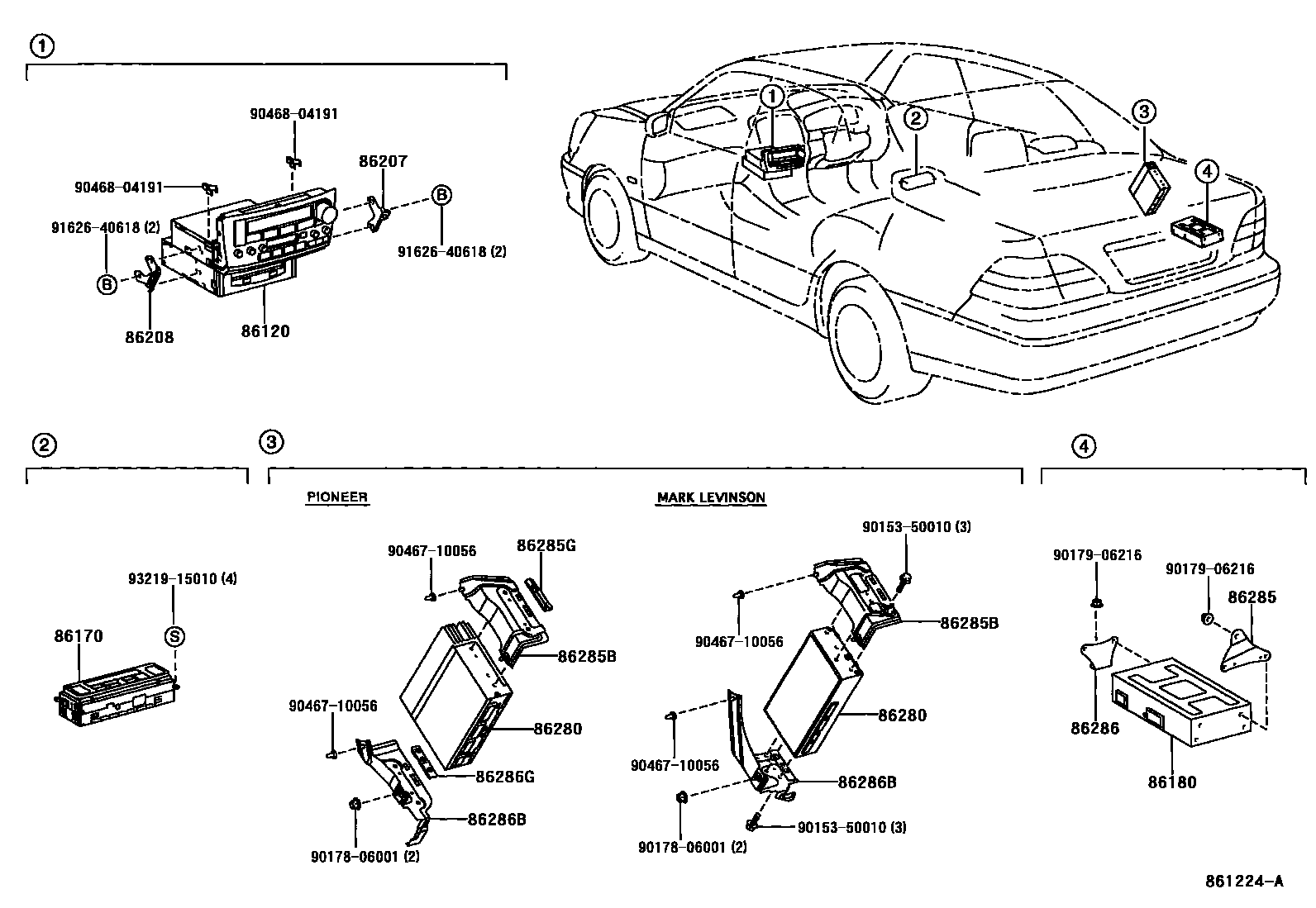

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-50770iUCF30..LHD..EUR200008-200107

PIONEER,ID=P3900,TYPE A:REFER TO ILLUSTRATION & MARK LEVINSON

sub86120-50771

main86120-50771iUCF30..LHD..EUR200107-200307

PIONEER,ID=P3908,TYPE A:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-50780iUCF30..RHD..EUR200008-200107

PIONEER,ID=P3901,TYPE B:REFER TO ILLUSTRATION & MARK LEVINSON

sub86120-50781

main86120-50781iUCF30..RHD200107-200307

PIONEER,ID=P3909,TYPE B:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-50820iUCF30..LHD..EUR200107-200307

PIONEER,ID=P6815,TYPE D:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-50830iUCF30..LHD..EUR200008-200307

PIONEER,ID=P6811,TYPE D:REFER TO ILLUSTRATION

main86120-50840iUCF30..LHD..EUR¥210,000200008-200307

PIONEER,ID=P3902,TYPE C:REFER TO ILLUSTRATION

main86120-50850iUCF30..RHD..EUR¥210,000200008-200307

PIONEER,ID=P3903,TYPE E:REFER TO ILLUSTRATION

main86120-50860iUCF30..GCC¥210,000200008-200307

PIONEER,ID=P7802,TYPE F:REFER TO ILLUSTRATION

main86120-50880iUCF30..ARL,EUR¥210,000200008-200307

PIONEER,ID=P7801,TYPE G:REFER TO ILLUSTRATION

main86120-50B30iUCF30..LHD..EUR200307

PIONEER,ID=P6836,TYPE A:REFER TO ILLUSTRATION

main86120-50B50iUCF30..LHD..EUR¥232,000200307

PIONEER,ID=P6837,TYPE B:REFER TO ILLUSTRATION

main86120-50C10iUCF30..RHD200307

PIONEER,ID=P7824,TYPE C:REFER TO ILLUSTRATION

main86120-50C30iUCF30..LHD..EUR200307

PIONEER,ID=P7825,TYPE D:REFER TO ILLUSTRATION

main86120-50C50iUCF30..RHD..EUR200307

PIONEER,ID=P3928,TYPE E:REFER TO ILLUSTRATION

main86120-50C70iUCF30..LHD..EUR200307

PIONEER,ID=P3926,TYPE F:REFER TO ILLUSTRATION

main86120-50C90iUCF30..LHD..EUR200307

PIONEER,ID=P3922,TYPE I:REFER TO ILLUSTRATION

main86120-50D10iUCF30..ARL200307

PIONEER,ID=P3924,TYPE J:REFER TO ILLUSTRATION

main86120-50D30iUCF30..LHD..EUR200307

PIONEER,ID=P3923,TYPE K:REFER TO ILLUSTRATION

main86120-50D50iUCF30..RHD200307

PIONEER,ID=P3925,TYPE L:REFER TO ILLUSTRATION

main86120-50D70iUCF30..GCC200307

PIONEER,ID=P7827,TYPE M:REFER TO ILLUSTRATION

main86120-50D90iUCF30..GCC200307

PIONEER,ID=P7828,TYPE N:REFER TO ILLUSTRATION

main86120-50E10iUCF30..LHD..EUR200307

PIONEER,ID=P7826,TYPE G:REFER TO ILLUSTRATION

main86120-50E30iUCF30..RHD..EUR200307

PIONEER,ID=P7822,TYPE H:REFER TO ILLUSTRATION

main86120-50E50iUCF30..LHD..EUR200408

PIONEER,ID=P2501,FORMOSA SPEC,TYPE P:REFER ILLUST.

main86120-50E70iUCF30..LHD..EUR200408

PIONEER,ID=P2500,CHINA SPEC,TYPE P:REFER ILLUST.

main86120-5A060iUCF30..LHD..EUR200101-200107

PIONEER,ID=P3906,TYPE H:REFER TO ILLUSTRATION

sub86120-5A061

main86120-5A061iUCF30..LHD..EUR200107-200307

PIONEER,ID=P3910,TYPE H:REFER TO ILLUSTRATION

main86120-5A080iUCF30..RHD..EUR200101-200107

PIONEER,ID=P3907,TYPE I:REFER TO ILLUSTRATION

sub86120-5A081

main86120-5A081iUCF30..RHD200107-200307

PIONEER,ID=P3911,TYPE I:REFER TO ILLUSTRATION

main86120-5A100iUCF30..EUR200107-200307

PIONEER,ID=P7808,TYPE G:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-5A120iUCF30..LHD..EUR200107-200307

PIONEER,ID=P3912,TYPE C:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-5A140iUCF30..RHD..EUR200107-200307

PIONEER,ID=P3913,TYPE E:REFER TO ILLUSTRATION & MARK LEVINSON

main86120-5A160iUCF30..GCC200107-200307

PIONEER,ID=P7805,TYPE F:REFER TO ILLUSTRATION & MARK LEVINSON

86170SWITCH AND VOLUME ASSY, RADIO

main86170-50110iUCF30¥96,100200008-200307

main86170-50160iUCF30¥96,300200307-200608

86180TUNER ASSY, STEREO COMPONENT

main86180-50110iUCF30..LHD..EUR200008-200107

SOUTH AMERICA SPEC

sub86180-50111

main86180-50111iUCF30..LHD..EUR200107-200208

SOUTH AMERICA SPEC

main86180-50112iUCF30..LHD..EUR200208-200307

SOUTH AMERICA SPEC

main86180-50120iUCF30..EUR200008-200107

sub86180-50121

main86180-50121iUCF30..EUR200107-200307

W(EMV)

main86180-50122iUCF30..EUR200307

TYPE A:REFER TO ILLUSTRATION

main86180-50130iUCF30..GCC200008-200307

main86180-50150iUCF30..EUR200008-200101

HONG KONG OR TAIWAN OR SINGAPOLE OR KOREA OR THAILAND OR CHINA SPEC

main86180-50150iUCF30..ARL200008-200307

main86180-50150iUCF30..EUR200101-200307

AM/FM & CASSETTE & 7 SPEAKER & MARK LEVINSON;AM/FM & CASSETTE & 7 SPEAKER OR 9 SPEAKER

main86180-50151iUCF30..ARL,EUR200307-200408

TYPE B:REFER TO ILLUSTRATION

sub86180-50152¥51,200

main86180-50152iUCF30..ARL,EUR¥51,200200408

TYPE B:REFER TO ILLUSTRATION

main86180-50200iUCF30..LHD..EUR¥51,200200307

W(NAVIGATION SYSTEM & AM/FM)

main86180-50220iUCF30..RHD200307

LW/MW/FM & W(EMV)

main86180-50220iUCF30..RHD200307

AM/FM & W(EMV)

main86180-50240iUCF30..GCC200307

86207BRACKET SUB-ASSY, RADIO RECEIVER, RH

main86207-50010iUCF30¥670200008-200307

86208BRACKET SUB-ASSY, RADIO RECEIVER, LH

main86208-50010iUCF30¥670200008-200307

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W040iUCF30..EUR¥176,000200008-200108

MARK LEVINSON

sub86280-0W041¥176,000

main86280-0W041iUCF30¥176,000200108-200307

MARK LEVINSON

main86280-0W250iUCF30¥178,000200307

MARK LEVINSON

main86280-50260iUCF30200008-200107

PIONEER

main86280-50261iUCF30200107-200307

PIONEER

main86280-50330iUCF30¥178,000200307

PIONEER

86285BRACKET, AMPLIFIER, NO.1

main86285-50100iUCF30¥780200008-200307

86285BBRACKET, AMPLIFIER, NO.1

main86285-50090iUCF30¥1,490200008-200307

PIONEER

main86285-50110iUCF30..EUR¥1,400200008-200307

MARK LEVINSON

86285GGUIDE, AMPLIFIER BRACKET, NO.1

main82876-22010iUCF30¥370200008-200307

86286BRACKET, AMPLIFIER, NO.2

main86286-50030iUCF30¥610200008-200307

86286BBRACKET, AMPLIFIER, NO.2

main86286-50020iUCF30¥1,600200008-200307

PIONEER

main86286-50040iUCF30..EUR¥1,780200008-200307

MARK LEVINSON

86286GGUIDE, AMPLIFIER BRACKET, NO.2

main82871-22010iUCF30¥540200008-200307

9015350010

main90153-50010¥70

9017806001

main90178-06001¥90

9017906216

main90179-06216¥130

9046710056

main90467-10056¥160

9046804191

main90468-04191¥90

9162640618

main91626-40618¥90

9321915010

main93219-15010¥160

19 parts on this diagram · 7 diagrams in section
