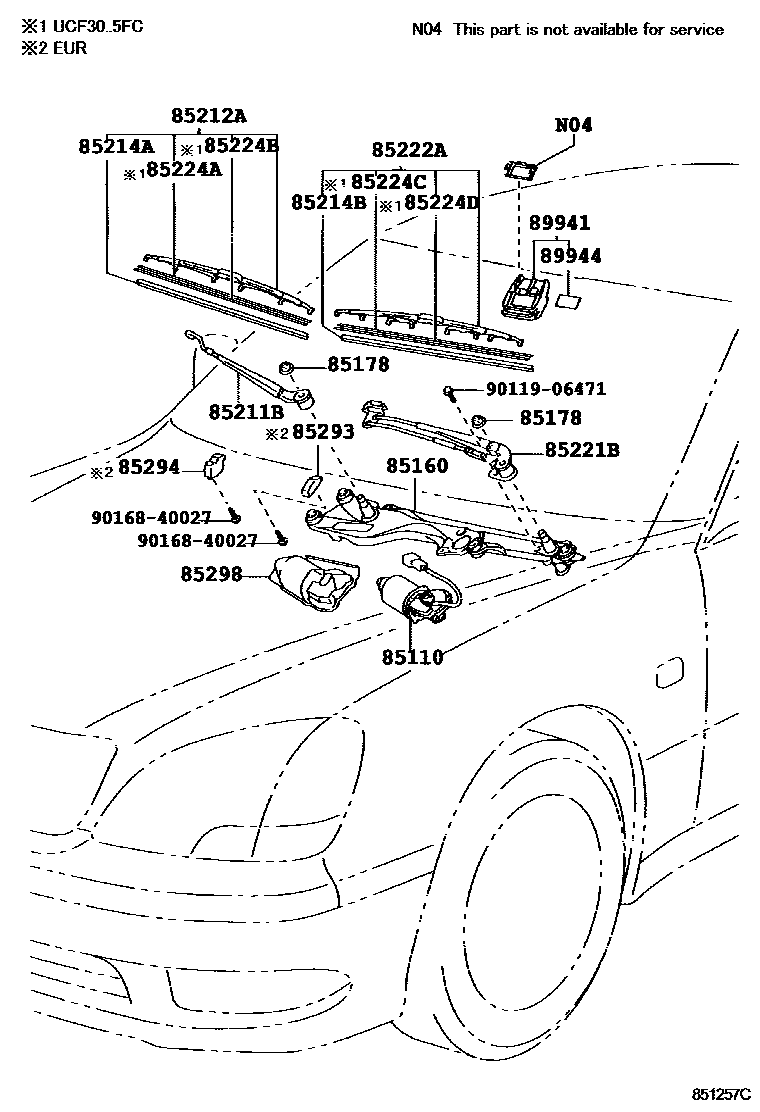

WINDSHIELD WIPER
85110MOTOR ASSY, WINDSHIELD WIPER
85160LINK ASSY, WINDSHIELD WIPER
85178NUT (FOR FRONT WIPER ARM SETTING)
85211BARM, FRONT WIPER, RH
85214ARUBBER, WIPER, RH
85214BRUBBER, WIPER, LH
85221BARM, FRONT WIPER, LH
85224APLATE, WIPER RUBBER BACKING, NO.1
85224BPLATE, WIPER RUBBER BACKING, NO.2
85224CPLATE, WIPER RUBBER BACKING, NO.3
85224DPLATE, WIPER RUBBER BACKING, NO.4
85293STEP, LINEAR WIPER, RH
85294STEP, LINEAR WIPER, LH
85298COVER, WIPER MOTOR
9011906471
main90119-06471
9016840027
main90168-40027
20 parts on this diagram · 2 diagrams in section
