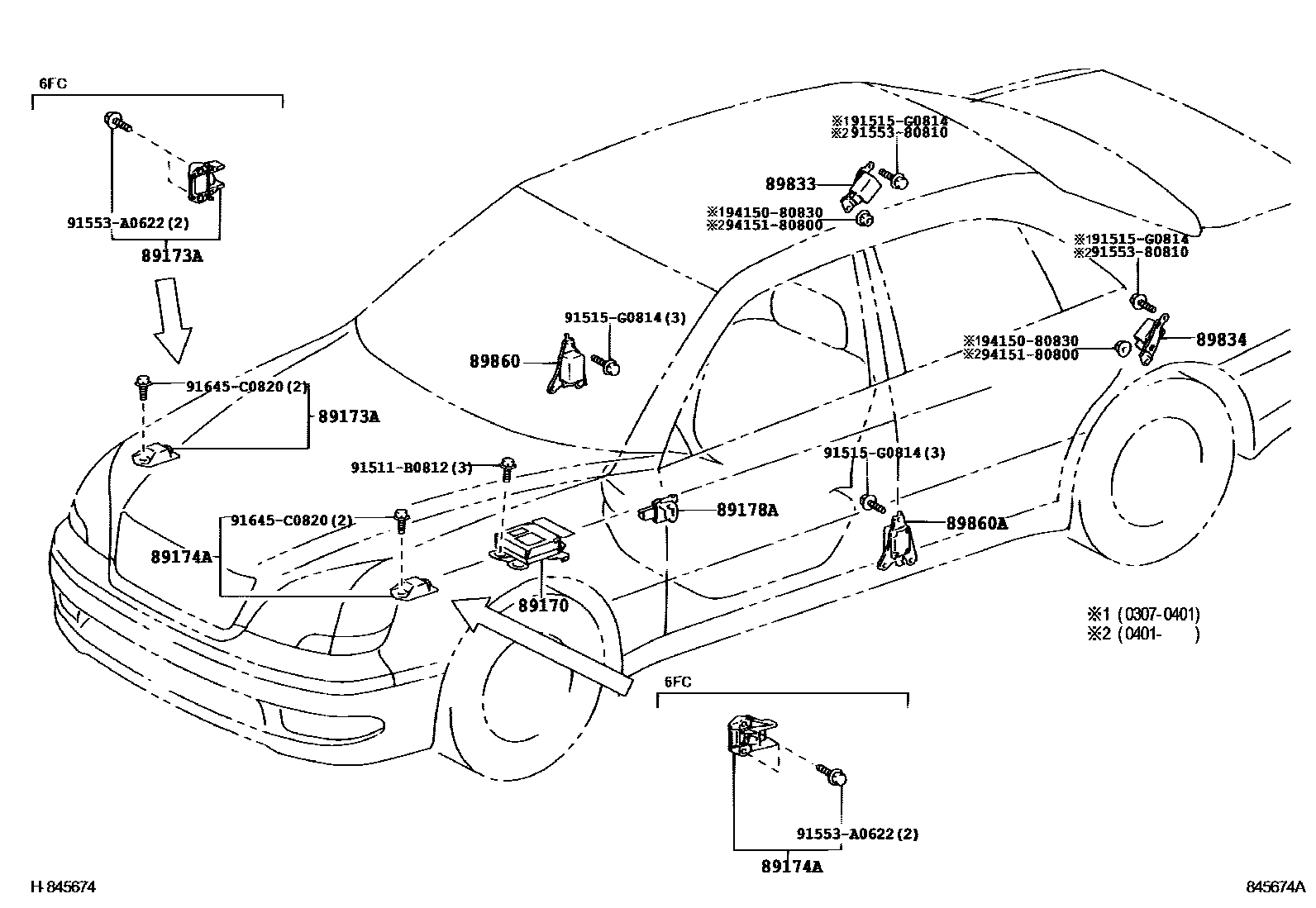

AIR BAG

0001 1 0002 1

89170SENSOR ASSY, AIRBAG

main89170-50080iUCF30..RHD200008-200107

main89170-50090iUCF30..LHD200008-200107

main89170-50110iUCF30..RHD200107-200307

main89170-50120iUCF30..LHD200107-200307

main89170-50150iUCF30..RHD200307

main89170-50170iUCF30..LHD200307

89173ASENSOR, AIRBAG, FRONT RH

main89173-49325iUCF30200307

main89173-59115iUCF30200008-200107

main89173-59195iUCF30200107-200307

89174ASENSOR, AIRBAG, FRONT LH

main89173-49325iUCF30200307

main89173-59115iUCF30200008-200107

main89173-59195iUCF30200107-200307

89178ASENSOR, SEAT POSITION AIRBAG

main89178-06020iUCF30200107-200307

89833SENSOR, AIRBAG, REAR RH

main89833-50010iUCF30200008-200107

main89833-50030iUCF30200107-200307

89834SENSOR, AIRBAG, REAR LH

main89834-50010iUCF30200008-200107

main89834-50030iUCF30200107-200307

89860SENSOR ASSY, SIDE AIRBAG, RH

main89860-50060iUCF30200008-200107

main89860-50080iUCF30200107-200307

main89860-50090iUCF30200307

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89830-50060iUCF30200008-200107

main89830-50080iUCF30200107-200307

main89830-50090iUCF30200307

91511B0812

main91511-B0812

91515G0814

main91515-G0814

9155380810

main91553-80810

91553A0622

main91553-A0622

91645C0820

main91645-C0820

9415080830

main94150-80830

9415180800

main94151-80800

15 parts on this diagram · 2 diagrams in section
