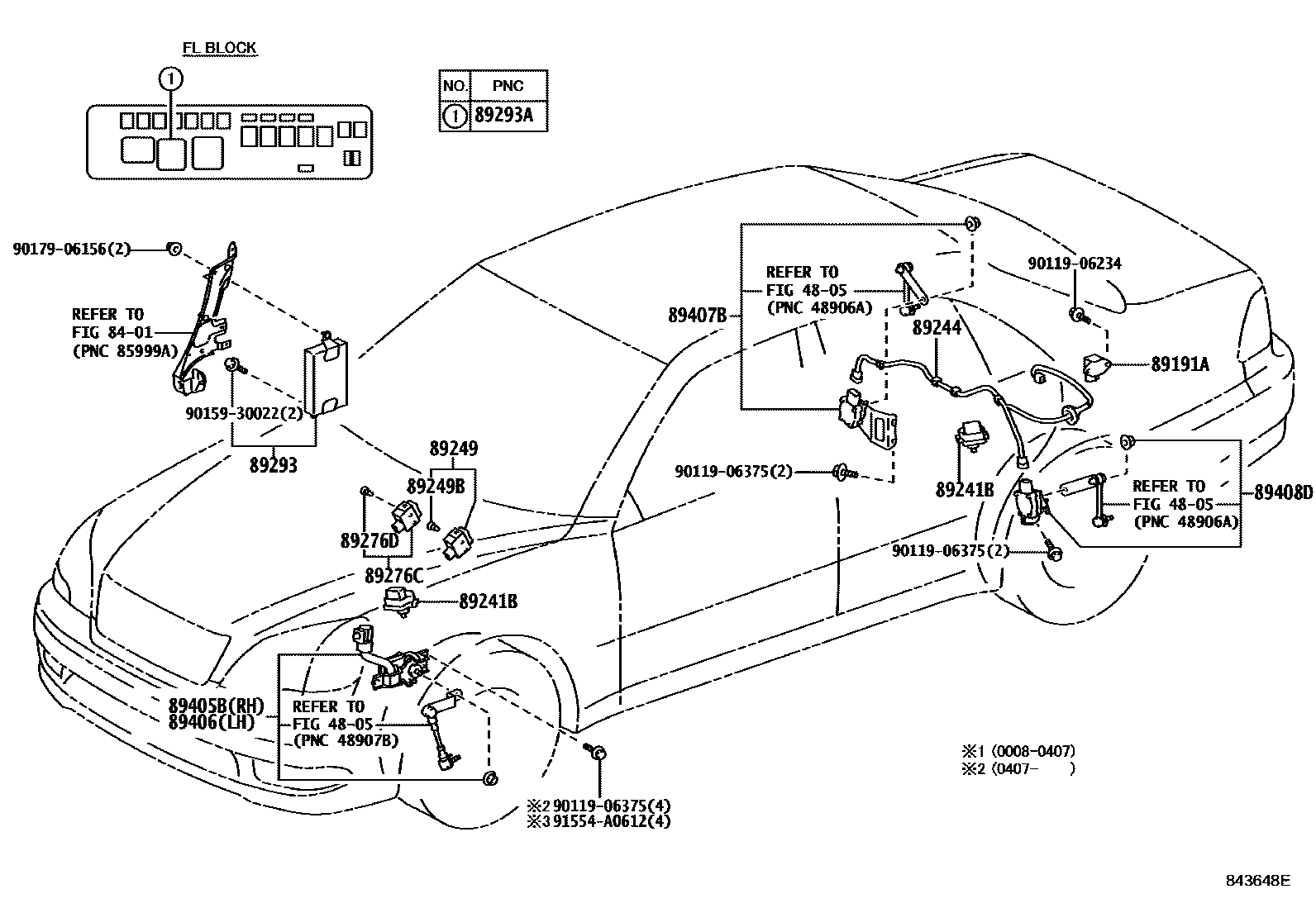

ELECTRONIC MODULATED SUSPENSION
4805
8401
89241BACTUATOR, ABSORBER CONTROL
sub89241-30041
89244WIRE, ABSORBER CONTROL, REAR
89249SWITCH, ABSORBER CONTROL
89249BBULB, ABSORBER CONTROL SWITCH
14V0.84W,W/GREEN CAP
89276CSWITCH, HEIGHT CONTROL
sub89276-30030
89276DBULB, (FOR HEIGHT CONTROL SWITCH)
14V0.84W,W/GREEN CAP
89293ARELAY, SUSPENSION CONTROL
89405BSENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH
89406SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH
89407BSENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH
89408DSENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH
9011906234
main90119-06234
9011906375
main90119-06375
9015930022
main90159-30022
9017906156
main90179-06156
91554A0612
main91554-A0612
20 parts on this diagram · 2 diagrams in section
