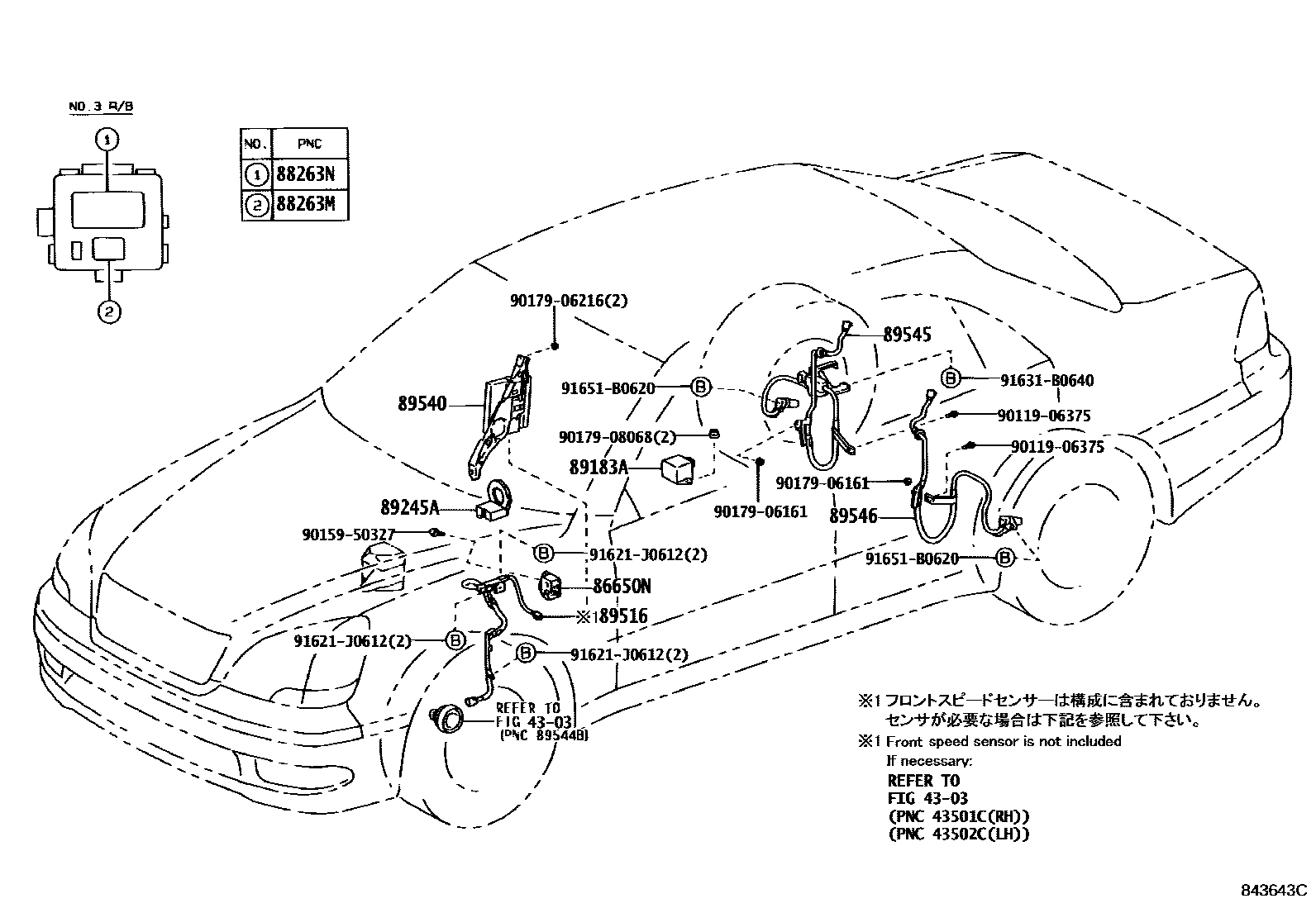

ABS & VSC

0001 1 0002 1 0003 1 0004 1

4303

86650NBUZZER ASSY

main86650-5A010iUCF30200008-200307

main86650-5A040iUCF30..RHD200307

main86650-5A050iUCF30..LHD200307

88263MRELAY, ABS SOLENOID

main88263-32070iUCF30200008-200307

88263NRELAY, ABS MOTOR

main88263-21010iUCF30200307

main88263-30150iUCF30200008-200307

89183ASENSOR, YAWRATE

main89183-30060iUCF30200008-200307

main89183-50020iUCF30200307

sub89183-60020

89245ASENSOR, STEERING

main89245-12010iUCF30..ARL200008-200307

HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC

main89245-48010iUCF30..EUR,GCC200307-200406

sub89245-48011

main89245-48011iUCF30..EUR,GCC200406-200608

sub89245-30080

main89245-48020iUCF30..RHD..EUR200307-200608

HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC

sub89245-30080

main89245-50030iUCF30..EUR,GCC200008-200307

89516WIRE, SKID CONTROL SENSOR

main89516-50010iUCF30200008-200307

RH

main89516-50020iUCF30200008-200307

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-50120iUCF30..RHD200008-200107

sub89540-50140

main89540-50130iUCF30..LHD200008-200107

sub89540-50150

main89540-50140iUCF30..RHD200107-200307

main89540-50150iUCF30..LHD200107-200307

89545SENSOR, SPEED, REAR RH

main89545-50040iUCF30200008-200307

main89545-50050iUCF30200307

89546SENSOR, SPEED, REAR LH

main89546-50040iUCF30200008-200307

main89546-50050iUCF30200307

9011906375

main90119-06375

9015950327

main90159-50327

9017906161

main90179-06161

9017906216

main90179-06216

9017908068

main90179-08068

91621J0612

main91621-J0612

91631B0640

main91631-B0640

91651B0620

main91651-B0620

18 parts on this diagram · 4 diagrams in section
