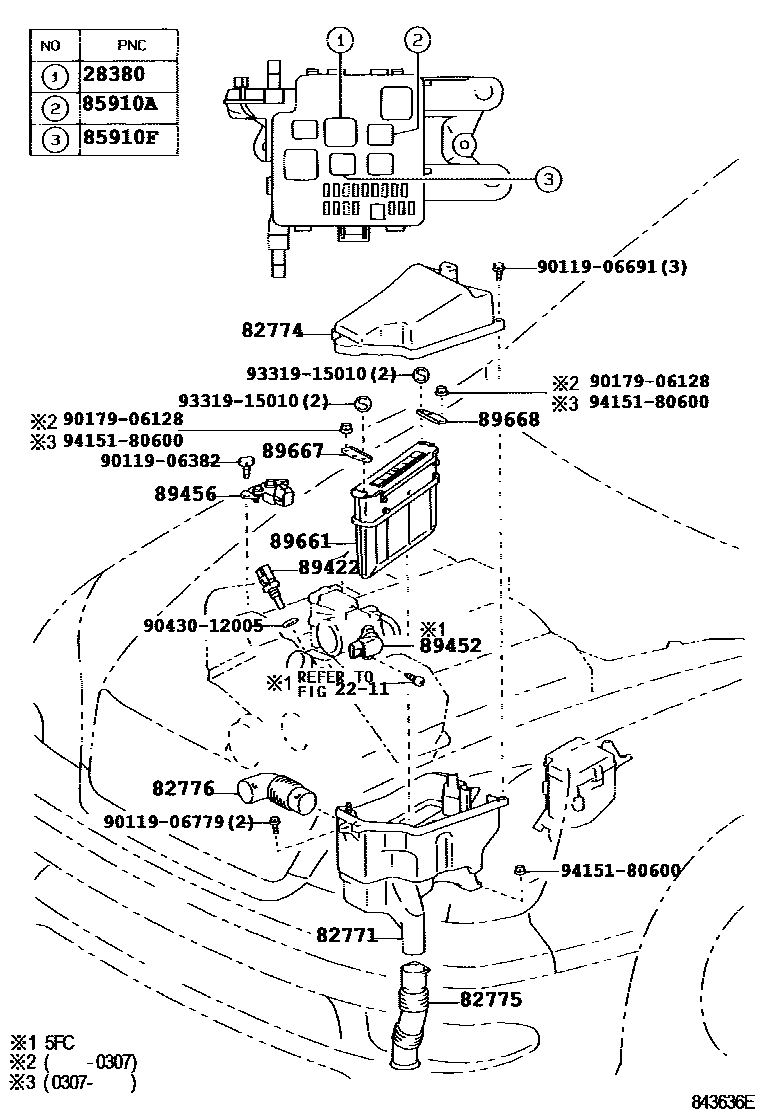

ELECTRONIC FUEL INJECTION SYSTEM

2211

28380RELAY ASSY, FUEL PUMP

main90987-03003i3UZFE..UCF30200008-200307

82771BOX, ENGINE ROOM ECU

main82771-50010iUCF30200008-200307

82774COVER, ENGINE ROOM ECU

main82774-50010iUCF30200008-200307

82775DUCT, ENGINE ROOM ECU INLET

main82775-50010iUCF30200008-200307

82776DUCT, ENGINE ROOM ECU OUTLET

main82776-50010iUCF30200008-200307

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iUCF30200008-200307

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iUCF30200008-200307

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30030iUCF30200008-200608

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-30150iUCF30200008-200307

89456RESISTOR, VARIABLE

main89450-50050iUCF30..GCC200008-200307

89661COMPUTER, ENGINE CONTROL

main89661-50580iUCF30..EUR200008-200107

PART NUMBER LABEL=89661-50580

main89661-50600iUCF30..ARL200008-200307

main89661-50610iUCF30..GCC200008-200307

main89661-50620iUCF30..EUR200008-200307

PART NUMBER LABEL=89661-50620

main89661-50630iUCF30..LHD..EUR200008-200307

TAIWAN SPEC

main89661-50650iUCF30..GCC200107-200307

SAUDI ARABIA SPEC

main89661-50670iUCF30..EUR200107-200307

main89661-50700iUCF30..LHD..EUR200307-200407

PART NUMBER LABEL=89661-50700

sub89661-50790

main89661-50720iUCF30..EUR200307-200408

PART NUMBER LABEL=89661-50720

main89661-50730iUCF30..ARL200307-200408

PART NUMBER LABEL=89661-50730

main89661-50740iUCF30..GCC200307-200407

PART NUMBER LABEL=89661-50740

sub89661-50830

main89661-50750iUCF30..EUR200307-200411

PART NUMBER LABEL=89661-50750

main89661-50760iUCF30..GCC200307-200407

PART NUMBER LABEL=89661-50760

sub89661-50850

main89661-50790iUCF30..LHD..EUR200408

PART NUMBER LABEL=89661-50790

main89661-50810iUCF30..EUR200408

PART NUMBER LABEL=89661-50810

main89661-50820iUCF30..ARL200408-200507

PART NUMBER LABEL=89661-50820

main89661-50830iUCF30..GCC200408

PART NUMBER LABEL=89661-50830

main89661-50840iUCF30..EUR200412

PART NUMBER LABEL=89661-50840

main89661-50850iUCF30..GCC200408

PART NUMBER LABEL=89661-50850

main89661-50890iUCF30..ARL200507

main89661-50A00iUCF30..LHD..EUR200505

PART NUMBER LABEL=89661-50A00

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-50030iUCF30..ARL200008-200506

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-50030iUCF30200008-200506

9011906382

main90119-06382

9011906691

main90119-06691

9011906779

main90119-06779

9017906128

main90179-06128

9043012005

main90430-12005

9331915010

main93319-15010

9415180600

main94151-80600

21 parts on this diagram · 1 diagram in section
