METER

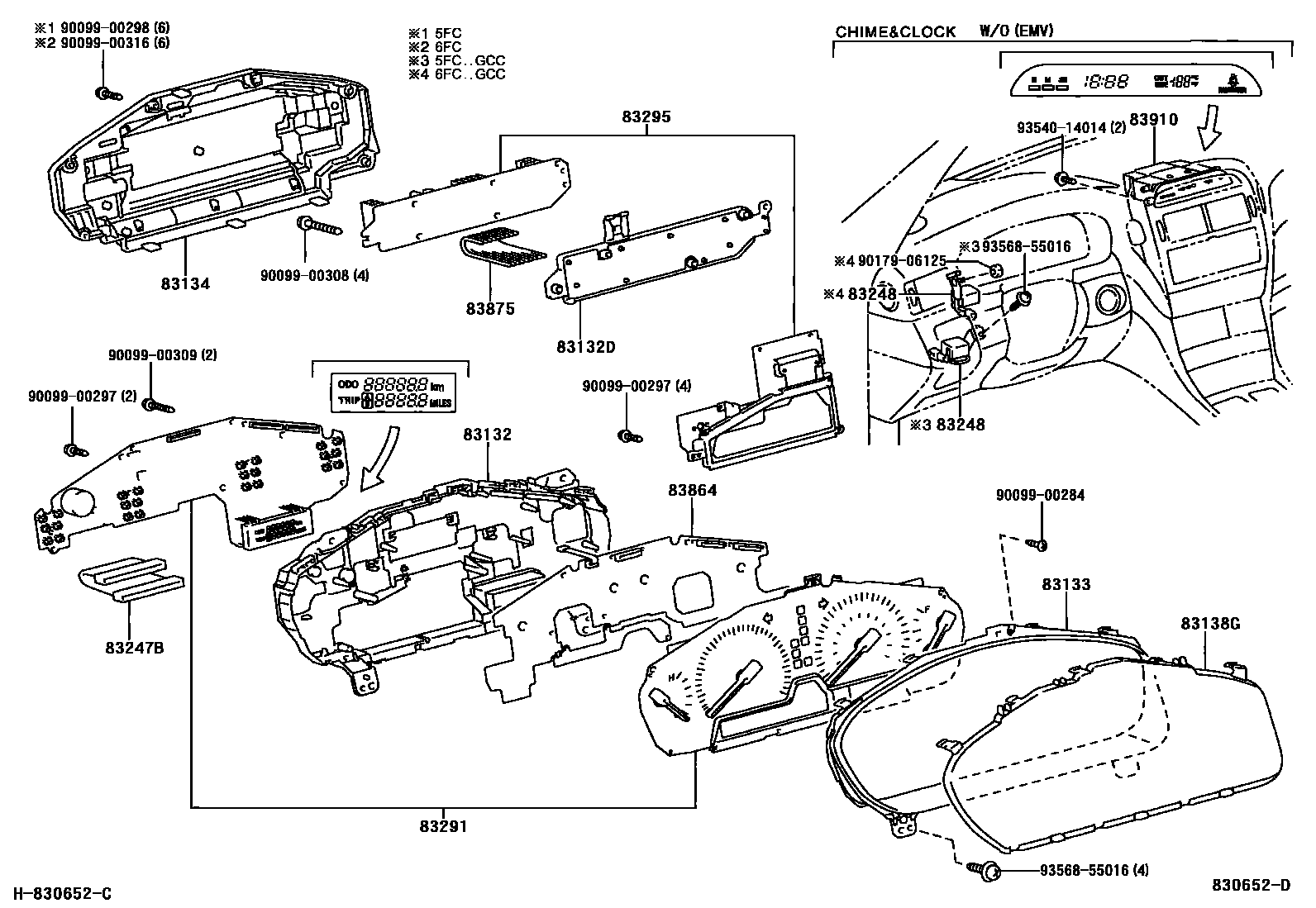

Parts diagram

83132CASE, COMBINATION METER

main83841-50100i200008-200307

main83841-50200i200307

83132DCASE, COMBINATION METER, NO.2

main83842-50100i200008-200307

main83842-50200i200307

83133PLATE, COMBINATION METER, NO.1

main83811-50100i200008-200307

83134COVER, COMBINATION METER, NO.1

main83821-50100i200008-200307

main83821-50200i200307

83138GGLASS, COMBINATION METER

main83852-50100i200008-200307

83247BPLATE, METER CIRCUIT, NO.2

main83861-50100i200008-200307

83248CHIME, SPEED WARNING

main86640-50060i200008-200307

main86640-50070i200307

83291COMPUTER, COMBINATION METER

main83801-50110i200008-200107

TAIWAN SPEC

main83801-50111i200107-200304

TAIWAN SPEC

main83801-50113i200304-200307

TAIWAN SPEC

main83801-50120i200008-200107

main83801-50121i200107-200202

main83801-50122i200202-200304

main83801-50123i200304-200307

main83801-50130i200008-200107

main83801-50131i200107-200304

main83801-50133i200304-200307

main83801-50140i200008-200107

main83801-50141i200107-200202

main83801-50142i200202-200304

main83801-50143i200304-200307

main83801-50160i200008-200107

SINGAPORE OR THAILAND SPEC

main83801-50161i200107-200304

SINGAPORE OR THAILAND SPEC

main83801-50163i200304-200307

SINGAPORE OR THAILAND SPEC

main83801-50170i200008-200107

CYPRUS OR HONG KONG OR SOUTH AFRICA SPEC

main83801-50171i200107-200202

CYPRUS OR HONG KONG OR SOUTH AFRICA SPEC

main83801-50172i200202-200304

CYPRUS OR SOUTH AFRICA SPEC

main83801-50173i200304-200307

CYPRUS OR SOUTH AFRICA SPEC

main83801-50180i200201-200304

KOREA OR CHINA SPEC

main83801-50182i200304-200307

KOREA OR CHINA SPEC

main83801-50190i200201-200304

HONG KONG SPEC

main83801-50192i200304-200307

HONG KONG SPEC

main83801-50210i200307-200408

TAIWAN SPEC

main83801-50211i200408

TAIWAN SPEC

main83801-50220i200307-200408

main83801-50221i200408

main83801-50230i200307-200408

main83801-50231i200408

main83801-50240i200307-200408

main83801-50241i200408

main83801-50260i200307-200408

SINGAPORE OR THAILAND SPEC

main83801-50261i200408

SINGAPORE OR THAILAND SPEC

main83801-50270i200307-200408

CYPRUS OR HONG KONG OR SOUTH AFRICA SPEC

main83801-50271i200408

CYPRUS OR HONG KONG OR IRELAND OR SOUTH AFRICA SPEC

main83801-50310i200408

W(PRE-COLLISION SYSTEM)

main83801-50320i200408

W(PRE-COLLISION SYSTEM)

main83801-50340i200502-200503

CHINA SPEC

main83801-50341i200504

CHINA SPEC

83295PANEL, METER DISPLAY

main83295-50010i200008-200202

main83295-50011i200202-200304

main83295-50012i200304-200307

main83295-50020i200307-200407

main83295-50021i200601

83864PLATE, METER CIRCUIT, NO.4 (FOR COMPUTER)

main83864-50100i200008-200307

TAIWAN SPEC

main83864-50120i200008-200307

main83864-50130i200008-200307

main83864-50140i200008-200307

main83864-50160i200008-200307

SINGAPORE OR THAILAND SPEC

main83864-50170i200008-200104

HONG KONG OR SOUTH AFRICA SPEC

main83864-50390i200307

TAIWAN SPEC

main83864-50400i200307

main83864-50410i200307

main83864-50420i200307

main83864-50430i200307

SINGAPORE OR THAILAND SPEC

83875WIRE, COMBINATION METER, NO.1

main83875-50100i200008-200307

83910CLOCK ASSY

main83910-50020i200008-200307

main83910-50030i200008-200307

9009900284

main90099-00284

9009900297

main90099-00297

9009900298

main90099-00298

9009900308

main90099-00308

9009900309

main90099-00309

9009900316

main90099-00316

9017906125

main90179-06125

9354014014

main93540-14014

9356855016

main93568-55016

21 parts on this diagram · 2 diagrams in section
