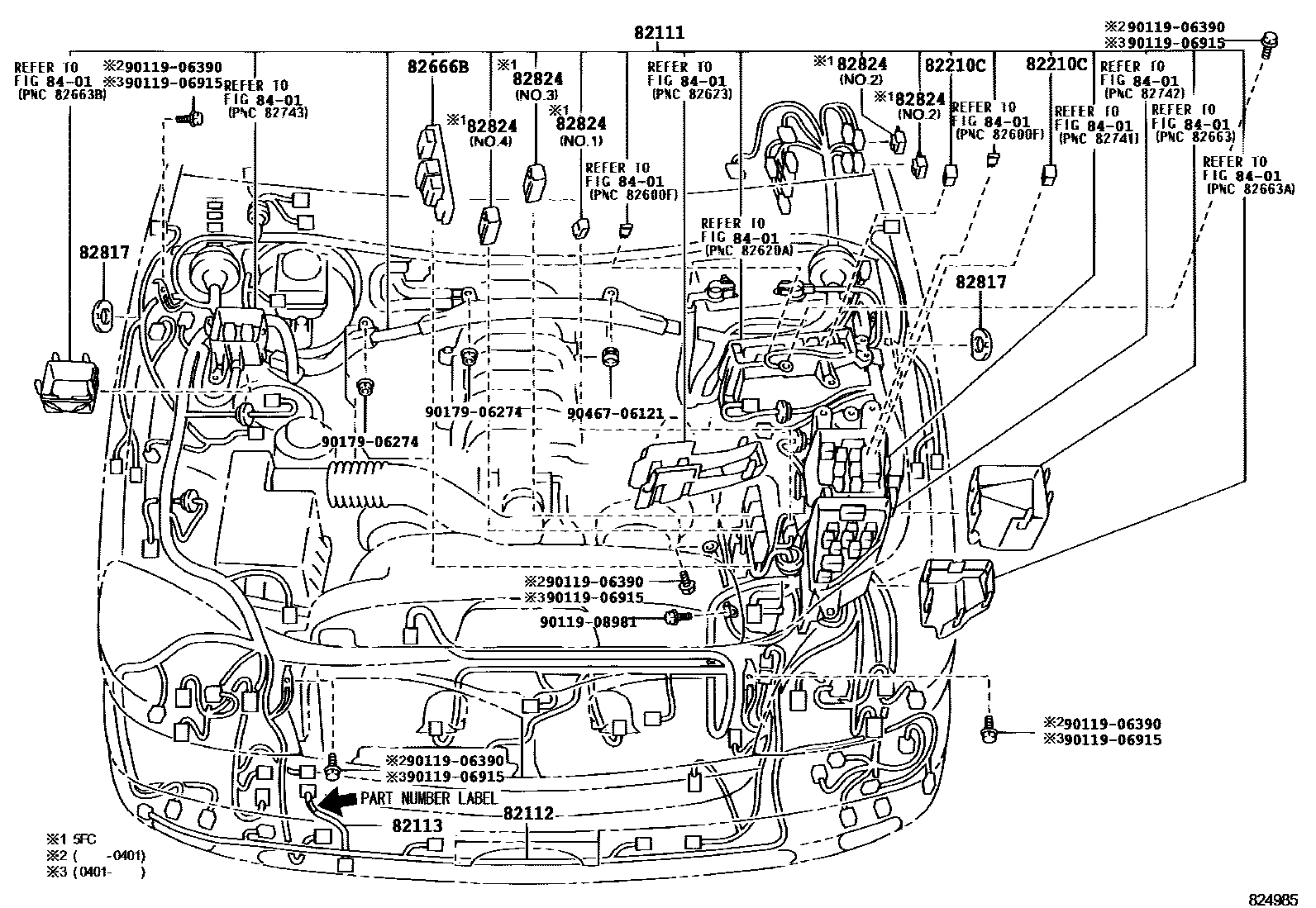

WIRING & CLAMP
82111WIRE, ENGINE ROOM MAIN
W(AIR SUSPENSION)
W(AIR SUSPENSION)
W(AIR SUSPENSION)
W(AIR SUSPENSION)
CHINA OR ISRAEL OR SOUTH AMERICA OR TAIWAN SPEC
CHINA OR ISRAEL OR SOUTH AMERICA OR TAIWAN SPEC
HONG KONG OR LEADED GASOLINE OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC
HONG KONG OR LEADED GASOLINE OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC
KOREA OR TAIWAN SPEC & W(AIR SUSPENSIO)
W(AIR SUSPENSION & TEMS)
W(AIR SUSPENSION & TEMS)
CHINA OR ISRAEL OR SOUTH AMERICA OR TAIWAN SPEC
HONG KONG OR SINGAPOLE OR SOUTH AFRICA OR THAILAND SPEC
W(RADAR CRUISE CONTROL)
TAIWAN SPEC & W(AIR SUSPENSION & TEMS)
W(AIR SUSPENSION & TEMS & PRE-COLLISION SYSTEM)
W(AIR SUSPENSION & TEMS & PRE-COLLISION SYSTEM)
HONG KONG SPEC & W(AIR SUSPENSION)
82210CFUSIBLE LINK
60A,TERM.:MALE,YEL
80A,TERM.:MALE,BLK
30A,TERM.:FEMALE,PNK
40A,TERM.:FEMALE,GRN
50A,TERM.:FEMALE,RED
140A,TERM.:MALE,RBR
82666BHOLDER, CONNECTOR NO.3
82817PROTECTOR, WIRING HARNESS, NO.1
82824CONNECTOR, WIRING HARNESS
NO.1
NO.2
NO.3
NO.4
8401
9011906390
main90119-06390
9011906915
main90119-06915
9011908981
main90119-08981
9017906274
main90179-06274
9046706121
main90467-06121
13 parts on this diagram · 19 diagrams in section
