SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

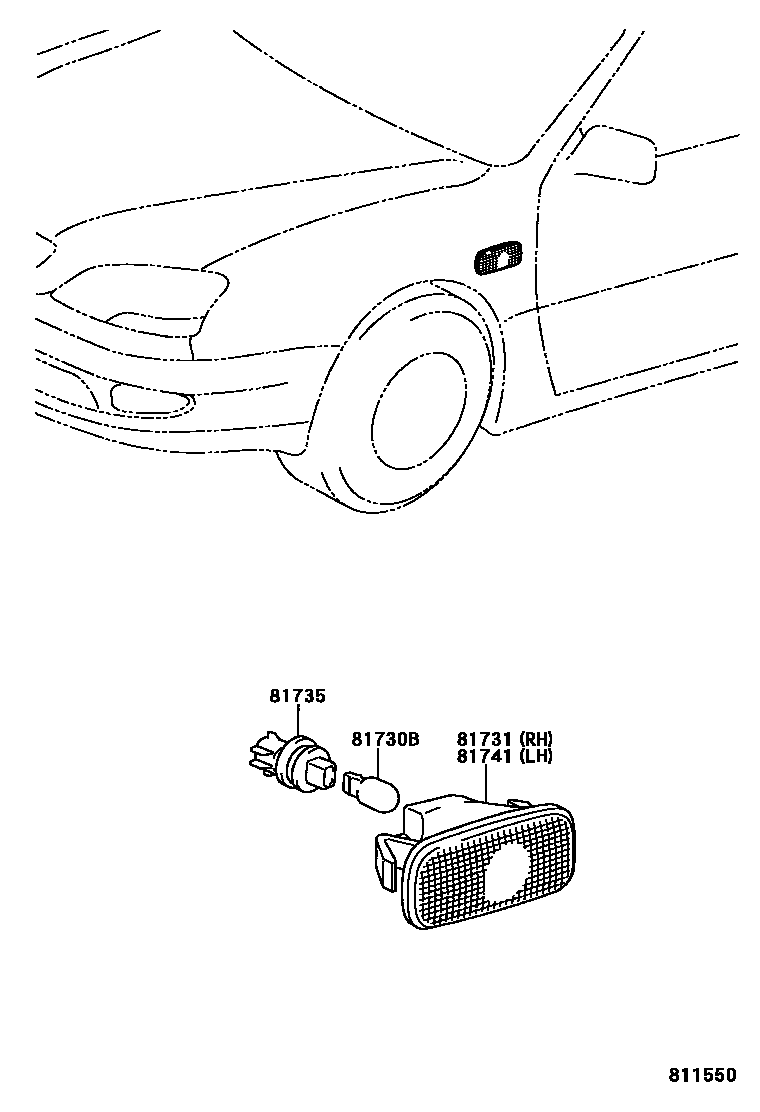

Parts diagram
81730BBULB (FOR SIDE TURN SIGNAL LAMP)
main90981-15012i200008-200307
12V 5W
81731LENS, SIDE TURN SIGNAL LAMP, RH
main81731-51020i200107-200303
sub81731-51021
main81731-51021i200303-200307
main81731-53010i200008-200107
sub81731-53011
81735SOCKET AND WIRE, SIDE TURN SIGNAL LAMP
main90075-60001i200008-200107
main90075-60005i200107-200307
81741LENS, SIDE TURN SIGNAL LAMP, LH
main81731-51020i200107-200303
sub81731-51021
main81731-51021i200303-200307
main81731-53010i200008-200107
sub81731-53011

4 parts on this diagram · 1 diagram in section
