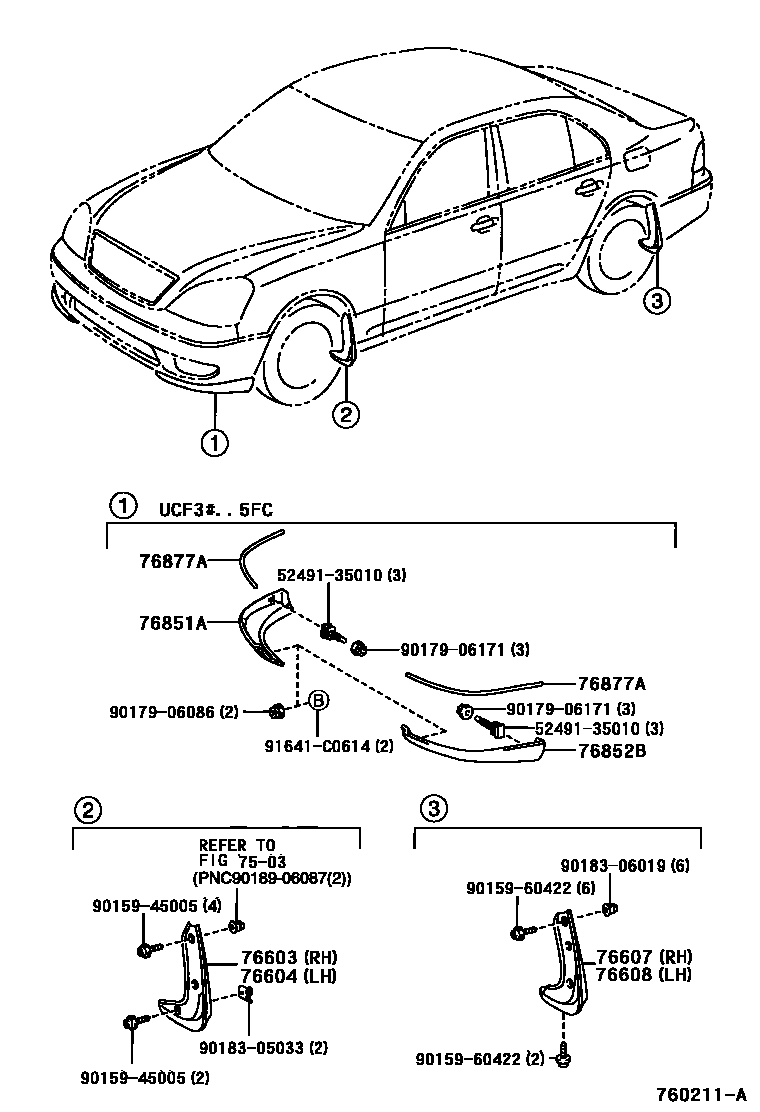

MUDGUARD & SPOILER
7503
76603MUDGUARD SUB-ASSY, FRONT FENDER, RH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
76604MUDGUARD SUB-ASSY, FRONT FENDER, LH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
SILVER ME.,1C0
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
76607MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
*106,SILVER ME.,062
SILVER ME.,1C0
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
76608MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
IVORY PEARL CS.,066
*104,WHITE PEARL CS.,062
*106,SILVER ME.,062
SILVER ME.,1C0
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
*104,WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
*106,SILVER ME.,062
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
76851ACOVER, FRONT SPOILER, RH
76852BSPOILER, FRONT, LH
76877APROTECTOR, FRONT SPOILER
5249135010BOLT, BUMPER PAD
main52491-35010
9015945005
main90159-45005
9015960422
main90159-60422
9017906086
main90179-06086
9017906171
main90179-06171
9018305033
main90183-05033
9018306019
main90183-06019
91641C0614
main91641-C0614
16 parts on this diagram · 1 diagram in section
