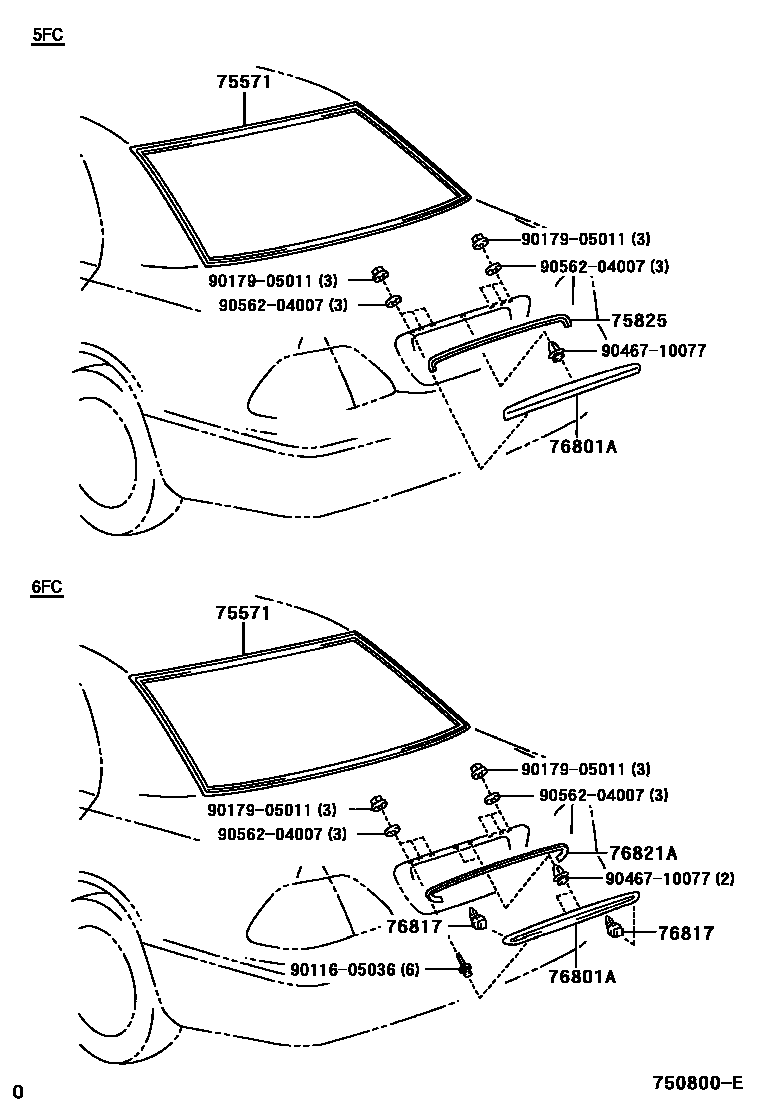

REAR MOULDING
75571MOULDING, BACK WINDOW, OUTSIDE UPPER
75825PAD, LUGGAGE COMPARTMENT DOOR MOULDING
76801AGARNISH SUB-ASSY, LUGGAGE COMPARTMENT DOOR, OUTSIDE
WHITE PEARL CS.,062
IVORY PEARL CS.,066
SILVER ME.,1C0
BLACK,202
BORDEAUX MC.,3P2
ROSE M.M.,3P4
BEIGE ME.,4P7
GREEN M.M.,6S5
DARK GREEN M.M.,6S6
DARK BLUE MC.,8P8
LT. BLUE M.M.,8P7
WHITE PEARL CS.,062
SILKY WHITE PEARL CS,072
DK.GRAY MC.,1E0
PREMIUM SILVER,1F2
BLACK,202
BORDEAUX MC.,3P2
BEIGE ME.,4P7
GRAYISH BROWN M.M.,4S1
OLIVE M.M.,6T7
DARK BLUE MC.,8P8
W(BACK MONITOR),WHITE PEARL CS.,062
W(BACK GUIDE MONITOR),WHITE PEARL CS.,062
W(BACK MONITOR),SILKY WHITE PEARL CS,072
W(BACK GUIDE MONITOR),SILKY WHITE PEARL CS,072
W(BACK MONITOR),DK.GRAY MC.,1E0
W(BACK GUIDE MONITOR),DK.GRAY MC.,1E0
W(BACK GUIDE MONITOR),PREMIUM SILVER,1F2
W(BACK MONITOR),PREMIUM SILVER,1F2
W(BACK MONITOR),BLACK,202
W(BACK GUIDE MONITOR),BLACK,202
W(BACK MONITOR),BORDEAUX MC.,3P2
W(BACK GUIDE MONITOR),BORDEAUX MC.,3P2
W(BACK MONITOR),BEIGE ME.,4P7
W(BACK GUIDE MONITOR),BEIGE ME.,4P7
W(BACK MONITOR),GRAYISH BROWN M.M.,4S1
W(BACK GUIDE MONITOR),GRAYISH BROWN M.M.,4S1
W(BACK MONITOR),OLIVE M.M.,6T7
W(BACK GUIDE MONITOR),OLIVE M.M.,6T7
W(BACK MONITOR),DARK BLUE MC.,8P8
W(BACK GUIDE MONITOR),DARK BLUE MC.,8P8
76817CLIP, BACK DOOR OUTSIDE GARNISH
76821APROTECTOR, LUGGAGE COMPARTMENT DOOR OUTSIDE GARNISH
9011605036
9017905011
9046710077
9056204007
9 parts on this diagram · 1 diagram in section
