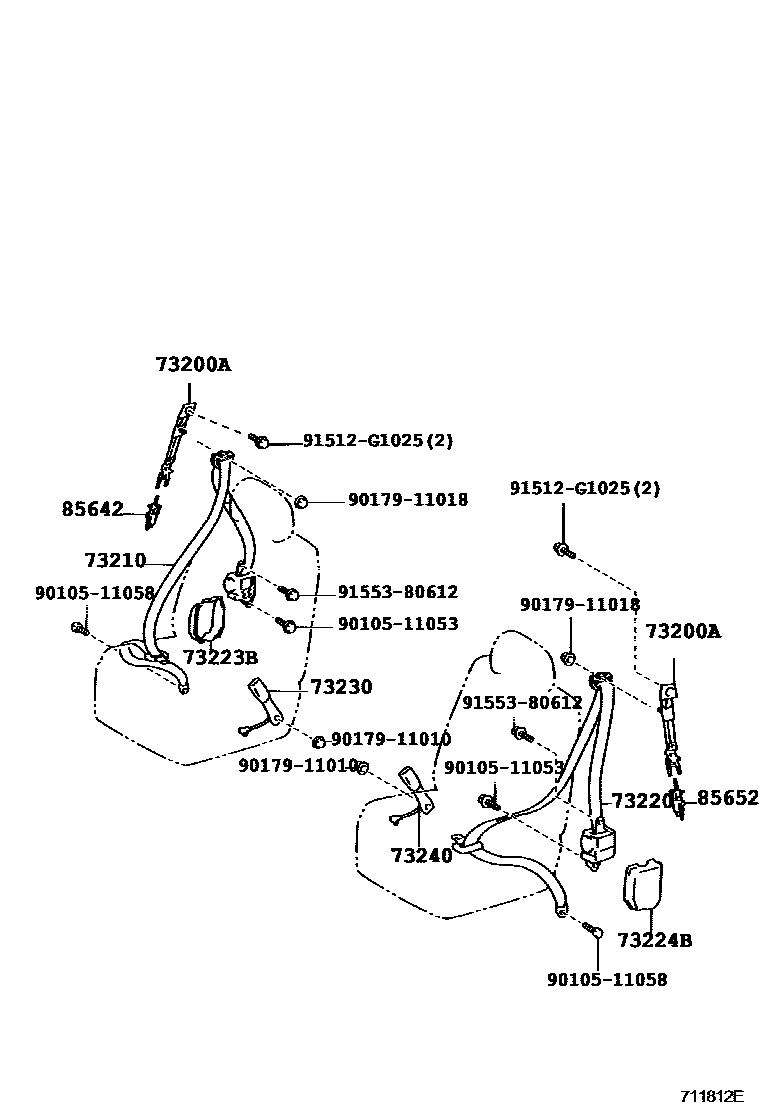

SEAT BELT & CHILD RESTRAINT SEAT
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73210BELT ASSY, FRONT SEAT OUTER, RH
CHINA SPEC,IVORY,TRIM07
CHINA SPEC,ECRU,TRIM00
CHINA SPEC,GRAY,TRIM1#
CHINA SPEC,BLACK,TRIM21,24
PRE-COLLISION SYSTEM,IVORY,TRIM07
PRE-COLLISION SYSTEM,ECRU,TRIM00
PRE-COLLISION SYSTEM,GRAY,TRIM1#
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
PRE-COLLISION SYSTEM,IVORY,TRIM07
PRE-COLLISION SYSTEM,ECRU,TRIM00
PRE-COLLISION SYSTEM,GRAY,TRIM1#
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
73220BELT ASSY, FRONT SEAT OUTER, LH
CHINA SPEC,IVORY,TRIM07
CHINA SPEC,ECRU,TRIM00
CHINA SPEC,GRAY,TRIM1#
CHINA SPEC,BLACK,TRIM21,24
PRE-COLLISION SYSTEM,IVORY,TRIM07
PRE-COLLISION SYSTEM,ECRU,TRIM00
PRE-COLLISION SYSTEM,GRAY,TRIM1#
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
PRE-COLLISION SYSTEM,IVORY,TRIM07
PRE-COLLISION SYSTEM,ECRU,TRIM00
PRE-COLLISION SYSTEM,GRAY,TRIM1#
PRE-COLLISION SYSTEM,BLACK,TRIM21,24
73223COVER, SEAT BELT RETRACTOR
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
PRE-COLLISION SYSTEM
73224BCOVER, FRONT SEAT BELT RETRACTOR, LH
PRE-COLLISION SYSTEM
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
9010511053
main90105-11053
9010511058
main90105-11058
9017911010
main90179-11010
9017911018
main90179-11018
91512G1025
main91512-G1025
9155380612
main91553-80612
16 parts on this diagram · 2 diagrams in section
