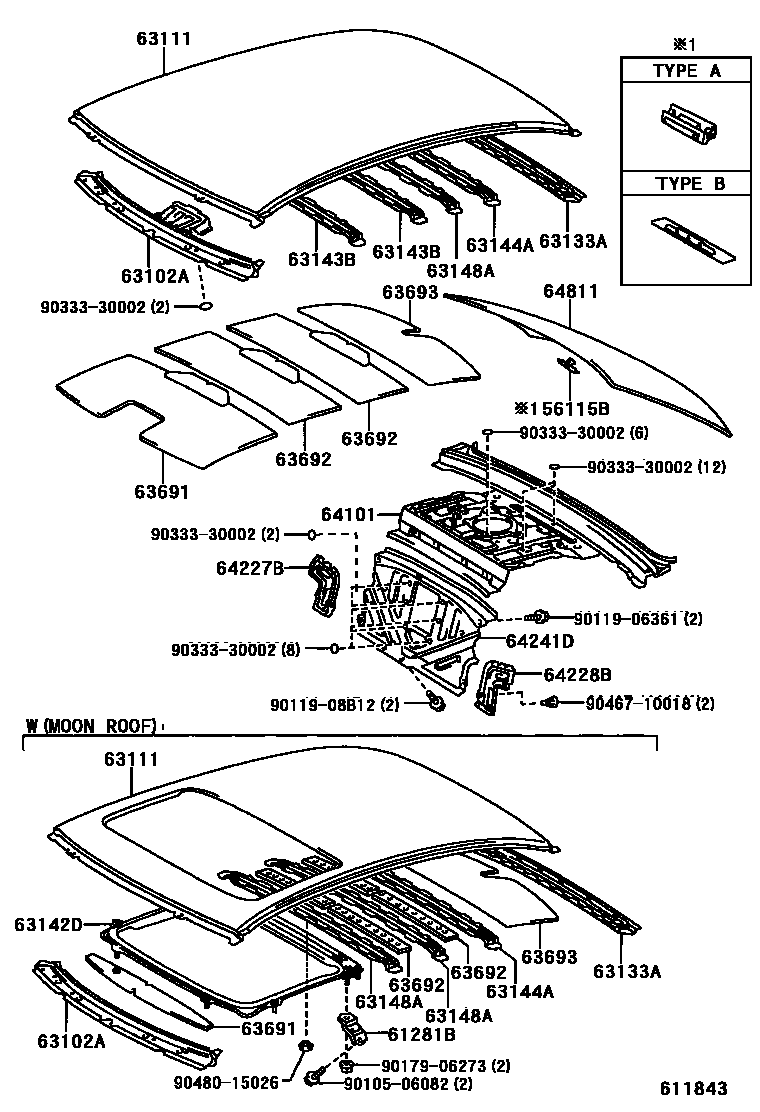

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
61281BBRACKET, SLIDING ROOF HOUSING SIDE MOUNTING, NO.1
63102APANEL SUB-ASSY, WINDSHIELD HEADER
W(MOON ROOF)
63133AFRAME, BACK WINDOW, UPPER
63142DREINFORCEMENT SUB-ASSY, ROOF PANEL, REAR
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
W(MOON ROOF)
64227BEXTENSION, CENTER FLOOR TO BLACE, NO.1
64228BEXTENSION, CENTER FLOOR TO BRACE, NO.2
64241DPANEL, ROOM PARTITION
64811GLASS, BACK WINDOW
*UVCEHT,T=5.0,GREEN
9010506082
main90105-06082
9011906361
main90119-06361
9011908B12
main90119-08B12
9017906273
main90179-06273
9033330002
main90333-30002
9046710018
main90467-10018
9048015026
main90480-15026
24 parts on this diagram · 4 diagrams in section
