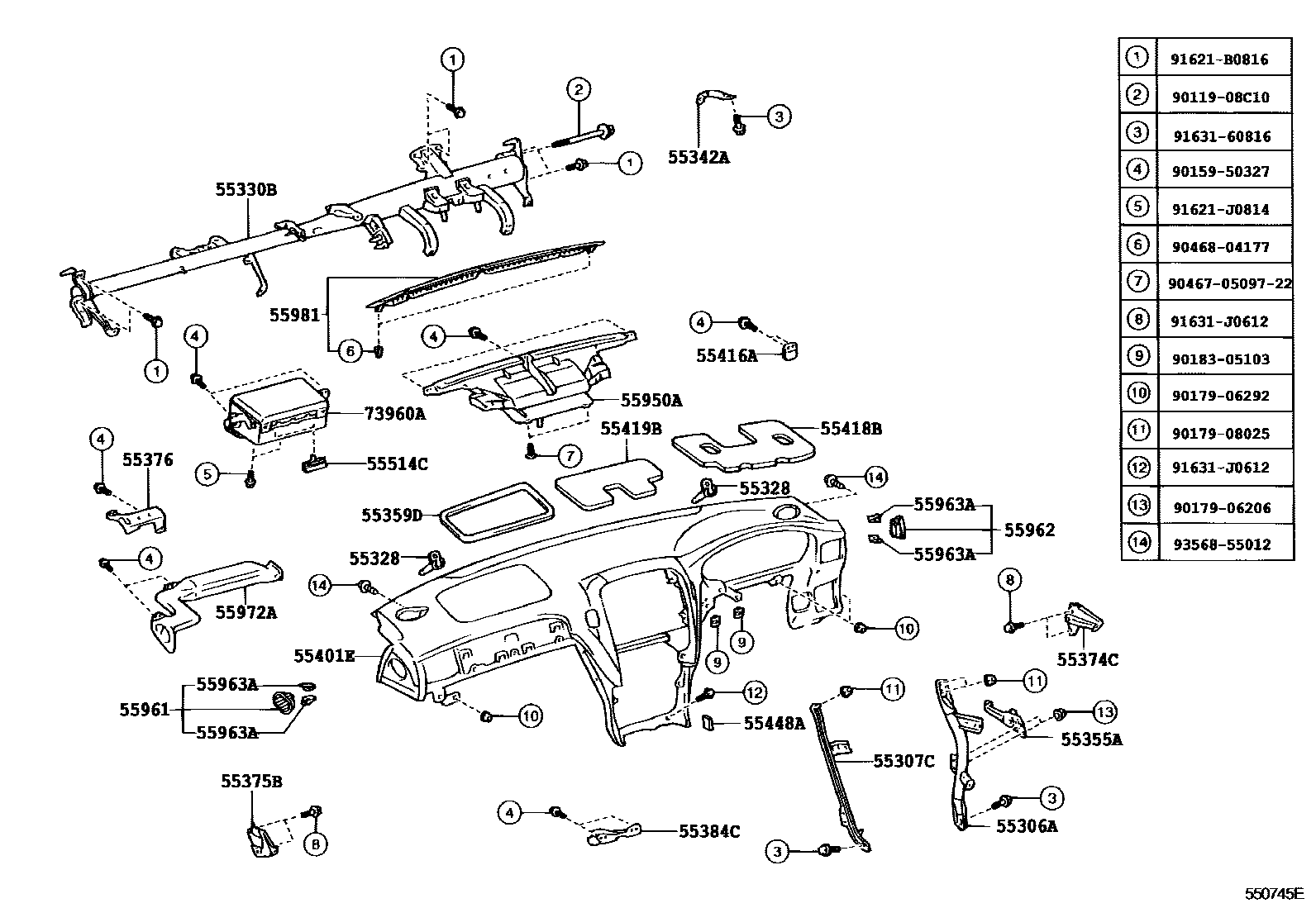

INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55328PIN, INSTRUMENT PANEL, NO.1
55342ABRACE, INSTRUMENT PANEL TO COWL, NO.2
55355APLATE, INSTRUMENT PANEL
55359DCUSHION, INSTRUMENT PANEL, NO.5
55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1
55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2
55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1
55384CBRACKET, FINISH PANEL MOUNTING, NO.4
55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM2#
BLACK,TRIM20,21,24
SANDAL WOOD,TRIM01,07
SANDAL WOOD,TRIM04
CLOVEBROWN,TRIM00
CLOVEBROWN,TRIM0#
CLOVEBROWN,TRIM03
DK.CHARCOAL,TRIM1#
MD.GRAY,TRIM1#
BLACK,TRIM20,21,24
BLACK,TRIM2#
SANDAL WOOD,TRIM04
SANDAL WOOD,TRIM01,07
CLOVEBROWN,TRIM00
CLOVEBROWN,TRIM03
CLOVEBROWN,TRIM0#
55416ARETAINER, METER HOOD, NO.1
55418BSPACER,METER HOOD
55419BSPACER, METER HOOD, NO.2
55448ACUSHION, INSTRUMENT PANEL FINISH, NO.1
55514CRETAINER, AIRBAG PASSENGER DOOR
55950ANOZZLE ASSY, DEFROSTER
55961NOZZLE, SIDE DEFROSTER, NO.1
55962NOZZLE, SIDE DEFROSTER, NO.2
55963ARETAINER, SIDE DEFROSTER
55972ADUCT, SIDE DEFROSTER NOZZLE, NO.2
55981GARNISH, DEFROSTER NOZZLE, NO.1
DARK CHARCOAL,TRIM1#
MD.GRAY,TRIM1#,NO.1
BLACK,TRIM21,24,NO.1
BLACK,TRIM2#
SANDALWOOD,TRIM04
SANDALWOOD,TRIM07,NO.2
CLOVEBROWN,TRIM03
CLOVEBROWN,TRIM00,NO.2
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9011908C10
9015950327
9017906206
9017906292
9017908025
9018305103
904670509722
main90467-0509722
9046804177
91621B0816
91621J0814
9163160816
91631J0612
9356855012
37 parts on this diagram · 8 diagrams in section
