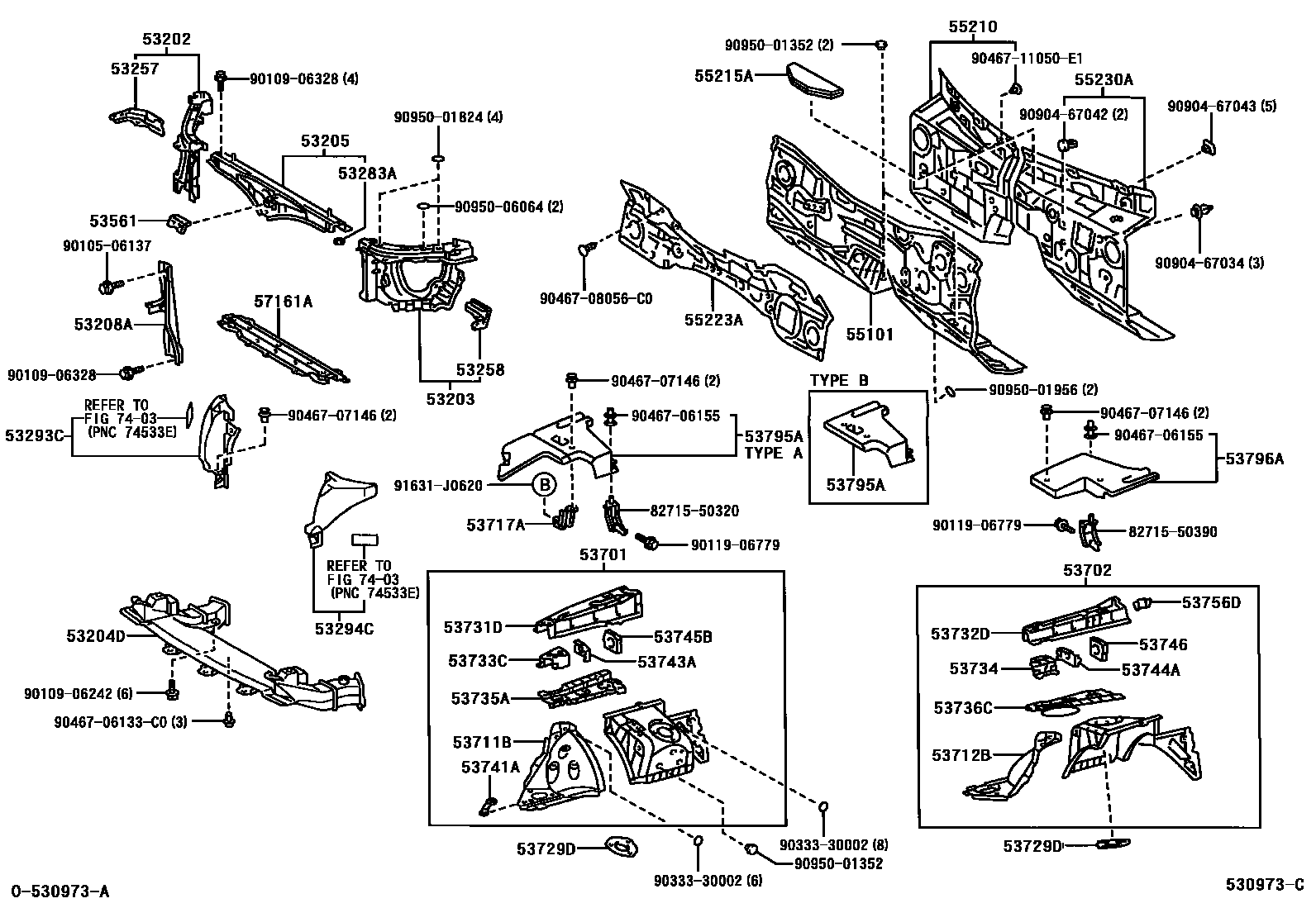

FRONT FENDER APRON & DASH PANEL
53208ASUPPORT SUB-ASSY, HOOD LOCK
53257BRACKET, FRONT END PANEL MOUNTING, RH
53258BRACKET, FRONT END PANEL MOUNTING, LH
53283AREINFORCEMENT, RADIATOR SUPPORT, LOWER
53561GUIDE, HOOD AUXILIARY CATCH HOOK
53701APRON SUB-ASSY, FRONT FENDER, RH
sub53701-50180
sub53701-50180
sub53701-50220
sub53701-50220
W(AIR SUSPENSION)
53711BAPRON, FRONT FENDER, FRONT RH
53712BAPRON, FRONT FENDER, FRONT LH
53717APLATE, FENDER APRON
53729DREINFORCEMENT, FRONT SPRING SUPPORT, NO.3
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733CPATCH, FRONT FENDER APRON
53734PATCH, FRONT FENDER APRON, NO.4
53735AMEMBER, FRONT APRON TO COWL SIDE, LOWER RH
53736CMEMBER, FRONT APRON TO COWL SIDE, LOWER LH
53741APLATE, FENDER APRON REINFORCE, RH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53744AREINFORCEMENT, FRONT FENDER APRON, FRONT LH
53745BREINFORCEMENT, FRONT FENDER APRON, REAR RH
53746REINFORCEMENT, FRONT FENDER APRON, REAR LH
53756DBRACKET, BRAKE ACTUATOR MOUNTING
53795ACOVER, ENGINE ROOM, SIDE
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
53796ACOVER, ENGINE ROOM SIDE, LH
55215APAD, DASH PANEL INSULATOR, NO.3
55223AINSULATOR, DASH PANEL, OUTER
57161AMEMBER, FRONT CROSS, FRONT W/REAR
7403
8271550320BRACKET,WIRING HARNESS CLAMP
main82715-50320
8271550390BRACKET,WIRING HARNESS CLAMP
main82715-50390
9010506137
main90105-06137
9010906242
main90109-06242
9010906328
main90109-06328
9011906779
main90119-06779
9033330002
main90333-30002
9046706133C0
main90467-06133C0
9046706155
main90467-06155
9046707146
main90467-07146
9046708056C0
main90467-08056C0
9046711050E1
main90467-11050E1
9090467034
main90904-67034
9090467042
main90904-67042
9090467043
main90904-67043
9095001352
main90950-01352
9095001824
main90950-01824
9095001956
main90950-01956
9095006064
main90950-06064
91631J0620
main91631-J0620
58 parts on this diagram · 3 diagrams in section
