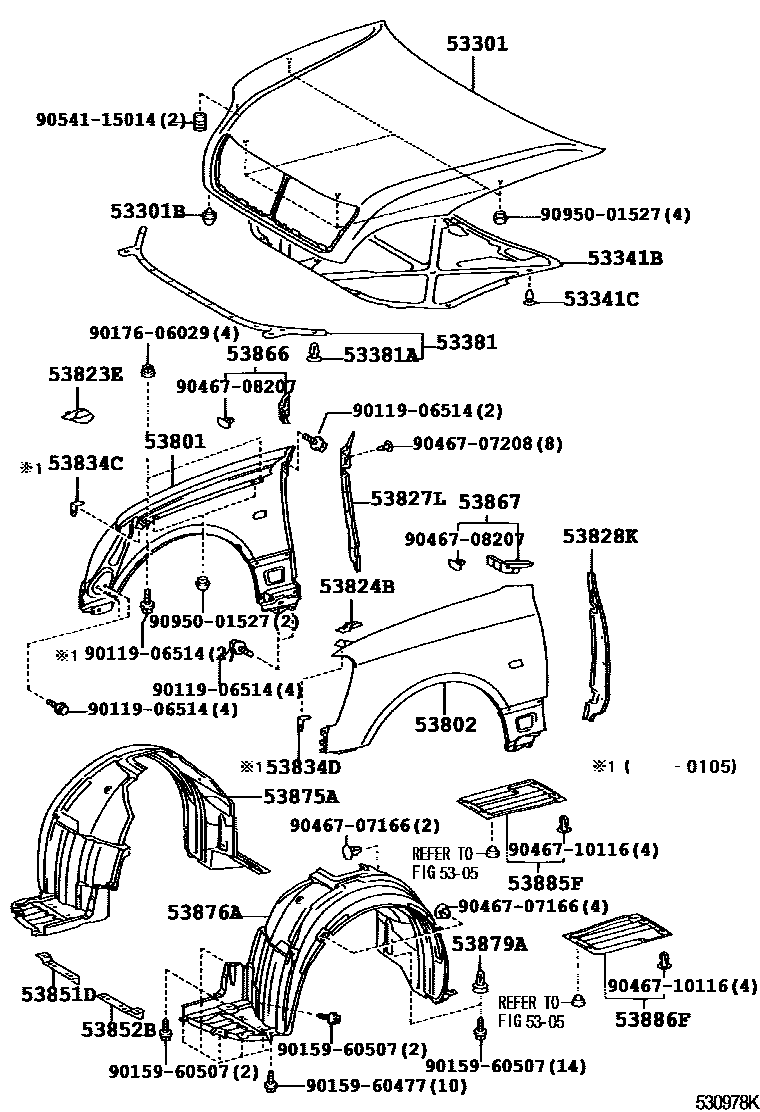

HOOD & FRONT FENDER
5305
53301HOOD SUB-ASSY
53301BCUSHION, HOOD BUMPER
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH
53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH
53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH
53834CPLATE, FRONT FENDER SUPPORT, RH
53834DPLATE, FRONT FENDER SUPPORT, LH
53851DPAD, FRONT WHEEL OPENING EXTENSION, RH
53852BPAD, FRONT WHEEL OPENING EXTENSION, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53879ARETAINER, FRONT FENDER LINER
53885FSHIELD, FRONT FENDER SPLASH, REAR RH
53886FSHIELD, FRONT FENDER SPLASH, REAR LH
9011906514
9015960477
9015960507
9017606029
9046707166
9046707208
9046708207
9046710116
9054115014
9095001527
34 parts on this diagram · 2 diagrams in section
