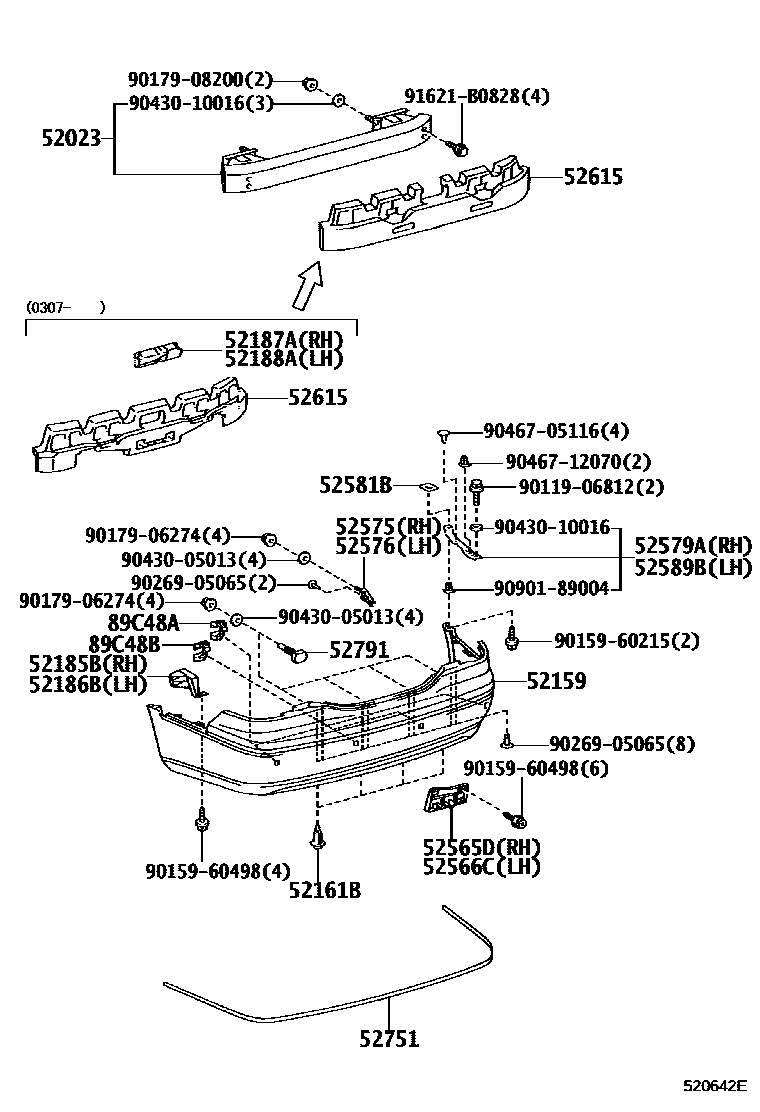

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,W(BACK SONAR)
PAINT REQ.
PAINT REQ.,W(BACK SONAR)
52161BPIECE, REAR BUMPER
sub52161-0K040
52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH
52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52579ARETAINER, REAR BUMPER SIDE, NO.3 RH
52581BPROTECTOR, REAR BUMPER
52589BRETAINER, REAR BUMPER SIDE, NO.3 LH
52791BOLT, BUMPER MOULDING SET, NO.1
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9011906812
main90119-06812
9015960215
main90159-60215
9015960498
main90159-60498
9017906274
main90179-06274
9017908200
main90179-08200
9026905065
main90269-05065
9043005013
main90430-05013
9043010016
main90430-10016
9046705116
main90467-05116
9046712070
main90467-12070
9090189004
main90901-89004
91621B0828
main91621-B0828
31 parts on this diagram · 1 diagram in section
