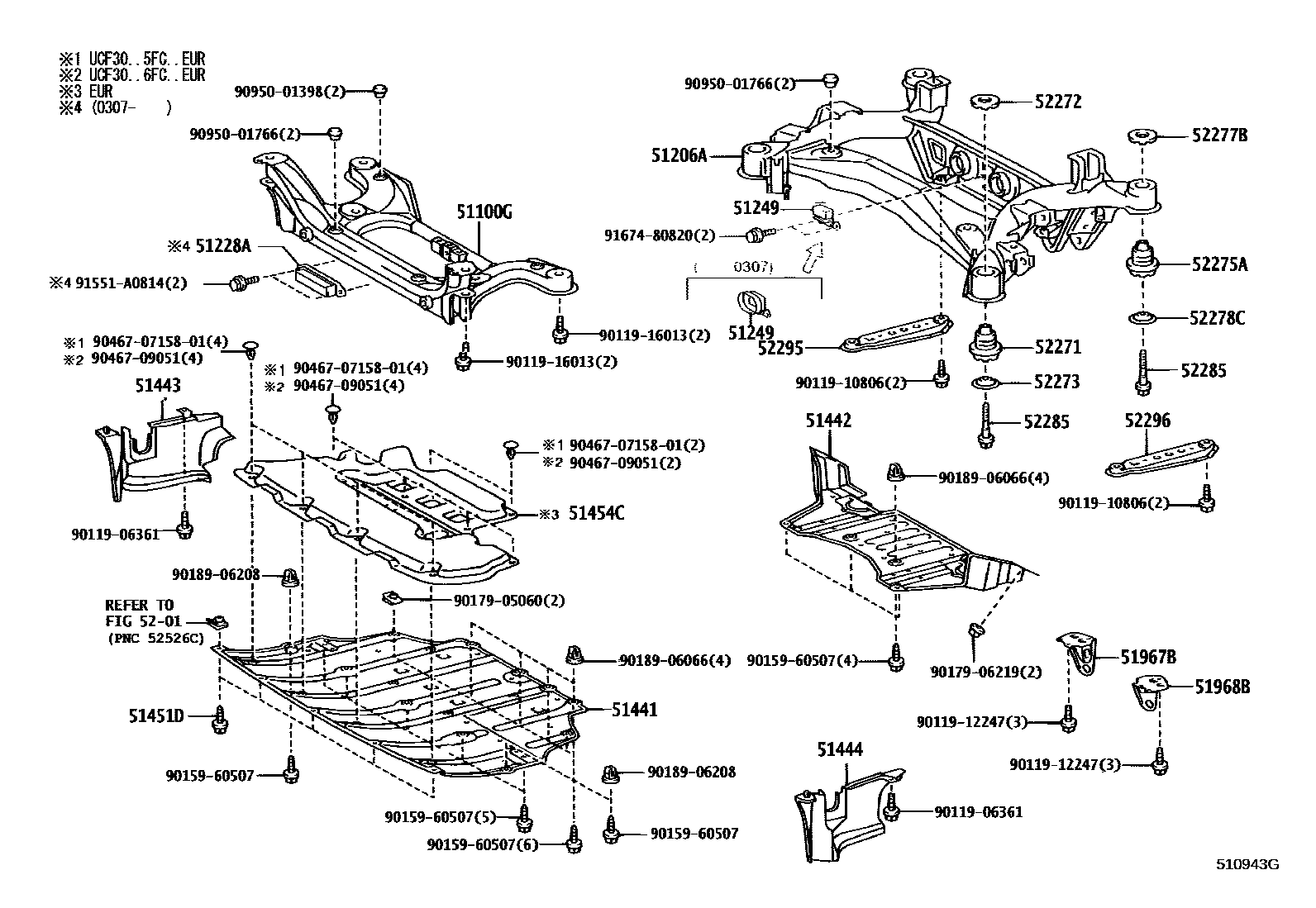

SUSPENSION CROSSMEMBER & UNDER COVER
51206AMEMBER SUB-ASSY, REAR SUSPENSION
51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH
51249DAMPER, REAR SUSPENSION MEMBER
51441COVER, ENGINE UNDER, NO.1
51442COVER, ENGINE UNDER, NO.2
51443COVER, ENGINE UNDER, REAR RH
51444COVER, ENGINE UNDER, REAR LH
51451DSCREW, NO.1
51454CSILENCER, ENGINE UNDER COVER, REAR
51967BHOOK, TRANSPORT, REAR RH
51968BHOOK, TRANSPORT, REAR LH
5201
52271CUSHION, REAR SUSPENSION MEMBER
52272STOPPER, REAR SUSPENSION MEMBER, UPPER
52273STOPPER, REAR SUSPENSION MEMBER, LOWER
52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1
52295BRACE, REAR SUSPENSION MEMBER, RH
52296BRACE, REAR SUSPENSION MEMBER, LH
9011906361
9011910806
9011912247
9011916013
9015960507
9017905060
9017906219
9018906066
9018906208
904670715801
main90467-0715801
9046709051
9095001398
9095001766
91551A0814
9167480820
37 parts on this diagram · 1 diagram in section
