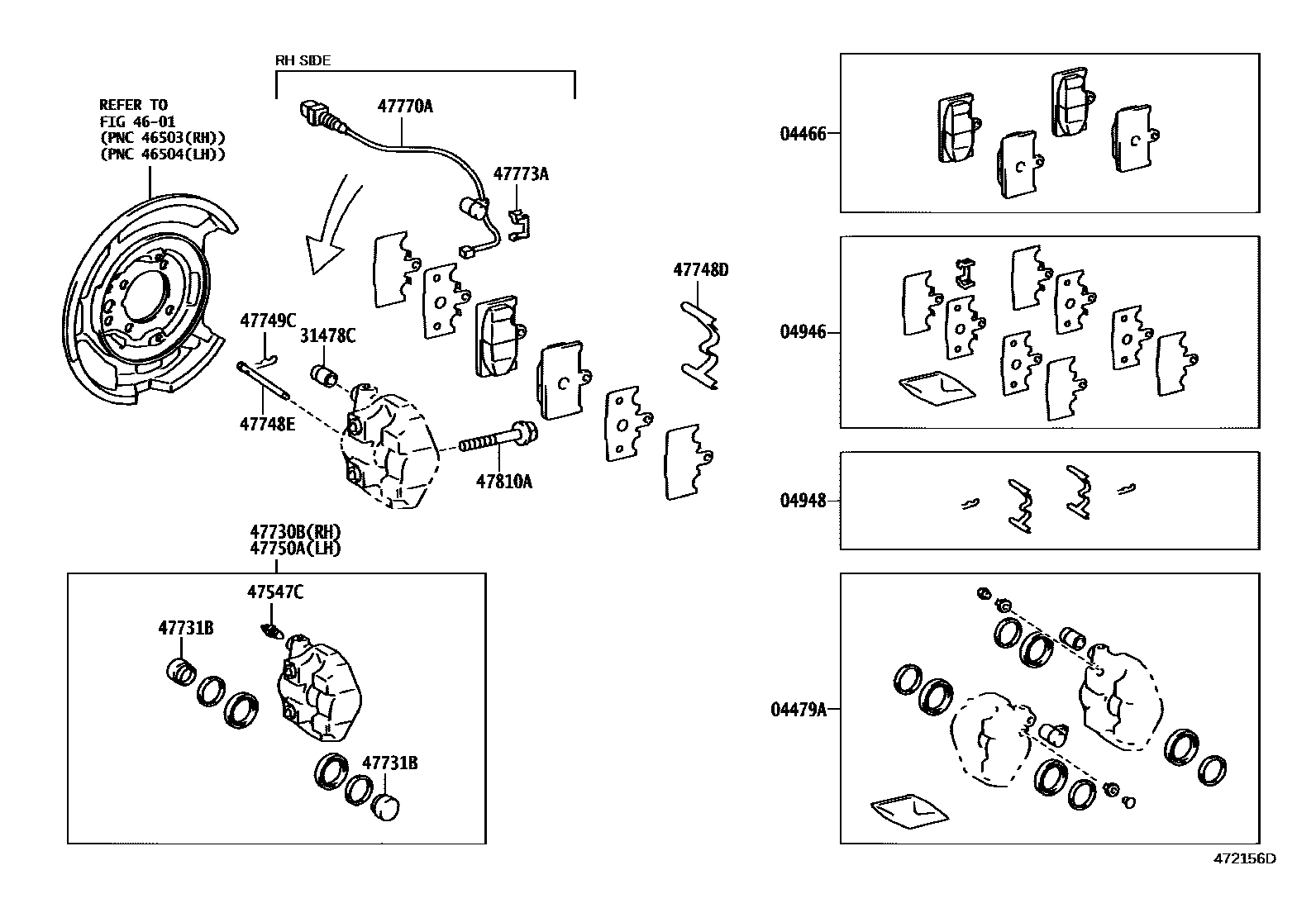

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-50090iUCF30..EUR200008-200306

MARK AK PA544,HONG KONG OR SINGAPORE OR TAIWAN SPEC

sub04466-50091

main04466-50091iUCF30..EUR200306-200608

MARK AK PA561,HONG KONG OR SINGAPORE OR TAIWAN SPEC

main04466-50120iUCF30200008-200608

MARK SUMITOMO PS506H

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-50140iUCF30200008-200608

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-50040iUCF30200008-200608

04948FITTING KIT, DISC BRAKE, REAR

main04948-50050iUCF30200008-200608

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-14010iUCF30200008-200608

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-50010iUCF30200008-200307

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-50160iUCF30200008-200307

47731BPISTON, REAR DISC BRAKE

main47731-50070iUCF30200008-200307

47748DSPRING, ANTI-RATTLE, NO.1(FOR REAR DISC BRAKE)

main47748-50030iUCF30200008-200307

47748EPIN, W/HOLE(FOR REAR DISC BRAKE)

main47735-50030iUCF30200008-200307

47749CCLIP, PIN HOLD

main47749-50030iUCF30200008-200307

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-50150iUCF30200008-200307

47770AWIRE ASSY, PAD WEAR INDICATOR, RH

main47770-50060iUCF30200008-200307

47773ARETAINER, PAD WEAR INDICATOR

main47773-50030iUCF30200008-200307

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-14152iUCF30200008-200608

16 parts on this diagram · 1 diagram in section
