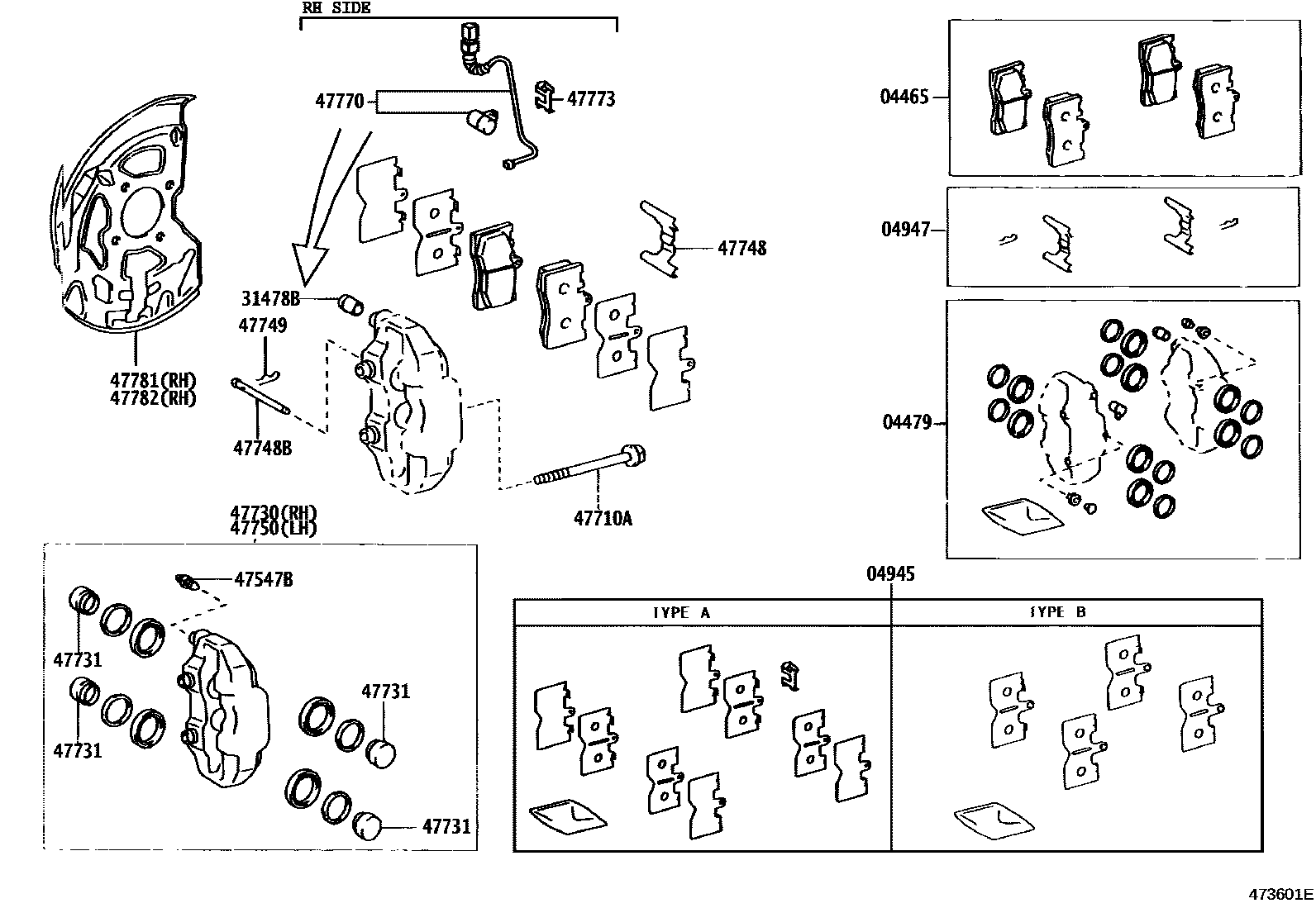

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
RUSSIA OR SOUTH AMERICA OR KOREA OR CHINA OR ISRAEL SPEC
sub04465-0W060
T4146
MARK SUMITOMO PS534,HONG KONG OR SINGAPORE OR TAIWAN SPEC
sub04465-50171
MARK NBK PN532H,CHINA OR ISRAEL OR SOUTH AFRICA OR SOUTH AMERICA OR THAILAND OR KOREA SPEC
MARK NBK PN532H
MARK NBK PN532H
MARK SUMITOMO PS534,TAIWAN SPEC
04479CYLINDER KIT, DISC BRAKE, FRONT
sub04478-22040
04945SHIM KIT, ANTI SQUEAL, FRONT
TYPE B:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
NO.1
NO.2
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
*14-1.5PX110-40
47731PISTON, FRONT DISC BRAKE
47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)
47749CLIP, PIN HOLD
47770WIRE ASSY, PAD WEAR INDICATOR, FRONT RH
47773RETAINER, PAD WEAR INDICATOR
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
17 parts on this diagram · 1 diagram in section
