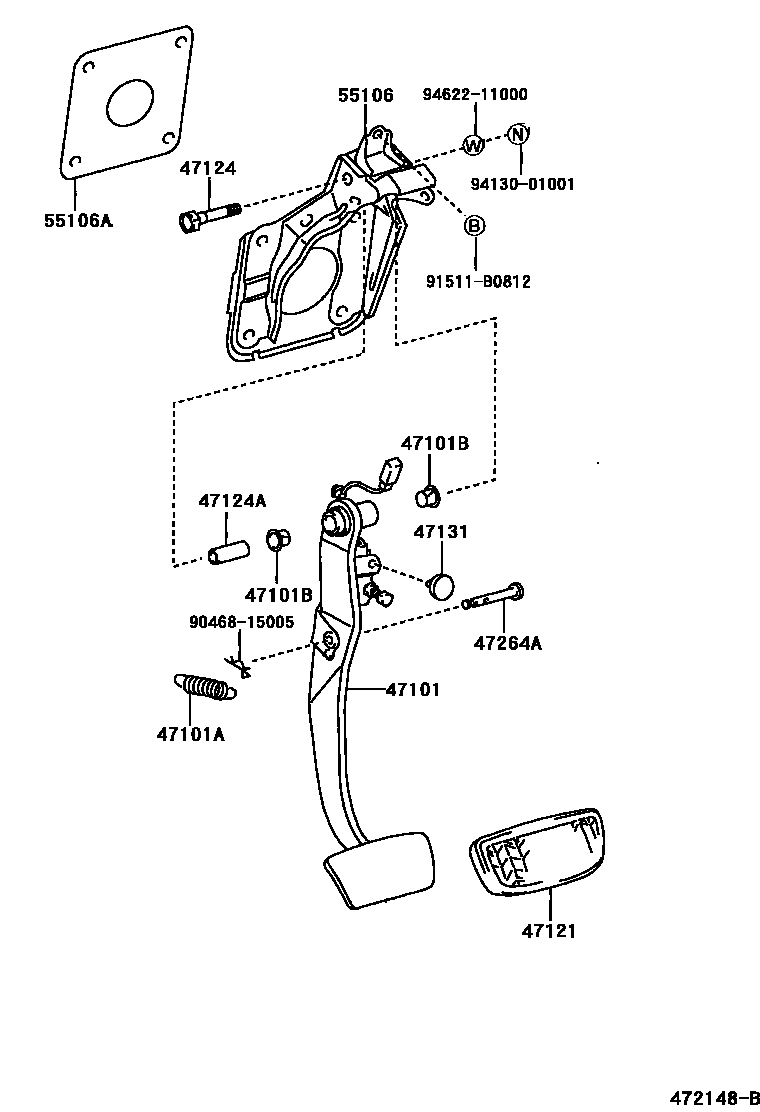

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47106-50010iUCF30..RHD200008-200307

main47106-50020iUCF30..LHD200008-200307

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14032iUCF30200008-200307

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iUCF30200008-200307

47121PAD, BRAKE PEDAL

main47121-50020iUCF30200008-200307

47124SHAFT, BRAKE PEDAL

main90101-10015iUCF30200008-200307

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iUCF30200008-200307

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iUCF30200008-200307

47264APIN(FOR PUSH ROD)

main47148-50010iUCF30200008-200307

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-50070iUCF30..LHD200008-200608

main55106-50080iUCF30..RHD200008-200608

55106ASEAL, DASH PANEL

main55259-20010iUCF30200008-200307

9046815005

main90468-15005

91511B0812

main91511-B0812

9413001001

main94130-01001

9462211000

main94622-11000

14 parts on this diagram · 2 diagrams in section
