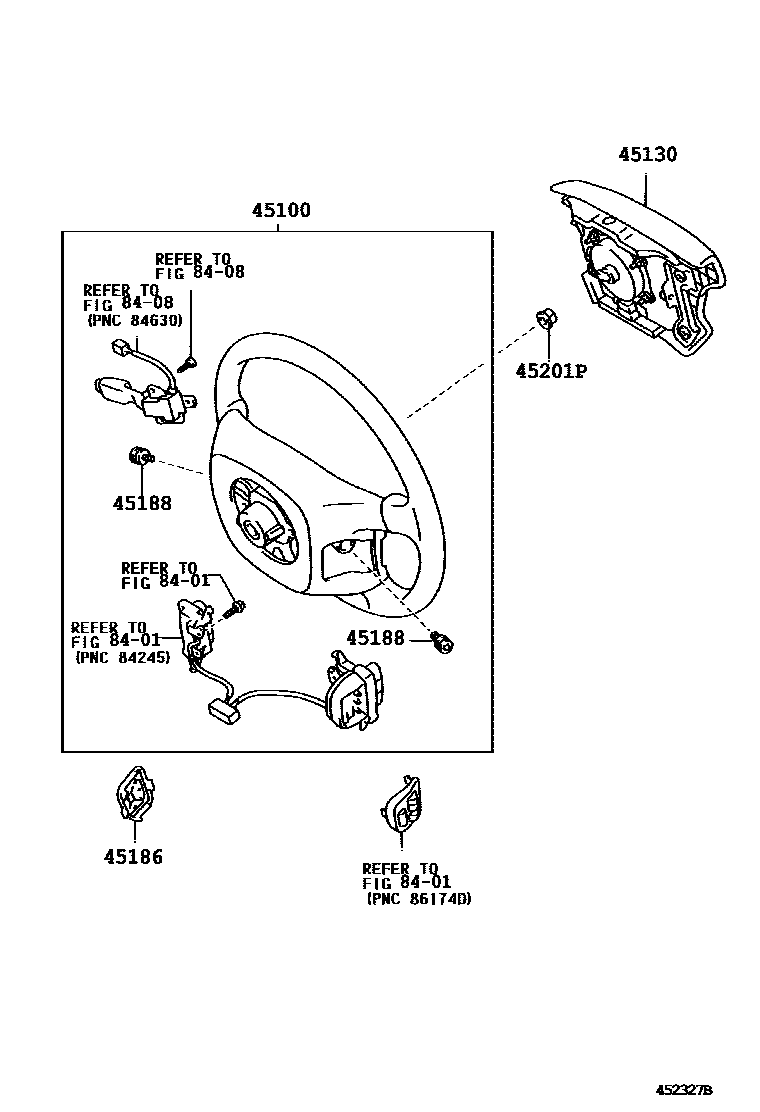

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-50150-B0i200008-200107

4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

sub45100-50150

main45100-50150-C0i200008-200107

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-50150

main45100-50150-E0i200008-200107

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM04

sub45100-50150

main45100-50150-E1i200008-200107

4-SPOKE,LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM03

sub45100-50150

main45100-50170-B0i200008-200107

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

sub45100-50170

main45100-50170-C0i200008-200107

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-50170

main45100-50170-E0i200008-200107

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM04

sub45100-50170

main45100-50170-E1i200008-200107

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM03

sub45100-50170

main45100-50190-B0i200107-200307

4-SPOKE,LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

sub45100-50191

sub45100-50190

main45100-50190-B2i200307-200404

4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50191

sub45100-50190

main45100-50190-B3i200404-200408

4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM10

sub45100-50191

sub45100-50190

main45100-50190-C0i200404-200408

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50191

sub45100-50190

main45100-50190-C0i200107-200307

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-50191

sub45100-50190

main45100-50190-C2i200307-200404

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50191

sub45100-50190

main45100-50190-E0i200107-200307

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM04

sub45100-50191

sub45100-50190

main45100-50190-E0i200404-200408

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50191

sub45100-50190

main45100-50190-E1i200107-200307

4-SPOKE,LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM03

sub45100-50191

sub45100-50190

main45100-50190-E1i200404-200408

4-SPOKE,LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50191

sub45100-50190

main45100-50190-E4i200307-200404

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50191

sub45100-50190

main45100-50190-E5i200307-200404

4-SPOKE,LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50191

sub45100-50190

main45100-50191-B3i200409-200608

4-SPOKE,LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50191

main45100-50191-C0i200409-200608

4-SPOKE,LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50191

main45100-50191-E0i200409-200608

4-SPOKE,LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50191

main45100-50191-E1i200409-200608

4-SPOKE,LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50191

main45100-50200-B2i200307-200404

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50201

sub45100-50200

main45100-50200-B3i200404-200408

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM10

sub45100-50201

sub45100-50200

main45100-50200-C0i200404-200408

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50201

sub45100-50200

main45100-50200-C3i200307-200404

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50201

sub45100-50200

main45100-50200-E0i200404-200408

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50201

sub45100-50200

main45100-50200-E1i200404-200408

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50201

sub45100-50200

main45100-50200-E5i200307-200404

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50201

sub45100-50200

main45100-50200-E6i200307-200404

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50201

sub45100-50200

main45100-50201-B3i200409-200608

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50201

main45100-50201-C0i200409-200608

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50201

main45100-50201-E0i200409-200608

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50201

main45100-50201-E1i200409-200608

4-SPOKE,LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50201

main45100-50210-B0i200107-200307

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),DK.CHARCOAL,TRIM1#

sub45100-50211

sub45100-50210

main45100-50210-B1i200307-200404

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50211

sub45100-50210

main45100-50210-B2i200404-200408

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM10

sub45100-50211

sub45100-50210

main45100-50210-C0i200107-200307

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-50211

sub45100-50210

main45100-50210-C1i200404-200408

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50211

sub45100-50210

main45100-50210-C2i200307-200404

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50211

sub45100-50210

main45100-50210-E0i200107-200307

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM04

sub45100-50211

sub45100-50210

main45100-50210-E1i200404-200408

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50211

sub45100-50210

main45100-50210-E1i200107-200307

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM03

sub45100-50211

sub45100-50210

main45100-50210-E2i200404-200408

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50211

sub45100-50210

main45100-50210-E4i200307-200404

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50211

sub45100-50210

main45100-50210-E5i200307-200404

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50211

sub45100-50210

main45100-50211-B2i200409-200608

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50211

main45100-50211-C1i200409-200608

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50211

main45100-50211-C1i200409-200608

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),BLACK,TRIM2#

sub45100-50211

main45100-50211-E1i200409-200608

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50211

main45100-50211-E2i200409-200608

4-SPOKE,WOOD&LEATHER,W(CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50211

main45100-50220-B0i200107-200307

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),DK.CHARCOAL,TRIM1#

sub45100-50221

sub45100-50220

main45100-50220-B1i200307-200404

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50221

sub45100-50220

main45100-50220-B2i200404-200409

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM10

sub45100-50221

sub45100-50220

main45100-50220-C1i200107-200307

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM2#

sub45100-50221

sub45100-50220

main45100-50220-C2i200408-200409

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21

sub45100-50221

sub45100-50220

main45100-50220-C2i200404-200409

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50221

sub45100-50220

main45100-50220-C3i200307-200404

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50221

sub45100-50220

main45100-50220-E0i200107-200307

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM04

sub45100-50221

sub45100-50220

main45100-50220-E2i200107-200307

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM03

sub45100-50221

sub45100-50220

main45100-50220-E2i200404-200409

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50221

sub45100-50220

main45100-50220-E3i200404-200409

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50221

sub45100-50220

main45100-50220-E4i200307-200404

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50221

sub45100-50220

main45100-50220-E5i200307-200404

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50221

sub45100-50220

main45100-50221-B2i200409-200608

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),MD.GRAY,TRIM1#

sub45100-50221

main45100-50221-C2i200409-200608

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM21,24

sub45100-50221

main45100-50221-C2i200409-200608

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),BLACK,TRIM2#

sub45100-50221

main45100-50221-E2i200409-200608

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),CLOVEBROWN,TRIM00

sub45100-50221

main45100-50221-E3i200409-200608

4-SPOKE,WOOD&LEATHER,W(RADAR CRUISE CONTROL),SANDAL WOOD,TRIM07

sub45100-50221

45130BUTTON ASSY, HORN

main45130-50180-B0i200008-200107

DK.CHARCOAL,TRIM1#

sub45130-50180

main45130-50180-C0i200008-200107

BLACK,TRIM2#

sub45130-50180

main45130-50180-E0i200008-200107

SANDAL WOOD,TRIM04

sub45130-50180

main45130-50180-E1i200008-200107

CLOVEBROWN,TRIM03

sub45130-50180

main45130-50200-B0i200107-200307

DK.CHARCOAL,TRIM1#

sub45130-50200

main45130-50200-C0i200107-200307

BLACK,TRIM2#

sub45130-50200

main45130-50200-E0i200107-200307

SANDAL WOOD,TRIM04

sub45130-50200

main45130-50200-E1i200107-200307

CLOVEBROWN,TRIM03

sub45130-50200

main45130-50220-B0i200307-200608

MD.GRAY,TRIM1#

sub45130-50220

main45130-50220-C0i200307-200608

BLACK,TRIM21,24

sub45130-50220

main45130-50220-E0i200307-200608

SANDAL WOOD,TRIM07

sub45130-50220

main45130-50220-E1i200307-200608

CLOVEBROWN,TRIM00

sub45130-50220

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-50050-B0i200008-200307

DK.CHARCOAL,TRIM1#

sub45186-50050

main45186-50050-B1i200307-200608

MD.GRAY,TRIM1#

sub45186-50050

main45186-50050-C0i200008-200307

BLACK,TRIM2#

sub45186-50050

main45186-50050-C0i200307-200608

BLACK,TRIM21,24

sub45186-50050

main45186-50050-E0i200307-200608

SANDAL WOOD,TRIM07

sub45186-50050

main45186-50050-E0i200008-200307

SANDAL WOOD,TRIM04

sub45186-50050

main45186-50050-E1i200008-200307

CLOVEBROWN,TRIM03

sub45186-50050

main45186-50050-E1i200307-200608

CLOVEBROWN,TRIM00

sub45186-50050

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010i200008-200307

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071i200008-200307

8401

8408

7 parts on this diagram · 1 diagram in section
