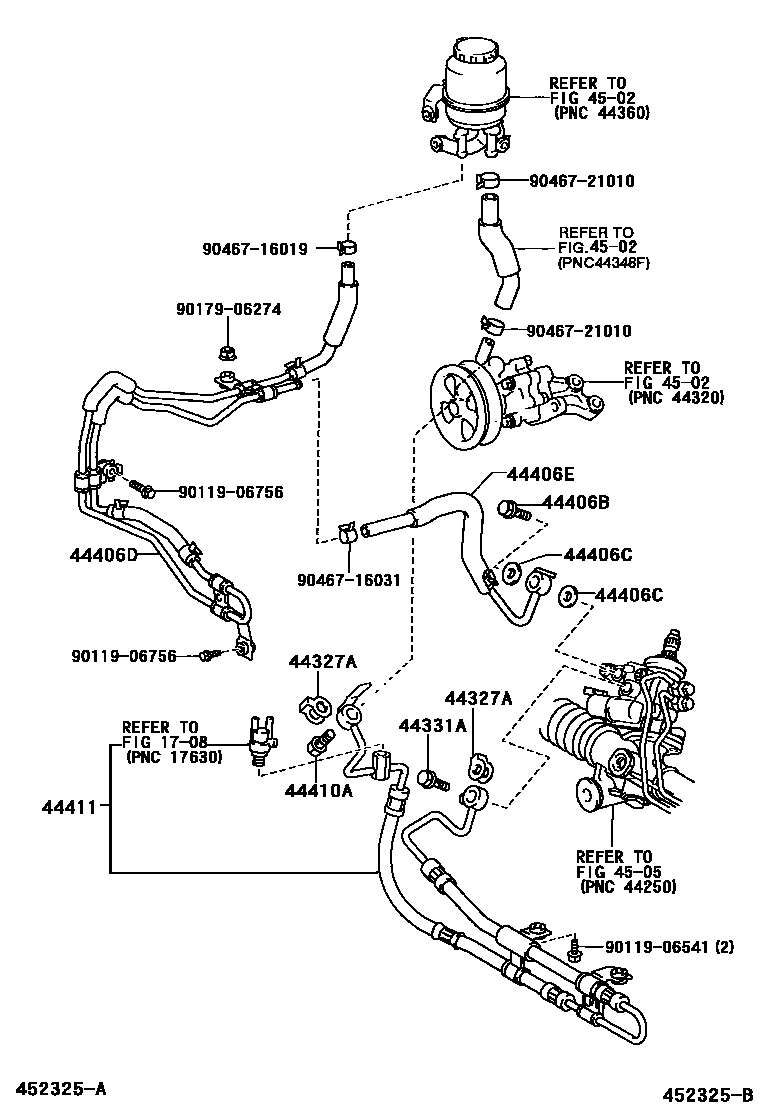

POWER STEERING TUBE

0001 1 0002 1

1708

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iUCF30¥160200008-200307

44331AVALVE, POWER STEERING & SUSPENSION CONTROL CHECK

main44331-50070iUCF30¥710200008-200307

44406BBOLT, UNION(FOR RETURN TUBE)

main90401-17004iUCF30¥610200008-200307

44406CGASKET(FOR RETURN TUBE)

main90430-17008iUCF30¥160200008-200307

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-50200iUCF30¥12,100200008-200307

sub44406-50220¥12,100

main44406-50220iUCF30¥12,100200307

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-50210iUCF30..RHD¥3,420200008-200307

44410TUBE ASSY, PRESSURE FEED

main44410-50080iUCF30..LHD¥44,600200008-200307

44410ABOLT, UNION(FOR PRESSURE FEED TUBE)

main96341-41603iUCF30¥310200008-200307

44411HOSE, PRESSURE FEED

main44411-50010iUCF30..RHD¥35,200200008-200307

4502

4505

9011906541

main90119-06541¥160

9011906756

main90119-06756¥130

9017906274

main90179-06274¥70

9046716019

main90467-16019¥300

9046716031

main90467-16031¥130

9046721010

main90467-21010¥380

18 parts on this diagram · 2 diagrams in section
