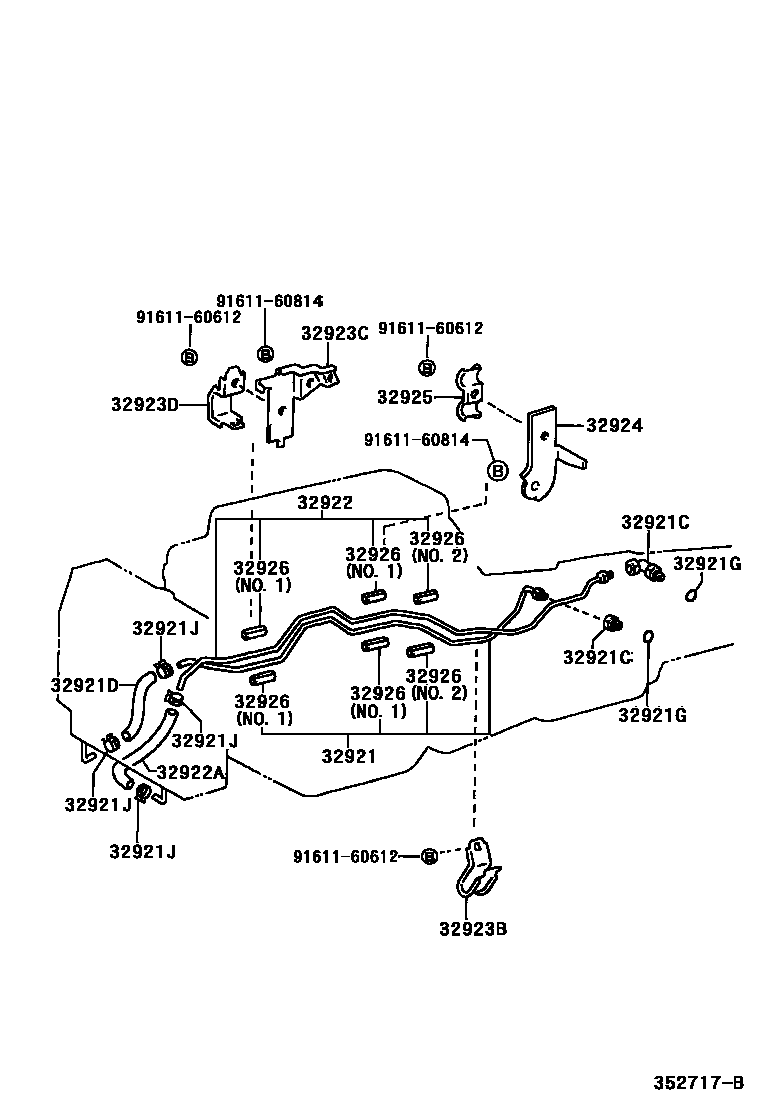

OIL COOLER & TUBE (ATM)

0001 1A650E 0002 1A761E

32921TUBE, OIL COOLER INLET, NO.1

main32921-50020iUCF30200008-200307

main32921-50030iUCF30200307-200403

main32921-50040iUCF30200403-200505

sub32921-50050

main32921-50050iUCF30200506

32921CUNION(FOR OIL COOLER TUBE)

main90404-16029iUCF30200008-200307

INLET

main90407-16009iUCF30200008-200307

OUTLET

main90407-16009iUCF30200307

32921DHOSE(FOR OIL COOLER INLET)

main90445-17095iUCF30200008-200505

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11006iUCF30200008-200608

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16004iUCF30200605

NO.2

main90467-16013iUCF30200008-200204

sub90467-16022

main90467-16022iUCF30200307-200604

NO.2

main90467-16022iUCF30200204-200307

main90467-16022iUCF30200307

NO.1

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-50020iUCF30200008-200307

main32922-50030iUCF30200307-200403

main32922-50050iUCF30200403

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-17126iUCF30200008-200307

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-50010iUCF30200008-200307

32923CCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4

main32924-50020iUCF30200008-200307

32923DCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5

main32929-50020iUCF30200008-200307

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-50040iUCF30200008-200307

32925CLAMP, OIL COOLER TUBE, NO.3

main90462-12074iUCF30200008-200307

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-20010iUCF30200506

L=25,ID=10,NO.3

main32926-50020iUCF30200008-200403

NO.1

main32926-50030iUCF30200008-200307

L=35,ID=10,NO.2

9161160612

main91611-60612

9161160814

main91611-60814

15 parts on this diagram · 2 diagrams in section
