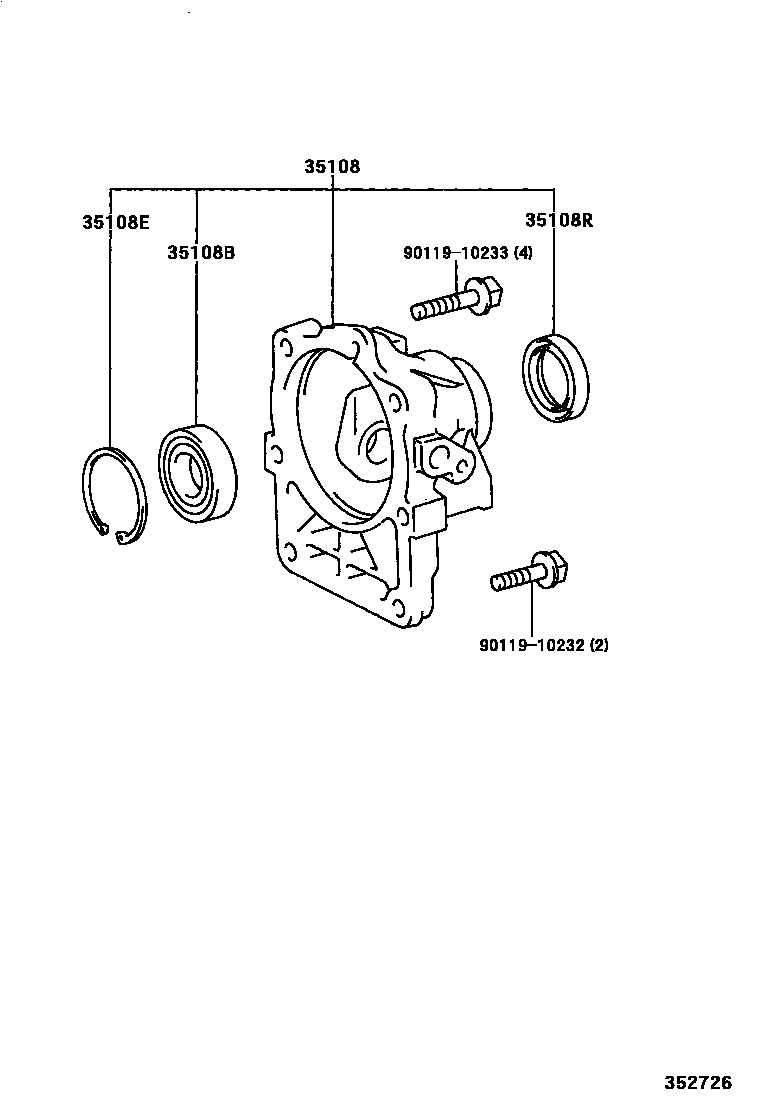

EXTENSION HOUSING (ATM)

0001 1A650E 0002 1A761E

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-50030iUCF30200307

main35180-30030iUCF30200008-200307

35108BBEARING (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90363-34001iUCF30200008-200307

35108ERING, HOLE SNAP (FOR ATM EXTENSION HOUSING)

main90521-66006iUCF30200008-200307

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-42024iUCF30200008-200307

9011910232

main90119-10232

9011910233

main90119-10233

6 parts on this diagram · 2 diagrams in section
