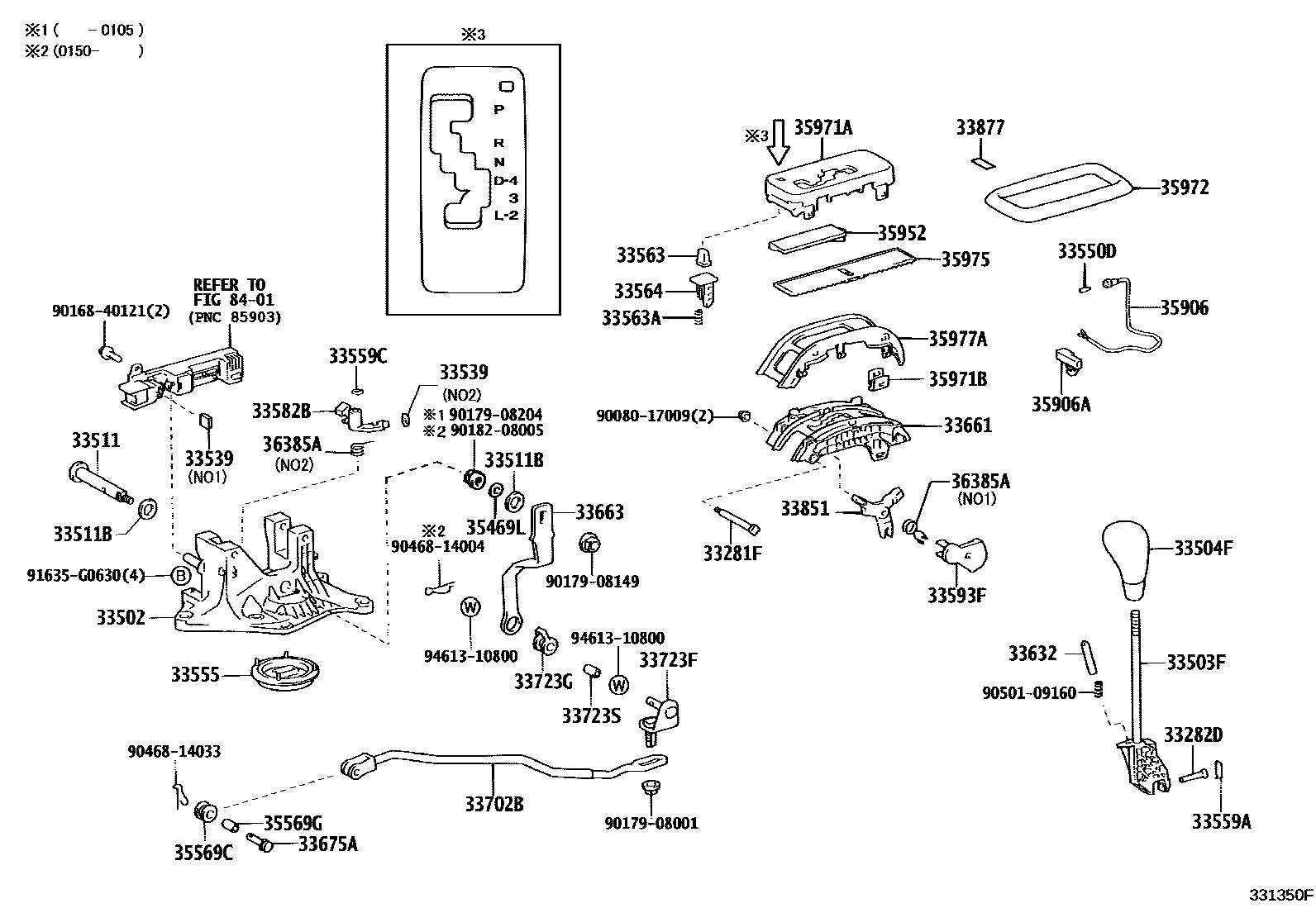

SHIFT LEVER & RETAINER
33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)
33282DPIN, LEVER LOCK, NO.2
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33504FKNOB SUB-ASSY, SHIFT LEVER
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33511BBUSH (FOR CONTROL SHAFT)
33539CUSHION, SHIFT LEVER ANTI-RATTLE
NO.2
NO.1
33550DBULB, POSITION INDICATOR LAMP
14V 1.4W
12V 1.2W W/O SOCKET
33555BOOT, SHIFT LEVER
33559ANUT, SHIFT LEVER, NO.1
33559CDAMPER, SHIFT LEVER SPRING
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33593FHOLDER, SPRING (FOR FLOOR SHIFT)
33632ROD, DETENT, NO.2
33661HOUSING, SHIFT LEVER GUIDE
33663LEVER, CONTROL
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33851PLATE, SHIFT LOCK SWITCH
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35469LSPACER, SHIFT LEVER
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35952LENS, POSITION INDICATOR
35971AHOUSING, POSITION INDICATOR, UPPER
35972COVER, POSITION INDICATOR HOUSING
35975COVER, SLIDE (FOR POSITION INDICATOR)
35977APLATE, POSITION INDICATOR HOUSING
36385ASPRING, FLOOR SHIFT LEVER TORSION, NO.1
NO.1
NO.2
NO.3
8401
9008017009
main90080-17009
9016840121
main90168-40121
9017908001
main90179-08001
9017908149
main90179-08149
9017908204
main90179-08204
9018208005
main90182-08005
9046814004
main90468-14004
9046814033
main90468-14033
9050109160
main90501-09160
91635G0630
main91635-G0630
9461310800
main94613-10800
51 parts on this diagram · 4 diagrams in section
