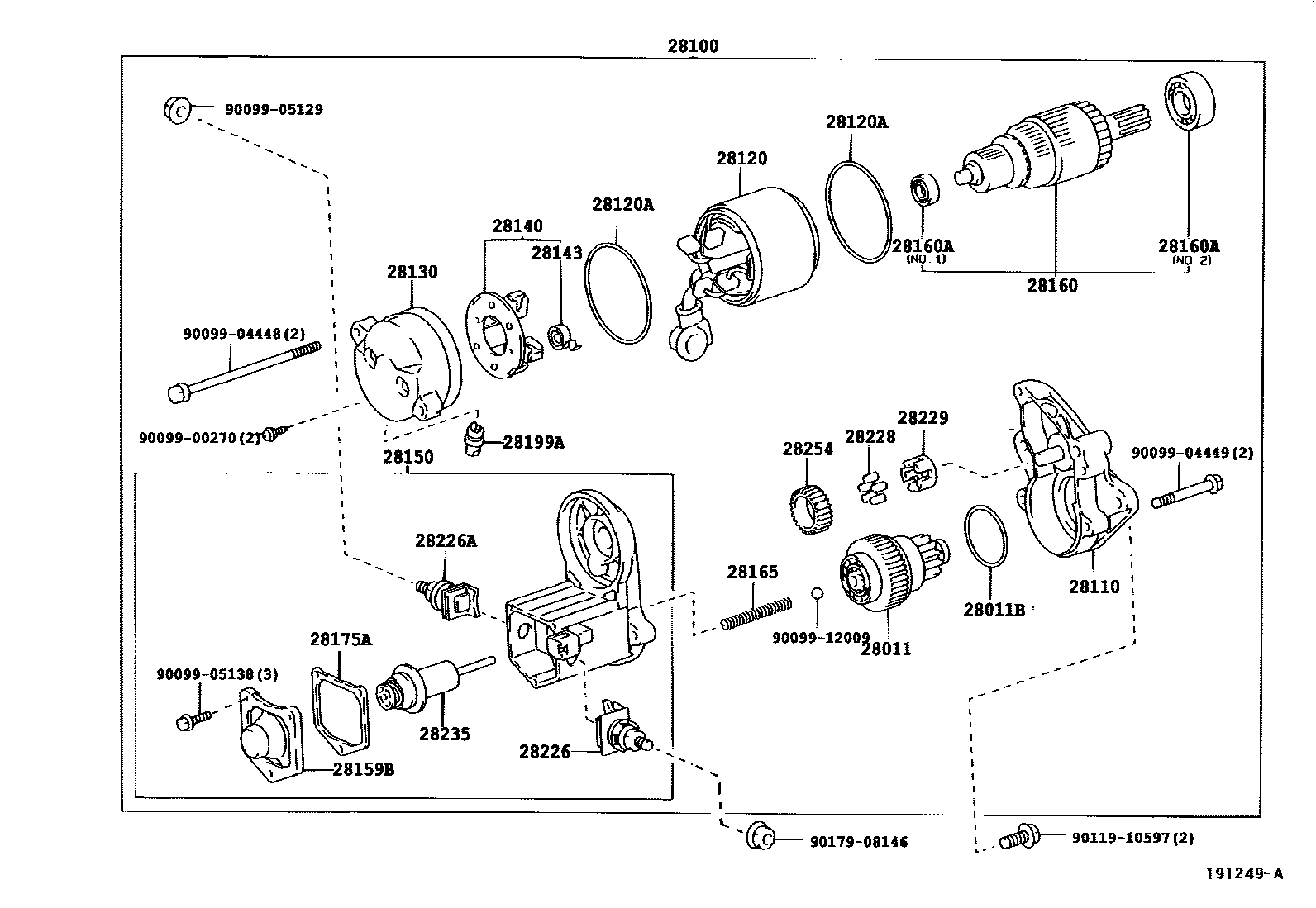

STARTER
28011CLUTCH SUB-ASSY, STARTER
28011BRING, O(FOR STARTER CLUTCH)
28100STARTER ASSY
12V 2.0KW
28110HOUSING ASSY, STARTER DRIVE
28120YOKE ASSY, STARTER
28120ARING, O(FOR STARTER YOKE)
28130FRAME ASSY, STARTER COMMUTATOR END
28140HOLDER ASSY, STARTER BRUSH
28143SPRING, STARTER BRUSH
28150SWITCH ASSY, MAGNET STARTER
28159BCOVER, MAGNET SWITCH
28160ARMATURE ASSY, STARTER
28160ABEARING, STARTER ARMATURE
NO.1
NO.2
NO.1
28165SPRING, STARTER MAGNET SWITCH RETURN
28175AGASKET, MAGNET SWITCH COVER
28199APROTECTOR, DUST STARTER
28226STARTER KIT, BATTERY TERMINAL
28226ASTARTER KIT, MOTOR TERMINAL
28228ROLLER, STARTER IDLE GEAR CLUTCH
28229RETAINER, STARTER IDLE GEAR
28235PLUNGER, MAGNET SWITCH
28254PINION, STARTER IDLE GEAR
9009900270
main90099-00270
9009904448
main90099-04448
9009904449
main90099-04449
9009905129
main90099-05129
9009905138
main90099-05138
9009912009
main90099-12009
9011910597
main90119-10597
9017908146
main90179-08146
30 parts on this diagram · 3 diagrams in section
