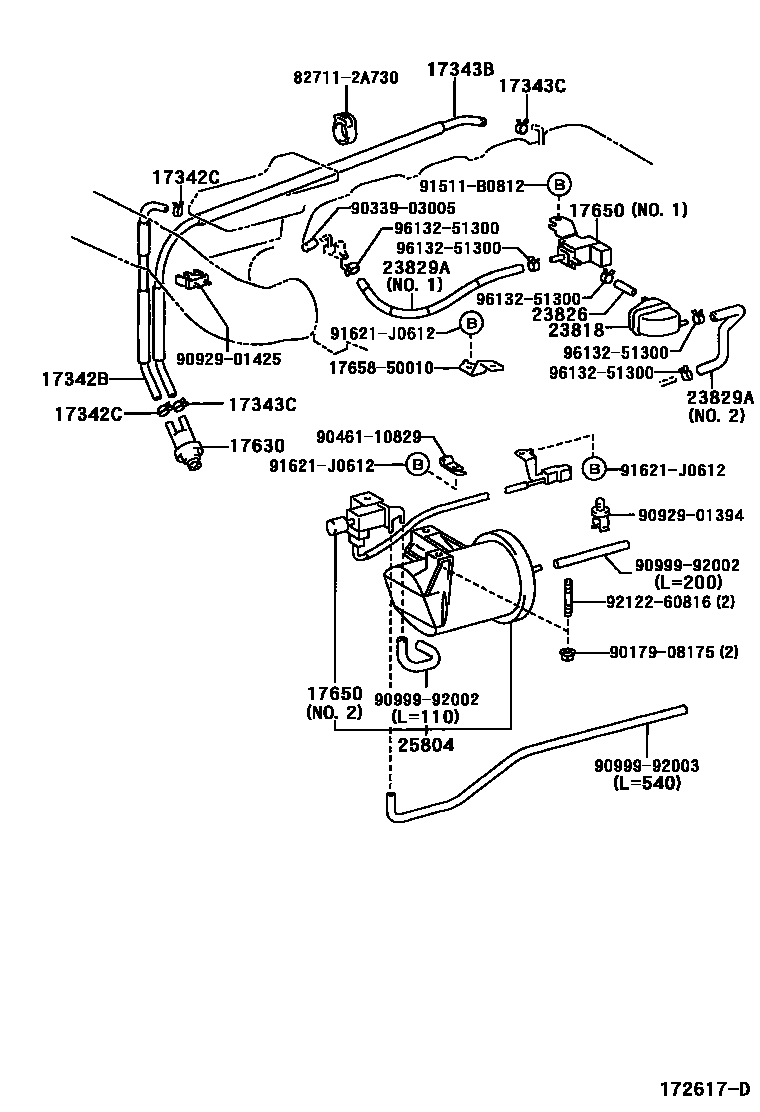

VACUUM PIPING
17342BHOSE, NO.2(FOR IDLE-UP)
17342CCLIP, NO.2(FOR IDLE-UP HOSE)
17343BHOSE, NO.3(FOR IDLE-UP)
17343CCLIP, NO.3(FOR IDLE-UP HOSE)
17630VALVE ASSY, AIR CONTROL
17650VALVE ASSY, VACUUM SWITCHING
NO.1
NO.2
23818PIPE, FUEL VAPOR FEED
23826HOSE, FUEL VAPOR FEED, NO.1
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
23829AHOSE, FUEL VAPOR FEED
NO.1
NO.2
NO.2
25804VALVE SET, VACUUM CONTROL
1765850010BRACKET, VACUUM HOSE CLAMP
827112A730WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9017908175
9033903005
9046110829
9092901394
9092901425
9099992002
9099992003
91511B0812
91621J0612
9212260816
9613251300
23 parts on this diagram · 2 diagrams in section
