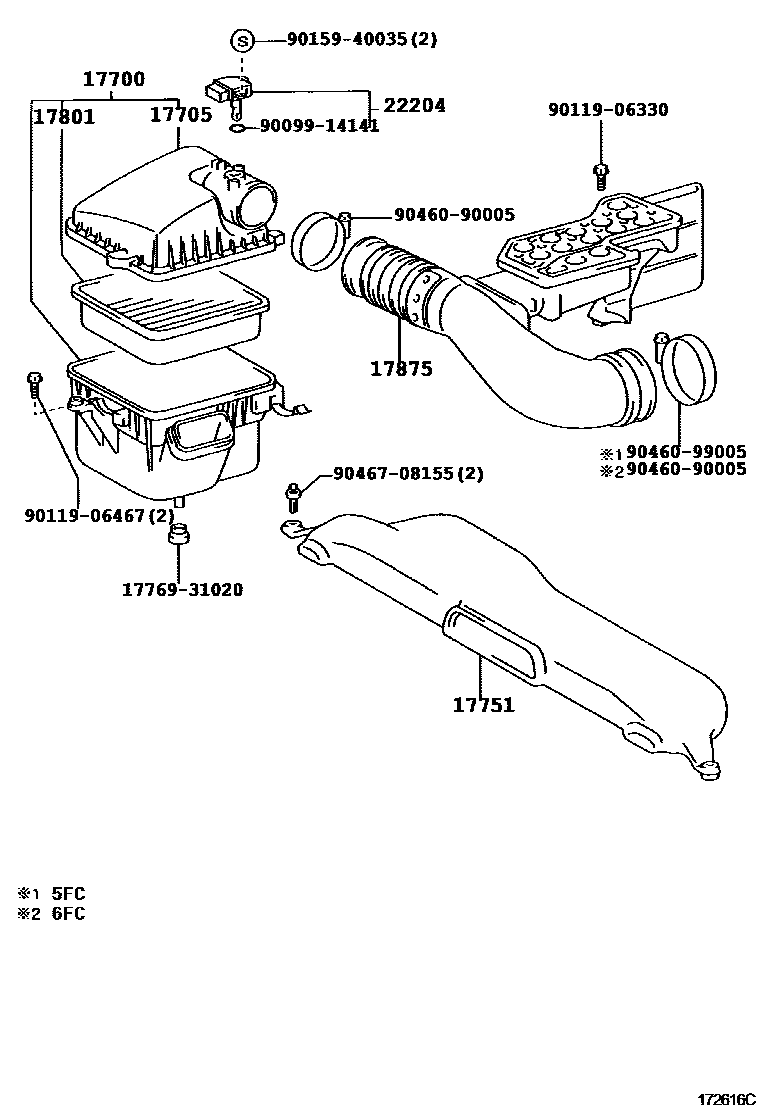

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-50220i3UZFE..UCF30200008-200307

17705CAP SUB-ASSY, AIR CLEANER

main17705-50130i3UZFE..UCF30200008-200307

17751INLET, AIR CLEANER, NO.1

main17750-50030i3UZFE..UCF30200008-200307

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-50030i3UZFE..UCF30200008-200307

17875PIPE, INTAKE AIR CONNECTOR

main17875-50240i3UZFE..UCF30200008-200307

main17875-50290i3UZFE..UCF30200307

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-22010i3UZFE..UCF30200008-200307

1776931020SUPPORT, AIR CLEANER

main17769-31020

9009914141

main90099-14141

9011906330

main90119-06330

9011906467

main90119-06467

9015940035

main90159-40035

9046090005

main90460-90005

9046099005

main90460-99005

9046708155

main90467-08155

14 parts on this diagram · 1 diagram in section
