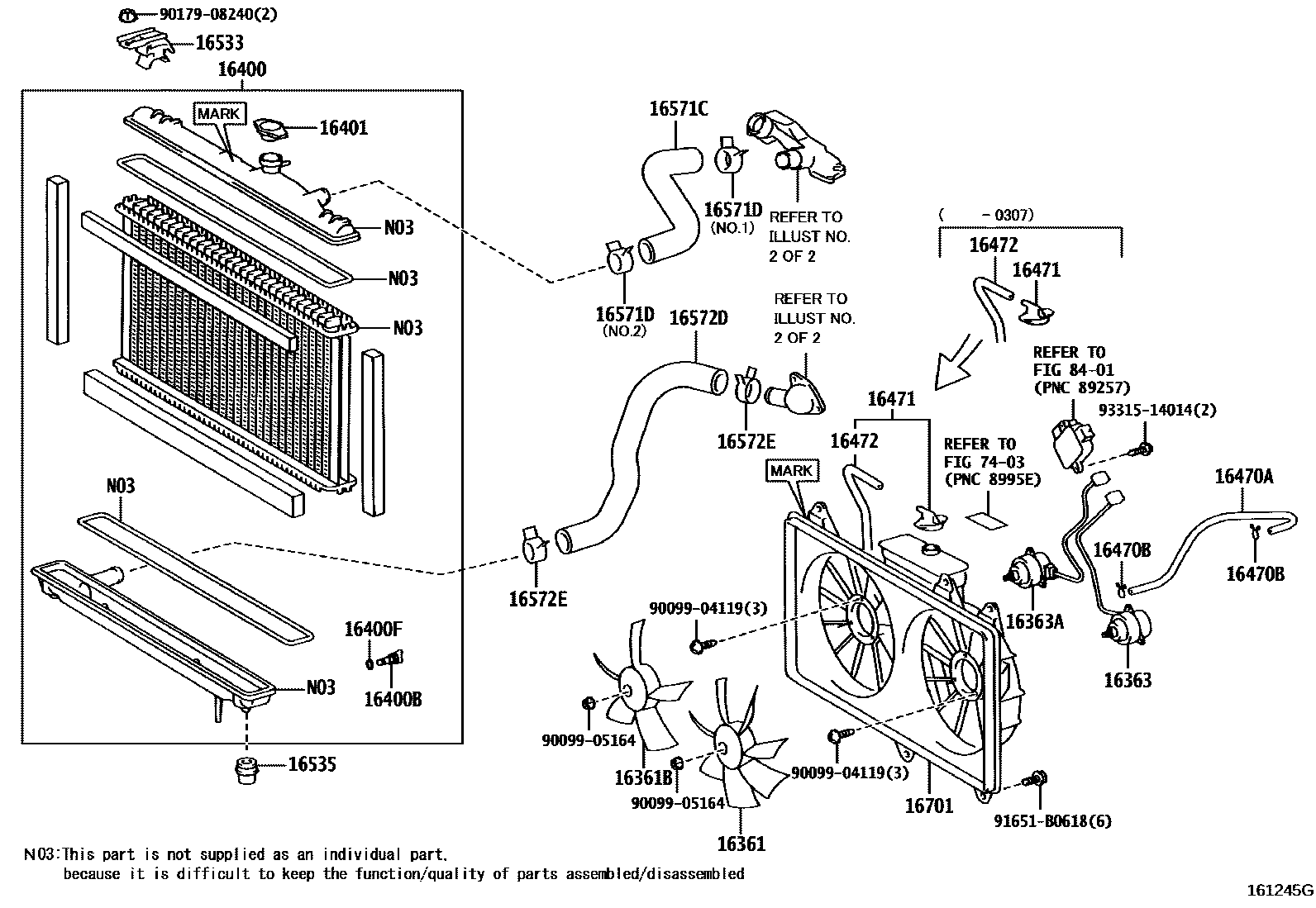

RADIATOR & WATER OUTLET
16361FAN
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16361BFAN, NO.2
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16363MOTOR, COOLING FAN
MARK OF FAN SHROUD=2 OR 4
MARK OF FAN SHROUD=3
16363AMOTOR, COOLING FAN, NO.2
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16400RADIATOR ASSY
TYPE A:REFER TO ILLUSTRATION & MARK = 5023
sub16400-50231
MARK 5023;TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION & MARK = 5024
sub16400-50241
TYPE B:REFER TO ILLUSTRATION & MARK = 5024
sub16400-50251
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
HONG KONG OR SINGAPORE OR THAILAND SPEC
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA OR KOREA SPEC
CHINA OR SOUTH AMERICA OR ISRAEL OR FORMOSA SPEC
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
TYPE B
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
NO.1
NO.2
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1 & NO.2
NO.1
NO.1 & NO.2
NO.1 & NO.2
16572DHOSE, RADIATOR, NO.2
16701SHROUD SUB-ASSY, FAN
MARK 2
MARK 2,TYPE A
MARK 3,TYPE B
MARK 4,TYPE B
MARK 4
7403
8401
9009904119
main90099-04119
9009905164
main90099-05164
9017908240
main90179-08240
91651B0618
main91651-B0618
9331514014
main93315-14014
27 parts on this diagram · 7 diagrams in section
