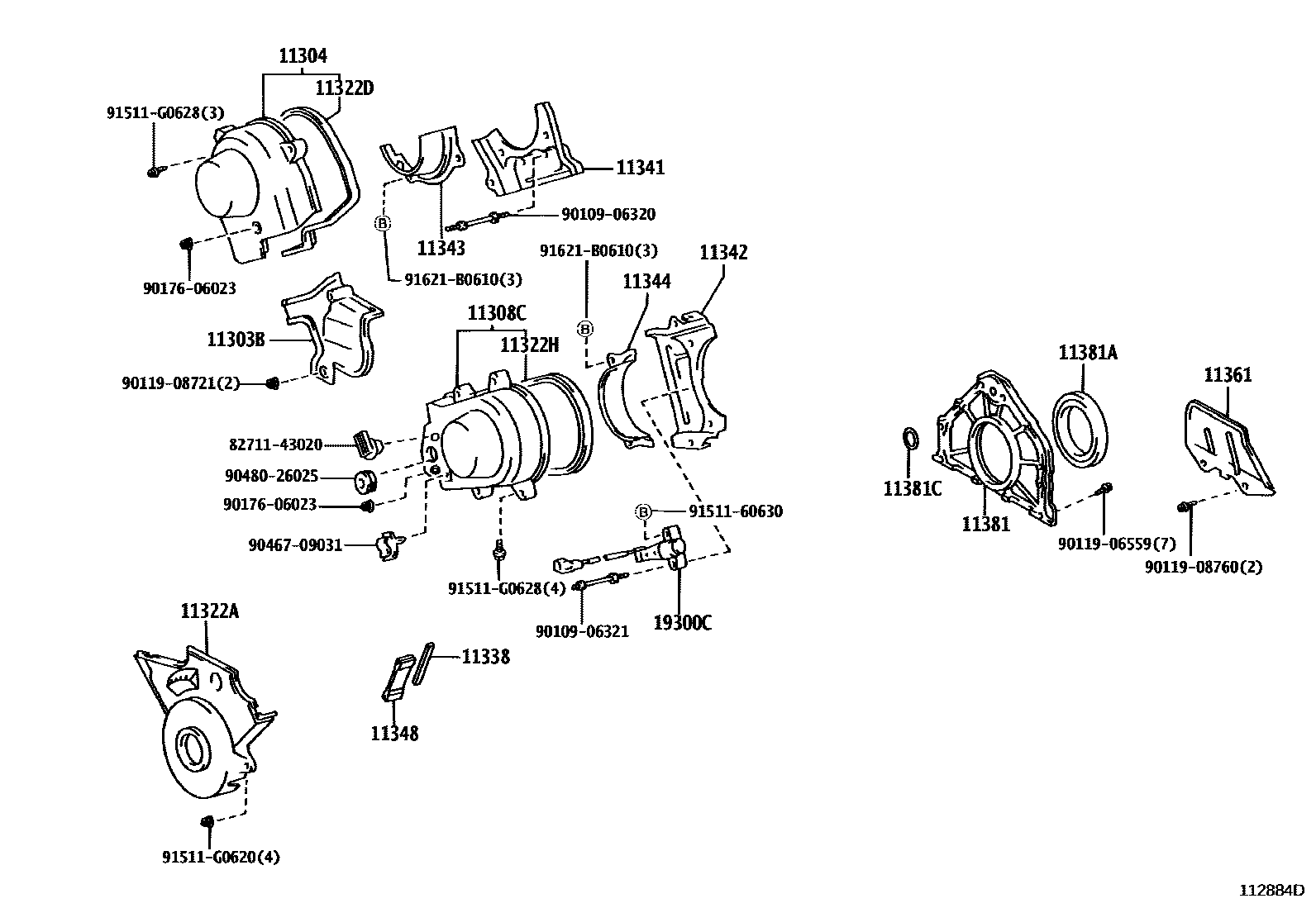

TIMING GEAR COVER & REAR END PLATE

11303BCOVER SUB-ASSY, TIMING BELT, NO.2

main11303-50030i3UZFE..UCF30200008-200307

11304COVER, TIMING CHAIN OR BELT, NO.2

main11304-50030i3UZFE..UCF30200008-200307

11308CCOVER SUB-ASSY, TIMING BELT, NO.3 LH

main11308-50040i3UZFE..UCF30200008-200307

11322ACOVER, TIMING BELT, NO.1

main11302-50040i3UZFE..UCF30200008-200307

11322DGASKET, TIMING BELT COVER, NO.1

main11328-50040i3UZFE..UCF30200008-200307

11322HGASKET, TIMING BELT COVER, NO.3

main11319-50030i3UZFE..UCF30200008-200307

11338GASKET, TIMING CHAIN COVER, NO.2

main11338-50010i3UZFE..UCF30200008-200307

11341PLATE, TIMING BELT, REAR RH

main11341-50020i3UZFE..UCF30200008-200307

11342PLATE, TIMING BELT, REAR LH

main11342-50020i3UZFE..UCF30200008-200406

sub11342-50021

main11342-50021i3UZFE..UCF30200406

11343PLATE, TIMING BELT, REAR RH NO.2

main11343-50020i3UZFE..UCF30200008-200307

11344PLATE, TIMING BELT, REAR LH NO.2

main11344-50020i3UZFE..UCF30200008-200307

11348SPACER, TIMING GEAR COVER

main11348-50011i3UZFE..UCF30200008-200307

11361COVER, FLYWHEEL HOUSING UNDER

main11361-50020i3UZFE..UCF30200008-200307

11381RETAINER, ENGINE REAR OIL SEAL

main11381-50021i3UZFE..UCF30200008-200307

11381ASEAL, ENGINE REAR OIL

main90311-95012i3UZFE..UCF30200008-200307

sub90311-95013

11381CRING, O(FOR OIL SEAL RETAINER)

main96721-24025i3UZFE..UCF30200008-200307

19300CSENSOR ASSY, CAM POSITION

main19300-50020i3UZFE..UCF30200008-200307

8271143020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-43020

9010906320

main90109-06320

9010906321

main90109-06321

9011906559

main90119-06559

9011908721

main90119-08721

9011908760

main90119-08760

9017606023

main90176-06023

9046709031

main90467-09031

9048026025

main90480-26025

9151160630

main91511-60630

91511G0620

main91511-G0620

91511G0628

main91511-G0628

91621B0610

main91621-B0610

30 parts on this diagram · 1 diagram in section
