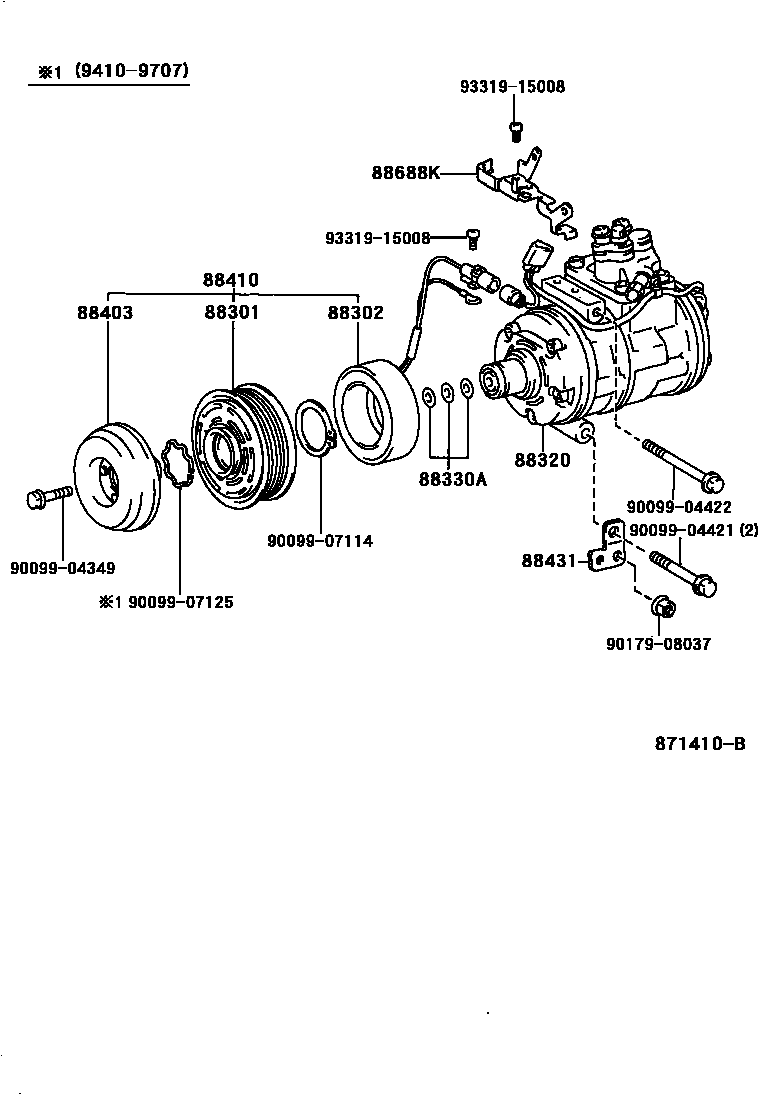

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-50020iUCF20199410-199804

sub88412-60070

main88412-60070iUCF20199804

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-3A030iUCF20199410

88320COMPRESSOR ASSY, COOLER

main88320-50060iUCF20..ARL,EUR,GEN199410-199707

sub88320-50061

main88320-50070iUCF20..V199410-199707

sub88320-50071

main88320-50080iUCF20..ARL,EUR,GEN199707

sub88320-50081

main88320-50090iUCF20..V199707

sub88320-50H92

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iUCF20199410

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-50010iUCF20199410-199505

sub88403-50020

main88403-50020iUCF20199410

88410CLUTCH ASSY, MAGNET

main88410-50100iUCF20199410

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88433-50010iUCF20199410

88688KBRACKET, COOLER COMPRESSOR

main88688-3A570iUCF20199612

main88688-50210iUCF20..V199410-199612

9009904349

main90099-04349

9009904421

main90099-04421

9009904422

main90099-04422

9009907114

main90099-07114

9009907125

main90099-07125

9017908037

main90179-08037

9331915008

main93319-15008

15 parts on this diagram · 2 diagrams in section
