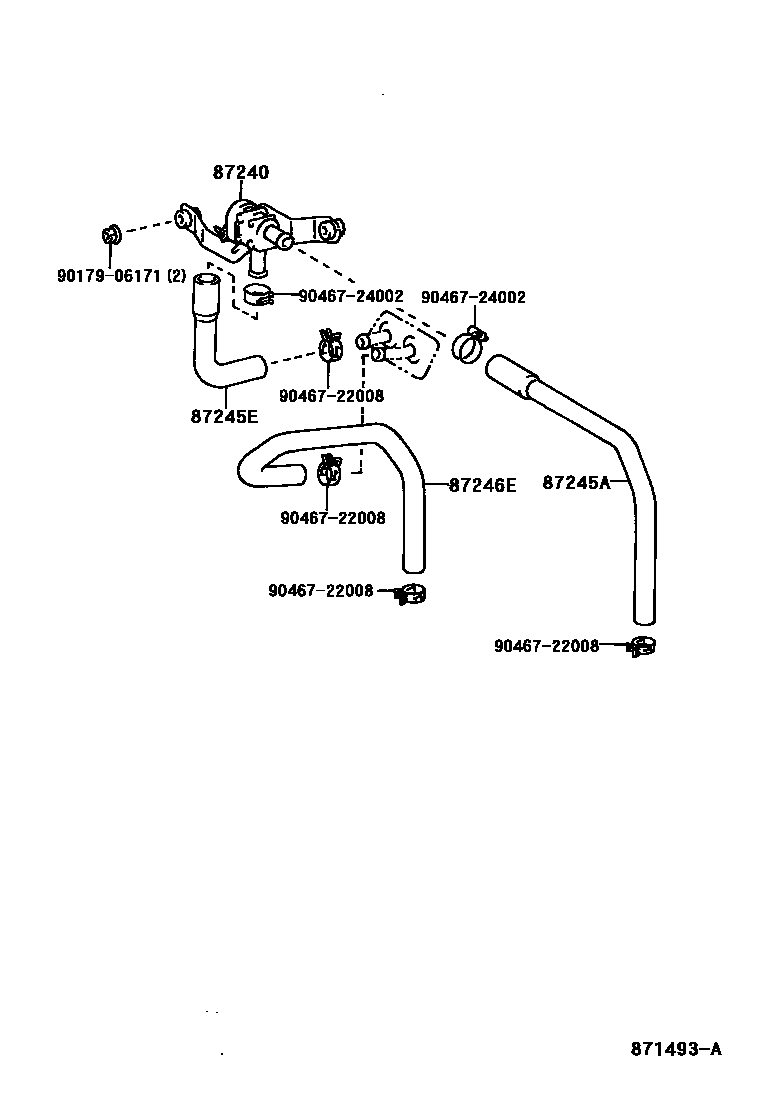

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1W(HOT WATER PANEL HEATER)

87240VALVE ASSY, HEATER WATER

main87240-50050iUCF20..LHD199410-199707

main87240-50060iUCF20..LHD..EUR199410-199707

W(HOT WATER PANEL HEATER)

main87240-50070iUCF20..RHD199410-199707

main87240-50090iUCF20..LHD199707

main87240-50100iUCF20..LHD..EUR199707

W(HOT WATER PANEL HEATER)

main87240-50110iUCF20..RHD199707

87245AHOSE, HEATER WATER, INLET A

main87245-50130iUCF20..LHD199410-199707

main87245-50150iUCF20..RHD199410-199707

main87245-50290iUCF20..LHD199707

main87245-50310iUCF20..RHD199707

87245EHOSE, HEATER WATER, INLET E

main87245-50210iUCF20199410-199707

main87245-50220iUCF20..LHD..EUR199410-199707

W(HOT WATER PANEL HEATER)

main87245-50270iUCF20199707

main87245-50280iUCF20..LHD..EUR199707

W(HOT WATER PANEL HEATER)

87246EHOSE, HEATER WATER, OUTLET E

main87245-50140iUCF20..LHD199410-199707

main87245-50160iUCF20..RHD199410-199707

main87245-50230iUCF20..LHD..EUR199410-199707

W(HOT WATER PANEL HEATER)

main87245-50300iUCF20..LHD199707

main87245-50320iUCF20..RHD199707

9017906171

main90179-06171

9046722008

main90467-22008

9046724002

main90467-24002

7 parts on this diagram · 3 diagrams in section
