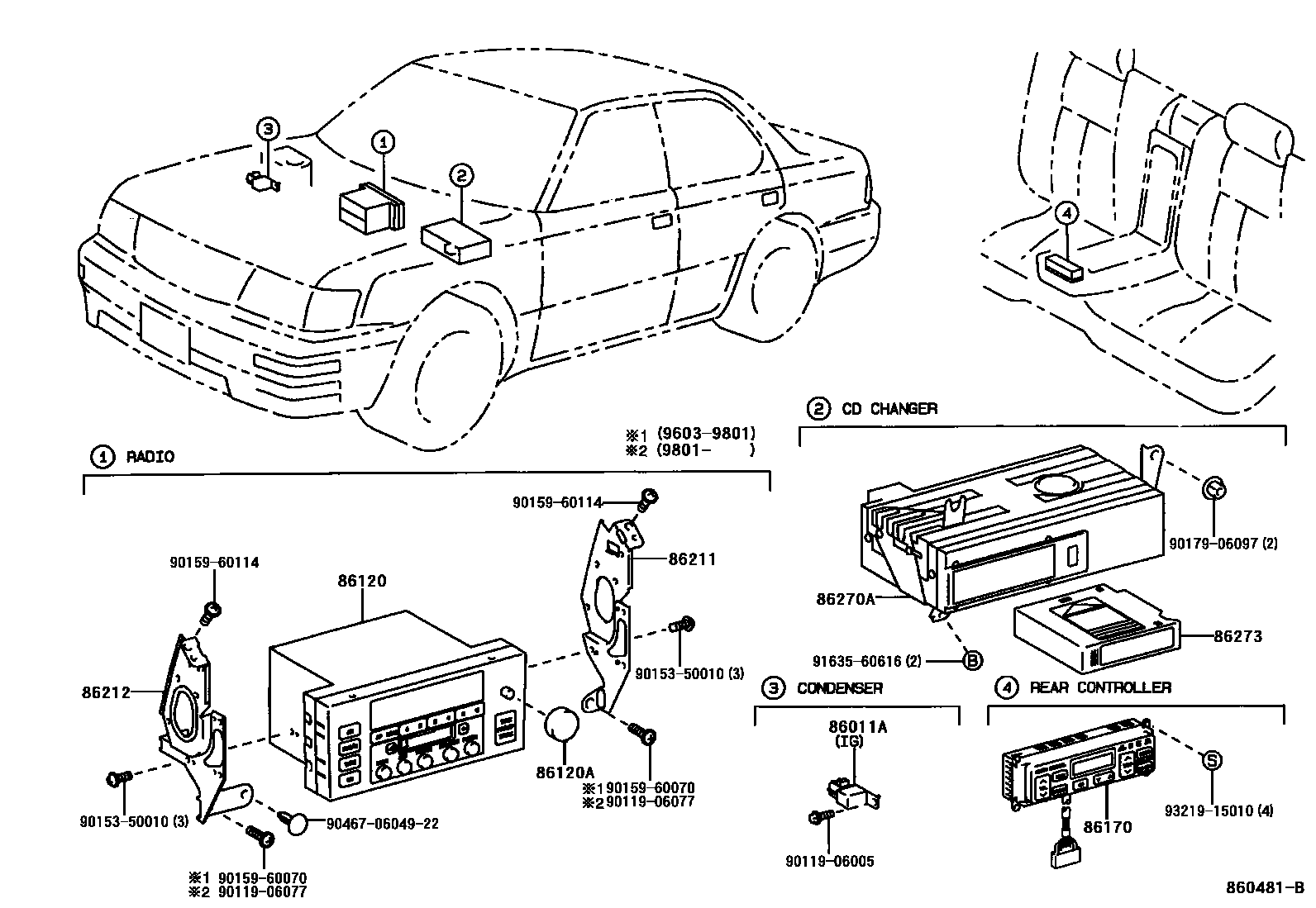

RADIO RECEIVER & AMPLIFIER & CONDENSER
86011ACONDENSER, RADIO SETTING
NO.1
NO.2
NO.3
86120RECEIVER ASSY, RADIO
sub86120-50381
sub86120-50391
sub86120-50401
sub86120-50402
sub86120-50411
sub86120-50412
sub86120-50421
sub86120-50422
LATIN AMERICA SPEC
BRAZIL SPEC
LATIN AMERICA SPEC
W(ELECTRO MULTI VISION)
UNITED KINGDOM SPEC & W(ELECTRO MULTI VISION)
sub86120-50561
W(ELECTRO MULTI VISION)
86120AKNOB, RADIO RECEIVER SWITCH
LATIN AMERICA SPEC
LATIN AMERICA SPEC
86170SWITCH AND VOLUME ASSY, RADIO
86211BRACKET, RADIO, NO.1
86212BRACKET, RADIO, NO.2
86273MAGAZINE, DISC PLAYER
9011906005
main90119-06005
9011906077
main90119-06077
9015350010
main90153-50010
9015960070
main90159-60070
9015960114
main90159-60114
9017906097
main90179-06097
904670604922
main90467-0604922
9163560616
main91635-60616
9321915010
main93219-15010
17 parts on this diagram · 3 diagrams in section
