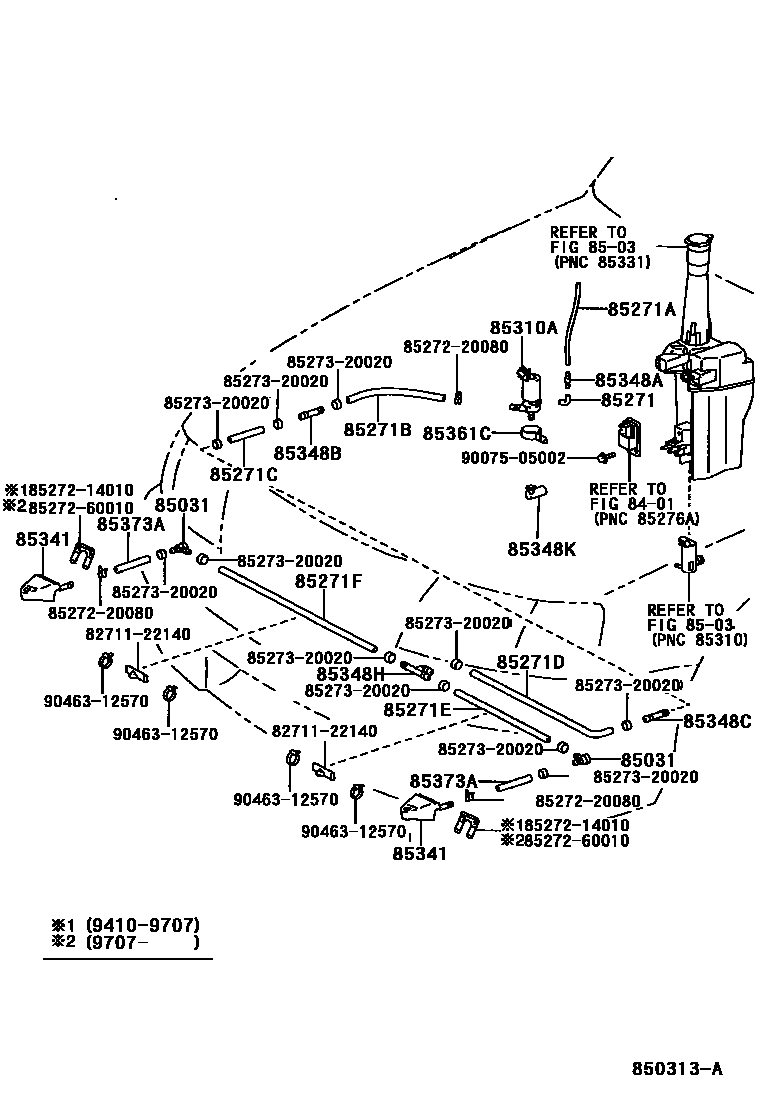

HEADLAMP CLEANER
8401
8503
85031VALVE, HEADLAMP CLEANER WASHER HOSE
85271HOSE, HEADLAMP CLEANER, NO.1
L=15
85271AHOSE, HEADLAMP CLEANER, NO.2
L=215
L=1100(*H,L=95)
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
L=90
85271DHOSE, HEADLAMP CLEANER, NO.5
85271EHOSE, HEADLAMP CLEANER, NO.6
*H,L=500
L=640(*H,L=392)
85271FHOSE, HEADLAMP CLEANER, NO.7
L=610
L=735
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85341NOZZLE, HEADLAMP CLEANER WASHER
SU.WHITE PM,051
SILVER ME,199
BLACK,202
BEIGE ME.,4M9
GRAYISH BROWN ME.,4N1
GRAYISH GREEN M.M.,6N0
DK.GREEN MC.P.I.O.,6N9
DK.GREEN M.M.,6P3
LT.GREEN ME.OP.,6P7
DK.BLUE MC.,8L1
DK.ROSE MC.,929
SU.WHITE PM,051
WHITE PE ARL CS.,062
SILVER ME,199
SILVER ME.,1C0
BLACK,202
ROSE RED MC.,3M9
BEIGE ME.,4M9
COPPER BROWN M.M.MS.,4P1
BEIGE ME.,4P7
LT.GREEN ME.OP.,6P7
DK. GREEN MC.,6Q7
DK.BLUE MC.,8L4
AMETHYST ME.,941
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85361CBRACKET, WASHER
85373AHOSE, HEADLAMP CLEANER WASHER (FROM JOINT TO NOZZLE)
L=50
8271122140WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22140
8527214010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-14010
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527260010CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-60010
8527320020CABLE SUB-ASSY, HEADLAMP CLEANER, LH
main85273-20020
9007505002
main90075-05002
9046312570
main90463-12570
26 parts on this diagram · 1 diagram in section
