WIRELESS DOOR LOCK

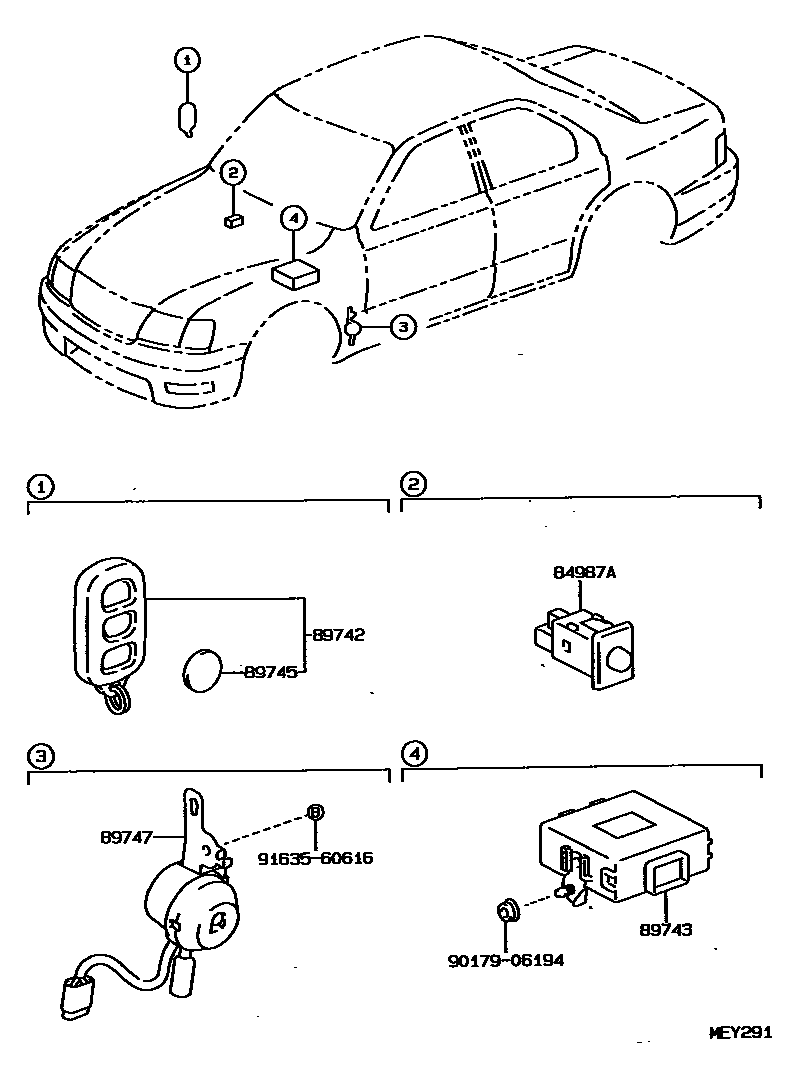

Parts diagram
84987ASWITCH, KEYLESS ENTRY CANCEL
main84987-50040i199410
89742TRANSMITTER, DOOR CONTROL
main89742-50520i199410-199508
sub89742-50521
main89742-50530i199410-199508
sub89742-50521
main89742-50540i199410-199505
*FRG
sub89742-50541
main89742-50541i199505-199508
*FRG
sub89742-50521
main89742-50550i199410-199508
DENMARK SPEC
sub89742-50521
main89742-50560i199410-199508
FRANCE SPEC
sub89742-50521
main89742-50570i199410-199508
ITALY SPEC
sub89742-50521
main89742-50580i199410-199608
main89742-50600i199410-199707
main89742-50610i199410-199508
AUSTRIA,NORWAY,SWEDEN SPEC
sub89742-50521
main89742-50620i199410-199707
main89742-50630i199508-199707
sub89742-50631
main89742-50640i199508-199707
sub89742-50631
main89742-50650i199508-199707
*FRG
sub89742-50631
main89742-50660i199508-199707
DENMARK SPEC
sub89742-50631
main89742-50670i199508-199707
FRANCE SPEC
sub89742-50631
main89742-50680i199508-199707
ITALY SPEC
sub89742-50631
main89742-50690i199508-199707
AUSTRIA,NORWAY,SWEDEN SPEC
sub89742-50631
89743RECEIVER, DOOR CONTROL
main89741-50140i199410-199608
sub89741-50141
main89741-50150i199410-199508
sub89741-50151
main89741-50160i199410-199608
sub89741-50161
main89741-50161i199608-199707
main89741-50180i199410-199508
DENMARK SPEC
sub89741-50141
main89741-50190i199410-199608
sub89741-50191
main89741-50191i199608-199707
main89741-50200i199508-199608
sub89741-50201
main89741-50201i199608-199707
sub89741-50202
main89741-50210i199508-199608
sub89741-50211
main89741-50211i199608-199707
sub89741-50212
main89741-50270i199608-199707
89745BATTERY, TRANSMITTER
main89745-40010i199707
main89745-50010i199410-199707
sub89745-71010
89747BUZZER, WIRELESS DOOR LOCK
main89747-50030i199410-199707
main89747-50040i199707
9017906194
main90179-06194
9163560616
main91635-60616

7 parts on this diagram · 2 diagrams in section
