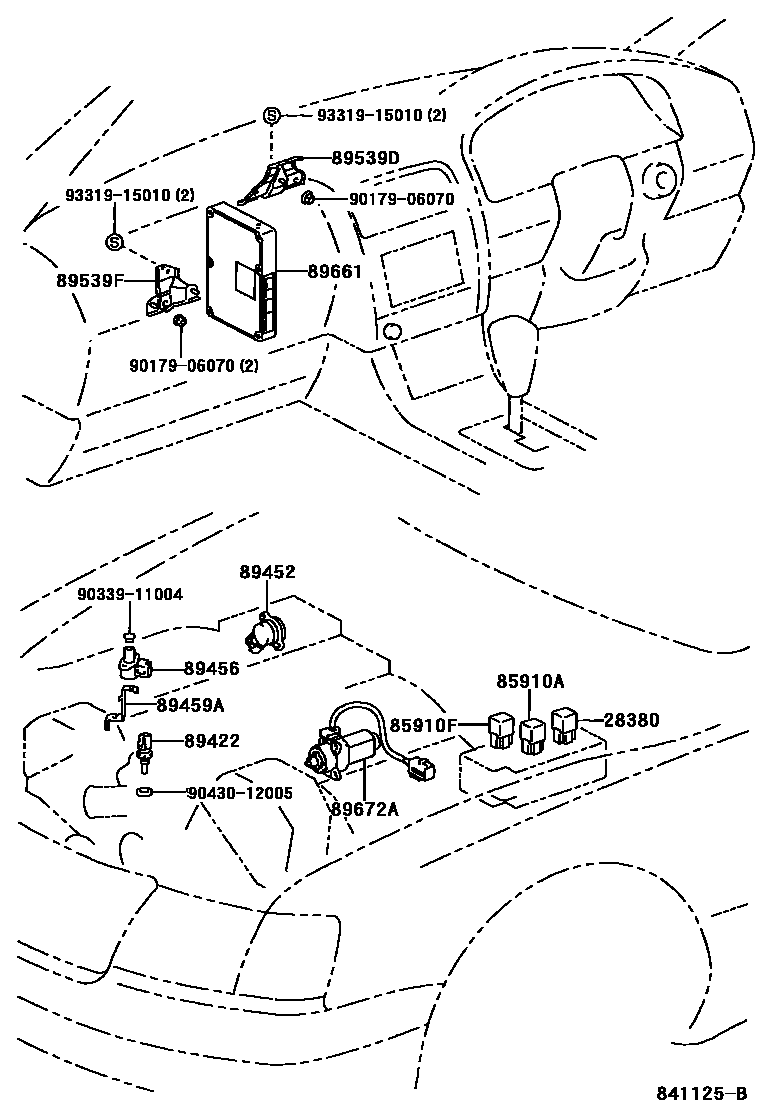

ELECTRONIC FUEL INJECTION SYSTEM
28380RELAY ASSY, FUEL PUMP
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910FRELAY, COMPUTER (FOR EFI)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
DENSO
TOYOTA
89456RESISTOR, VARIABLE
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
89459ABRACKET, VARIABLE RESISTOR
SOUTH AFRICA SPEC
89539DBRACKET, COMPUTER
89539FBRACKET, COMPUTER
89661COMPUTER, ENGINE CONTROL
sub89661-50351
SINGAPORE,THAILAND SPEC
sub89661-50351
HONG KONG SPEC
SINGAPORE,THAILAND SPEC
sub89661-50391
SOUTH AFRICA SPEC
SINGAPORE OR THAILAND SPEC
HONG KONG SPEC
SOUTH AFRICA SPEC
CHINA SPEC
*FRG
89672AMOTOR, THROTTLE CONTROL
sub89672-47010
9017906070
main90179-06070
9033911004
main90339-11004
9043012005
main90430-12005
9331915010
main93319-15010
15 parts on this diagram · 1 diagram in section
