SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL & CONSOLE 0004 1COWL & CONSOLE 0005 1INSTRUMENT PANEL & DOOR 0006 1INSTRUMENT PANEL & DOOR 0007 1COMBINATION SWITCH 0008 1COMBINATION SWITCH 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1SEAT 0012 1BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16050iUCF20¥3,720199410-199411

sub83420-20040¥3,720

main83420-20040iUCF20¥3,720199411-199707

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iUCF20¥1,300199410-199411

sub83530-30090¥2,100

main83530-28020iUCF20¥1,970199801-200008

main83530-30090iUCF20¥2,100199411-199801

sub83530-60020¥1,970

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUCF20¥10,100199410

89465SENSOR, OXYGEN

main89465-50060iUCF20..ARL,EUR¥11,200199410

FRONT

sub89465-50150¥11,200

main89465-50060iUCF20..GEN¥11,200199410

HONG KONG SPEC,FRONT

sub89465-50150¥11,200

main89465-50060iUCF20..V¥11,200199908

CHINA SPEC,FRONT

sub89465-50150¥11,200

main89465-50070iUCF20..ARL,EUR¥11,200199410-199707

REAR

main89465-50070iUCF20..ARL,EUR¥11,200199410-199707

HONG KONG SPEC,REAR

main89465-50100iUCF20..ARL,EUR¥11,200199707

HONG KONG SPEC,REAR

main89465-50100iUCF20..GEN¥11,200199707

REAR

main89465-50100iUCF20..V¥11,200199908

CHINA SPEC,REAR

89491SENSOR, ENGINE OIL LEVEL

main89491-30050iUCF20¥11,500199707

main89491-50020iUCF20¥11,500199410-199707

89615SENSOR, KNOCK CONTROL

main89615-12040iUCF20¥16,900199707

main89615-50010iUCF20¥16,800199410-199707

9043008252

main90430-08252¥240

9043027001

main90430-27001¥140

9095001060

main90950-01060¥200

9165140830

main91651-40830¥90

9165160610

main91651-60610¥100

91651B0616

main91651-B0616¥80

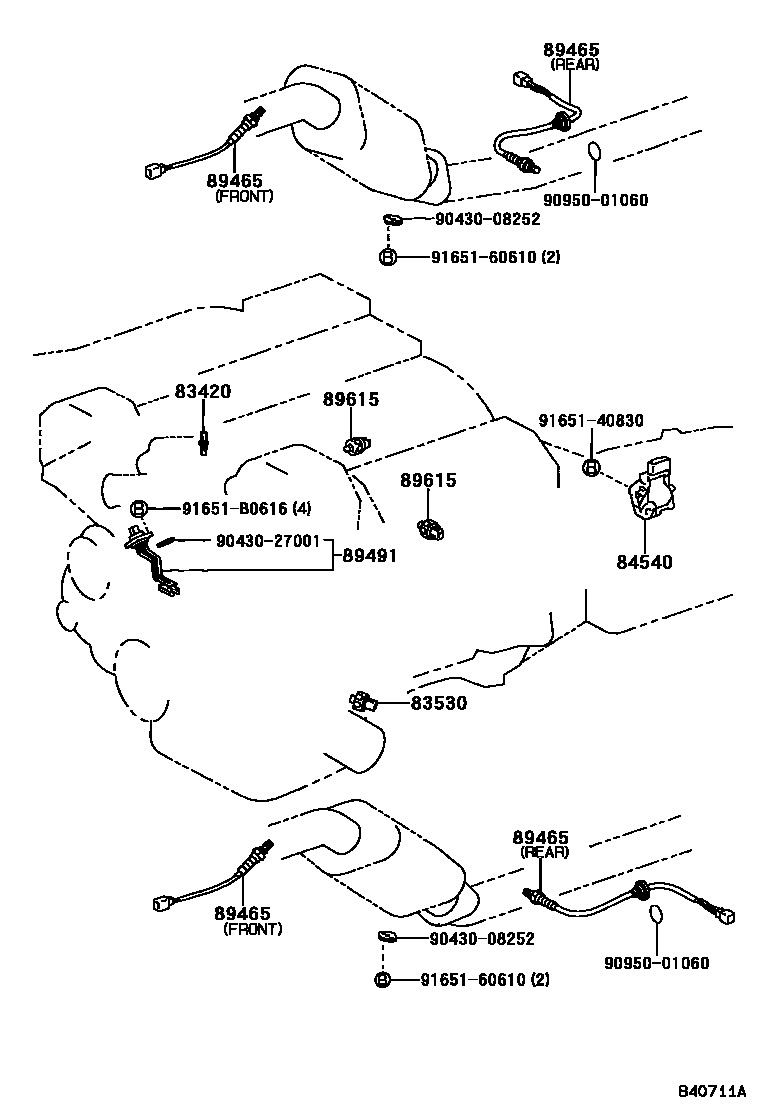

12 parts on this diagram · 12 diagrams in section
