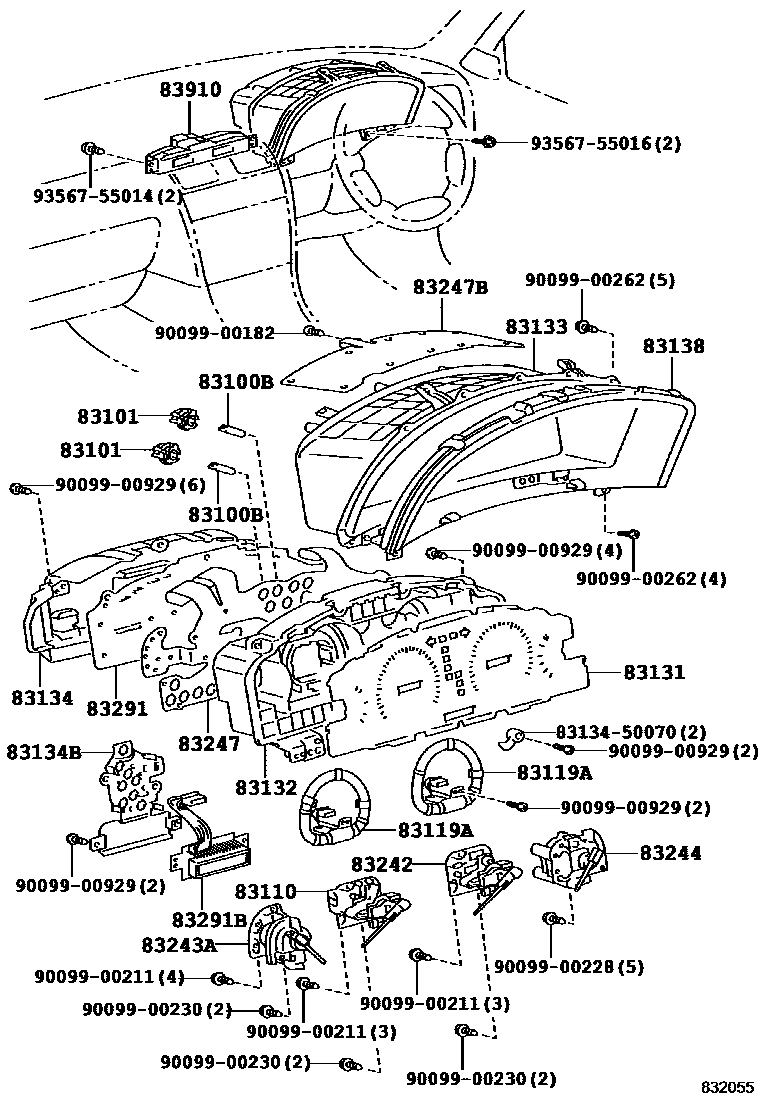

METER
83100BBULB, COMBINATION METER, NO.1
12V 1.4W,W(SOCKET)
14V 2.0W,W/O SOCKET
12V 1.2W W/O SOCKET,SOUTH AFRICA SPEC
83101SOCKET SUB-ASSY, COMBINATION METER BULB
BULB:12V 1.4W
BULB:14V 2.0W
83110SPEEDOMETER ASSY
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
83119ATUBE,CATHODE
SPEEDOMETER SIDE
TACHOMETER SIDE
83131DIAL, METER, NO.1
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
W(TRACTION CONTROL)
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
83132CASE, COMBINATION METER
SOUTH AFRICA SPEC
83134COVER, COMBINATION METER, NO.1
83134BCOVER, COMBINATION METER, NO.2
83243AGAUGE SUB-ASSY, FUEL RECEIVER
83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER
83247PLATE, METER CIRCUIT
83247BPLATE, METER CIRCUIT, NO.2
83291COMPUTER, COMBINATION METER
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC
83291BCOMPUTER ASSY
83910CLOCK ASSY
8313450070COVER, COMBINATION METER, NO.1
main83134-50070
9009900182
main90099-00182
9009900211
main90099-00211
9009900228
main90099-00228
9009900230
main90099-00230
9009900262
main90099-00262
9009900929
main90099-00929
9356755014
main93567-55014
9356755016
main93567-55016
27 parts on this diagram · 5 diagrams in section
